MT01 Multimeter
MT01 Multimeter
Our JT-MT01 multimeter is an absolute must-have for every technology enthusiast and professional. Thanks to its versatility, it is your ideal companion for all electrical measurements:
From voltages and currents to resistances, diodes, capacitances and frequencies to temperatures. Experience absolute safety and convenient handling with the additional non-contact voltage measurement (NCV), which allows you to detect live wires without contact.
Specifications
Specifications
Special functions

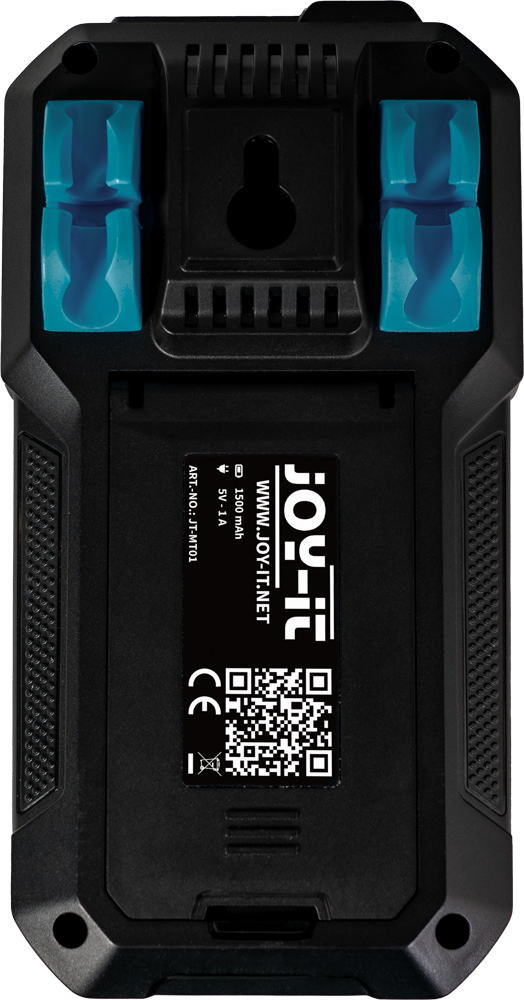

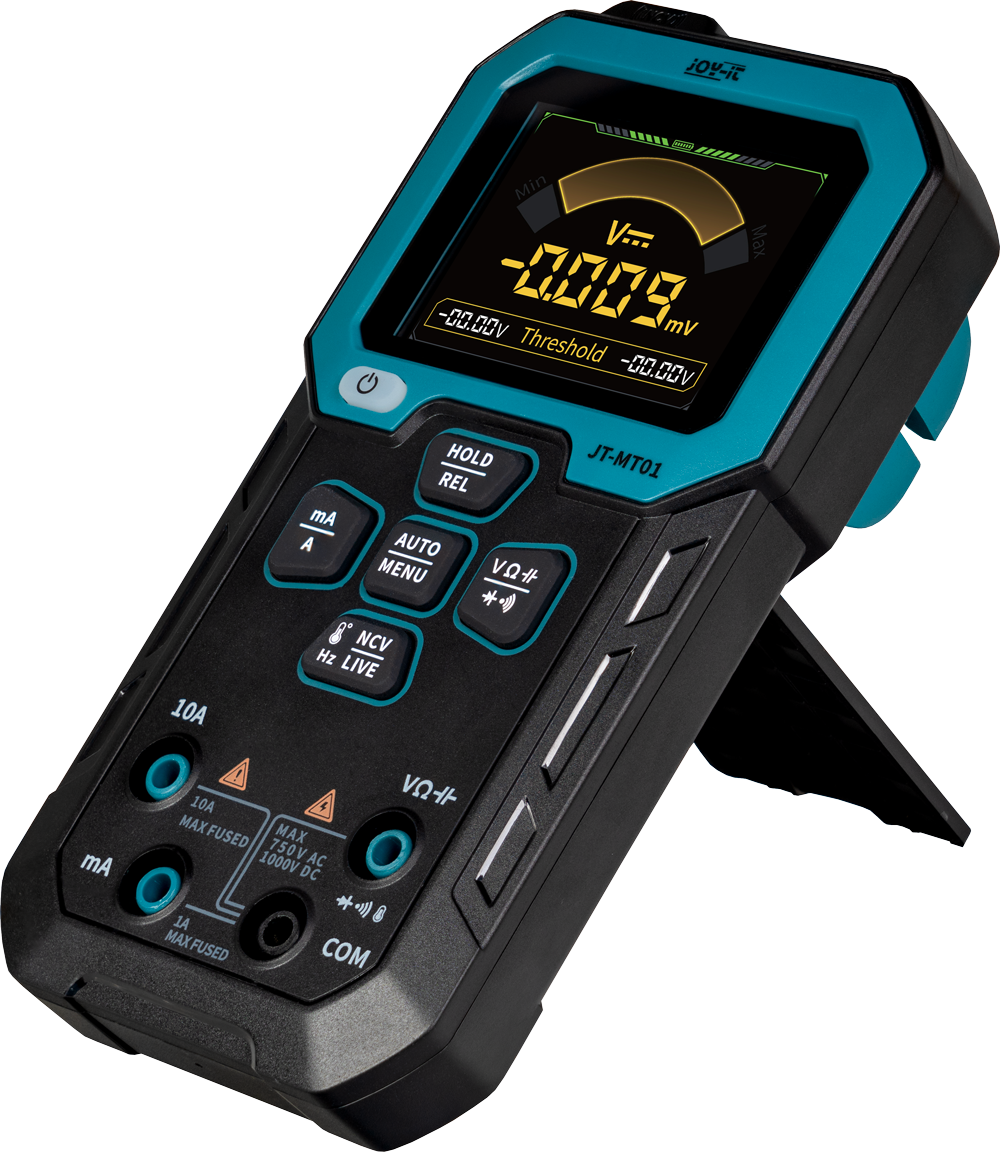

Measurement of voltages, currents, resistances, diodes, capacitances, frequencies and temperatures, Additional non-contact voltage (NCV) voltage measurement, Measurement of current-carrying lines, Storage of up to 8 data sets, 3 different measuring modes (normal, recording mode, monitoring mode), Integrated, foldable stand, Holder for measuring tips on the back
Included manual
In German, English and French language
Device language
German, English
Voltage meausring range
0 - 999,9 V (DC), 0 - 750 V (AC)
Measuring range current
0 - 9,999 A
Measuring range resistance
0 - 99,99 MΩ
Measuring range capacitance
0 - 99,99 mF
Measuring range capacitance
0 - 99 MHz
Measuring range temperature
Measuring device: -55 - 1300 °C Enclosed probe: -50 - 300 °C
More measurements
Diodes, continuity test, NCV, live wires
Voltage accuracy (DC)
±(0,5 % + 3 digits)
Voltage accuracy (AC)
±(1% + 3 digits)
Current accuracy (DC)
±(1,2% + 3 digits)
Current accuracy (AC)
±(1,5% + 3 digits)
Resistance accuracy
0 - 9,999 MΩ: ±(0,5% + 3 digits) > 9,999 MΩ: ±(1,5% + 3 digits)
Capacity accuracy
0 - 999,9 μF: ±(2,0% + 5 digits) > 9,999 mF: ±(5,0% + 20 digits)
Frequency accuracy
±(0,1% + 2 digits)
Temperature accuracy
±(2,5% + 5 digits)
Fuse in the power input
10 A, 1 A
Working temperature
0 - 40 ° C
Storage temperature
-20 - 60 ° C
Working humidity
< 75 %
Storage humidity
< 80 %
Battery capacity
1500 mAh (5 V - 1 A)

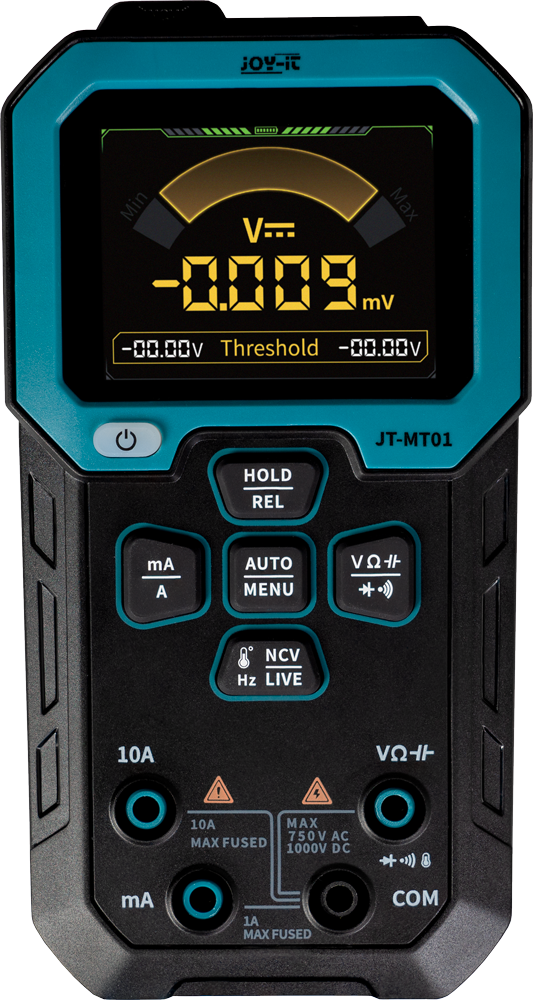

Display
2.4“ TFT display, 240 x 320 pixels
Dimensions
152 x 80 x 38 mm
Weight
178 g

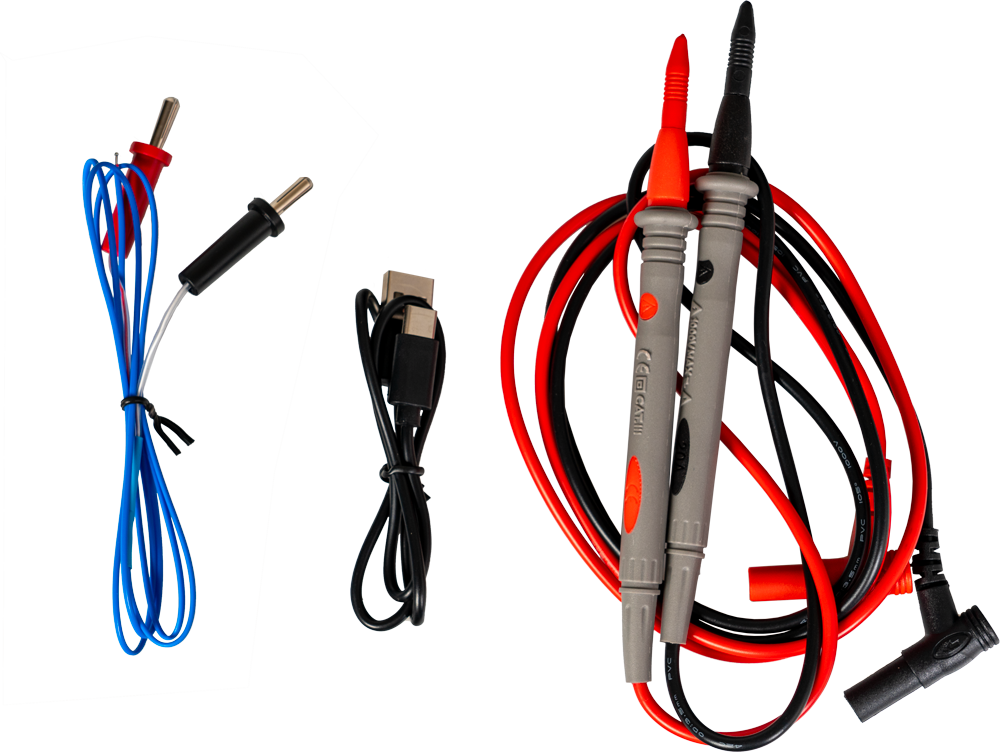

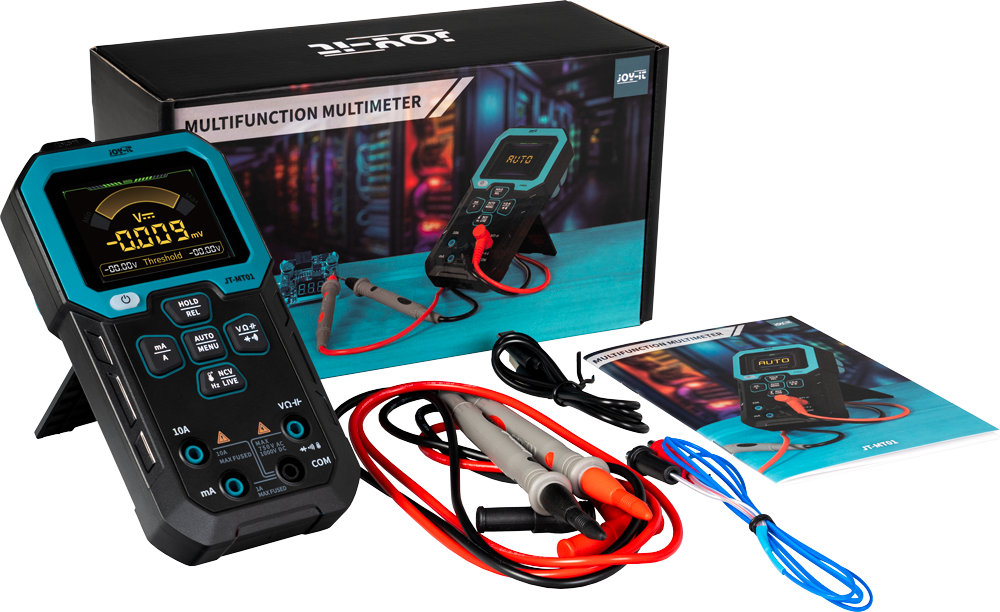

Items shipped
EAN
4250236826820
Article No.
JT-MT01
