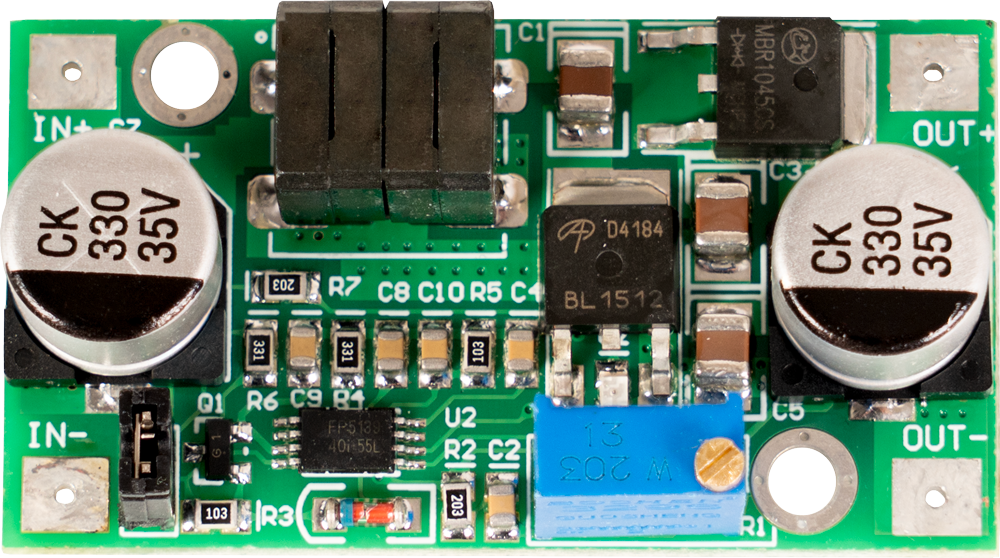

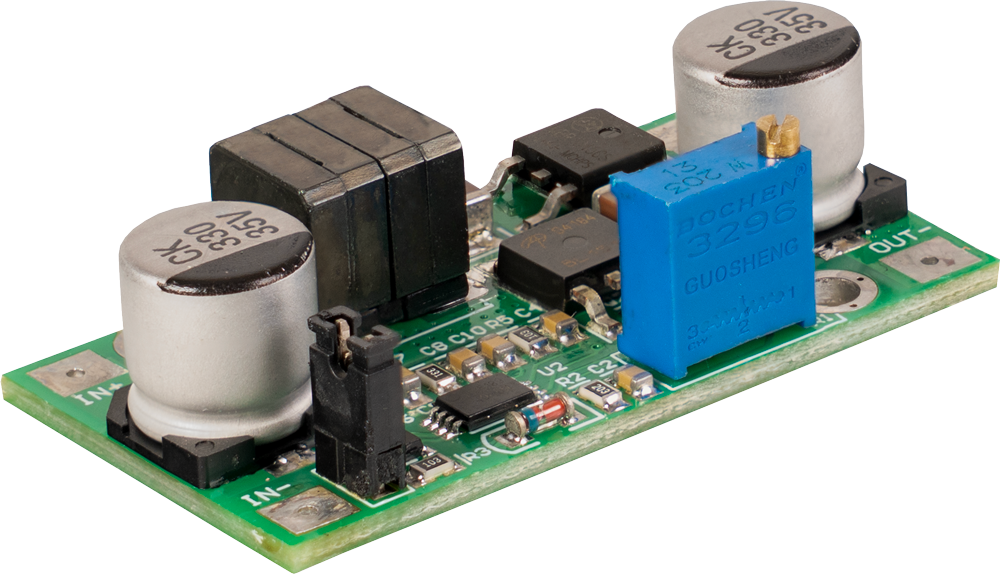

The SBC-BuckBoost02 is a compact and versatile DC-DC buck-boost converter that provides a stable output voltage which can be either higher or lower than the input voltage. With a wide input range of 5 – 25 V DC and an adjustable output voltage of 3 – 25 V DC, it is ideal for flexible power supply designs in embedded electronics, mobile devices, and battery applications.

Supporting 2 A maximum input current and delivering up to 30 W output power depending on input conditions, the module excels in both low- and mid-power DC systems. With conversion efficiencies of up to 89 %, the converter ensures strong performance with minimal heat generation, enhancing system runtime when used with batteries.

A jumper-controlled output enable function allows quick activation or deactivation of the output, making laboratory testing, prototyping, and integration safer and more convenient.

With its compact format (48 × 26 × 13 mm), lightweight design, and secure screw-terminal connections, the SBC-BuckBoost02 can be easily integrated into enclosures, PCB projects, or control modules.

Whether stepping up voltage to supply higher-voltage loads or stepping down from higher sources, the SBC-BuckBoost02 offers a reliable, efficient, and space-saving power conversion solution.
