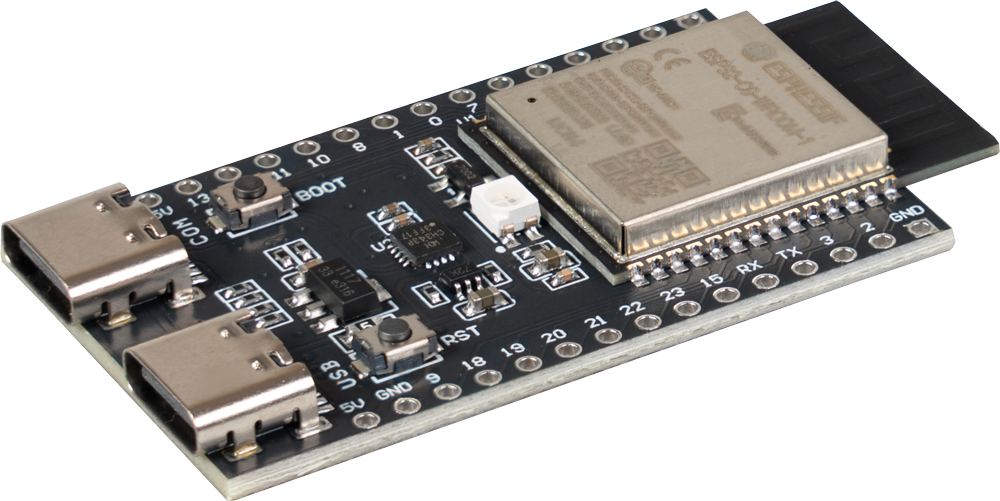

The ESP32-C6 Development Board is a compact and versatile wireless platform designed for modern IoT, smart home, and industrial connectivity applications. It is powered by a 32-bit RISC-V single-core microprocessor running at up to 160 MHz, delivering reliable performance while maintaining low power consumption for energyefficient designs.

With integrated 2.4 GHz Wi-Fi 6 (IEEE 802.11ax) as well as BTLE, Zigbee, and Thread, the ESP32-C6 enables seamless communication across a wide range of wireless ecosystems. This makes the board an excellent choice for interoperable devices, mesh networks, and Matter-ready applications.

The board supports flexible power options and can be supplied with 5 V via USB or the 5V pin, or alternatively with 3.3 V via the 3V pin, allowing easy integration into both development environments and custom hardware setups. Programming and debugging are handled conveniently through a USB Type-C interface, including USB-to-UART functionality.

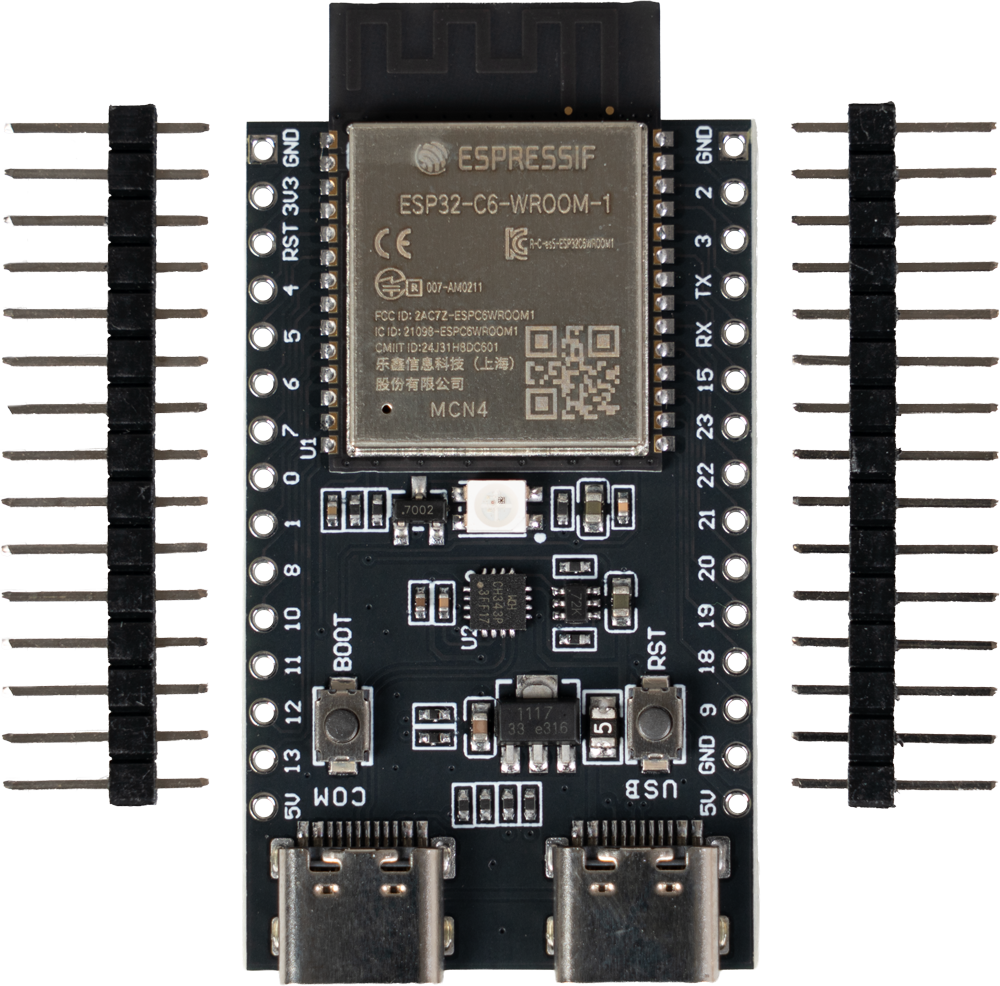

A total of 23 GPIO pins provides extensive connectivity for sensors, actuators, and external peripherals. Onboard features such as reset and boot buttons and an RGB LED simplify development, testing, and visual status indication. Thanks to its compact dimensions and standard 2.54 mm pin spacing, the ESP32-C6 development board is ideal for rapid prototyping and spaceconstrained embedded projects.

For detailed technical specifications and indepth information about the microprocessor and its internal features, please refer to the official Espressif ESP32-C6 datasheet.
