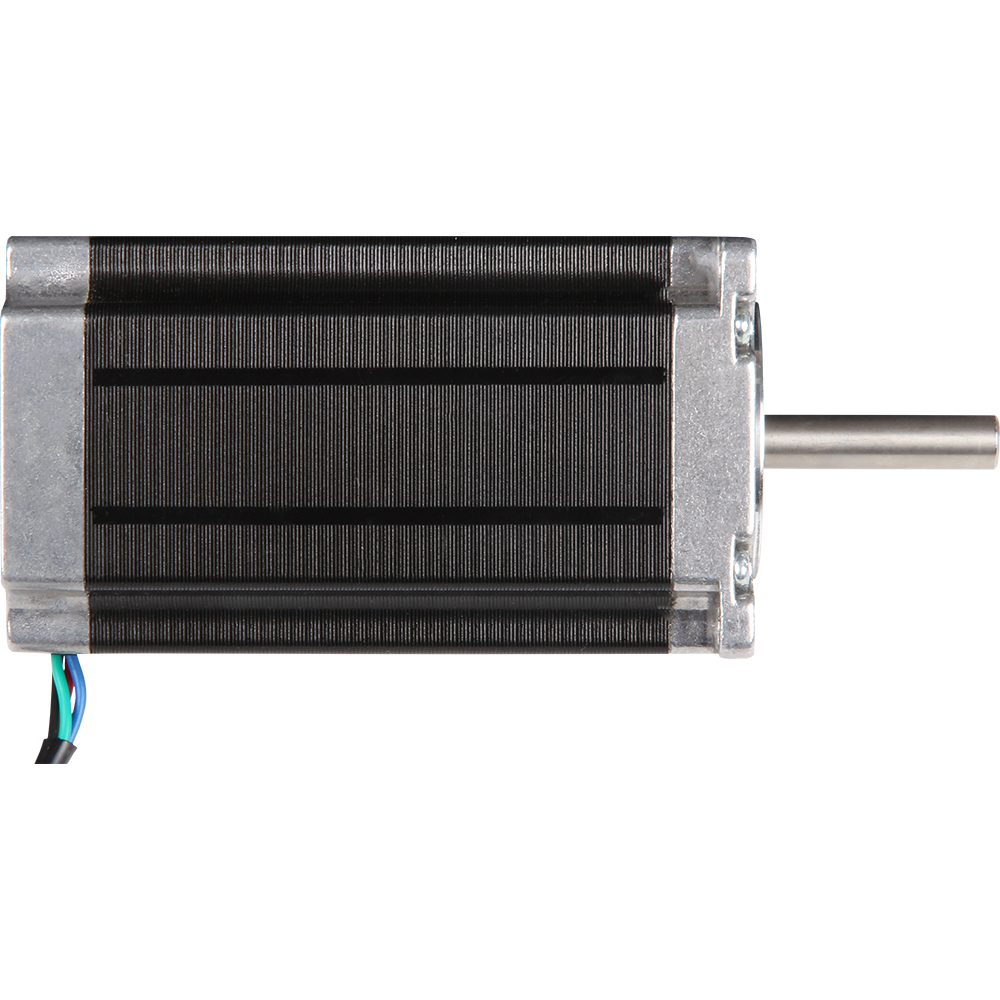

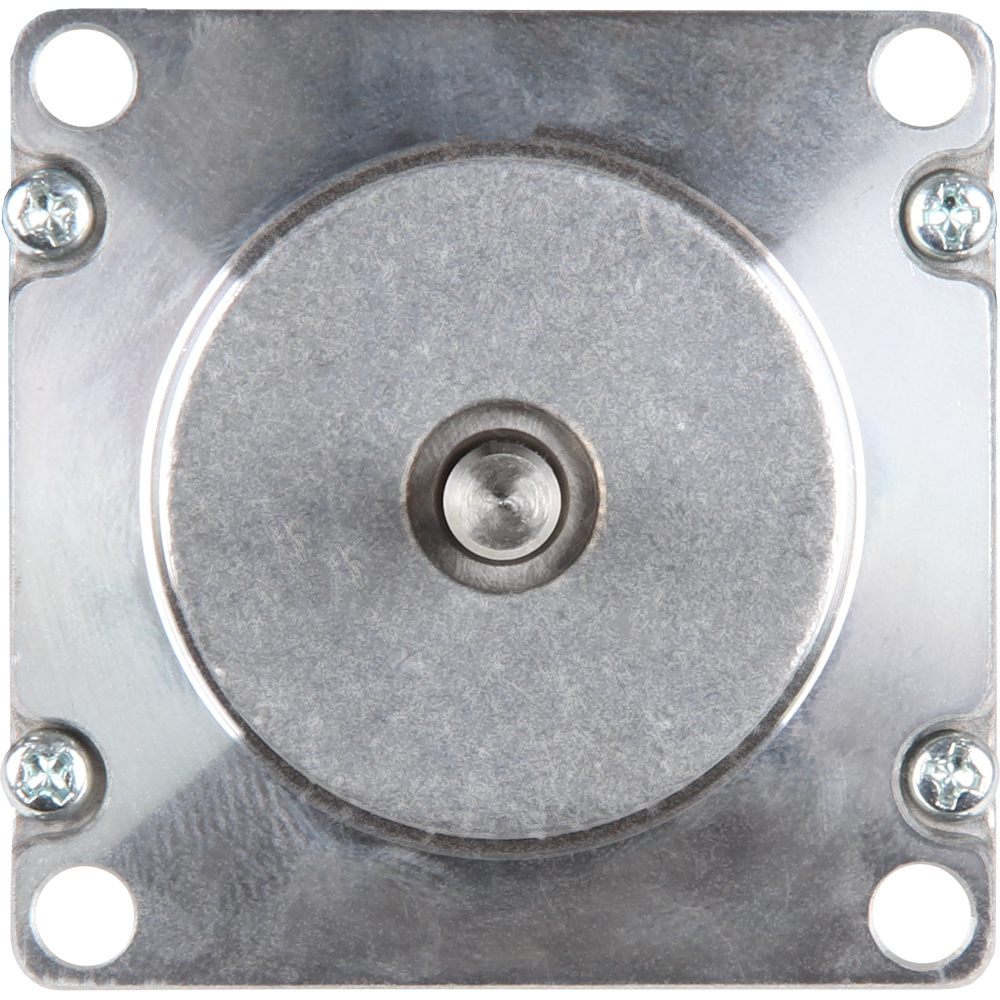

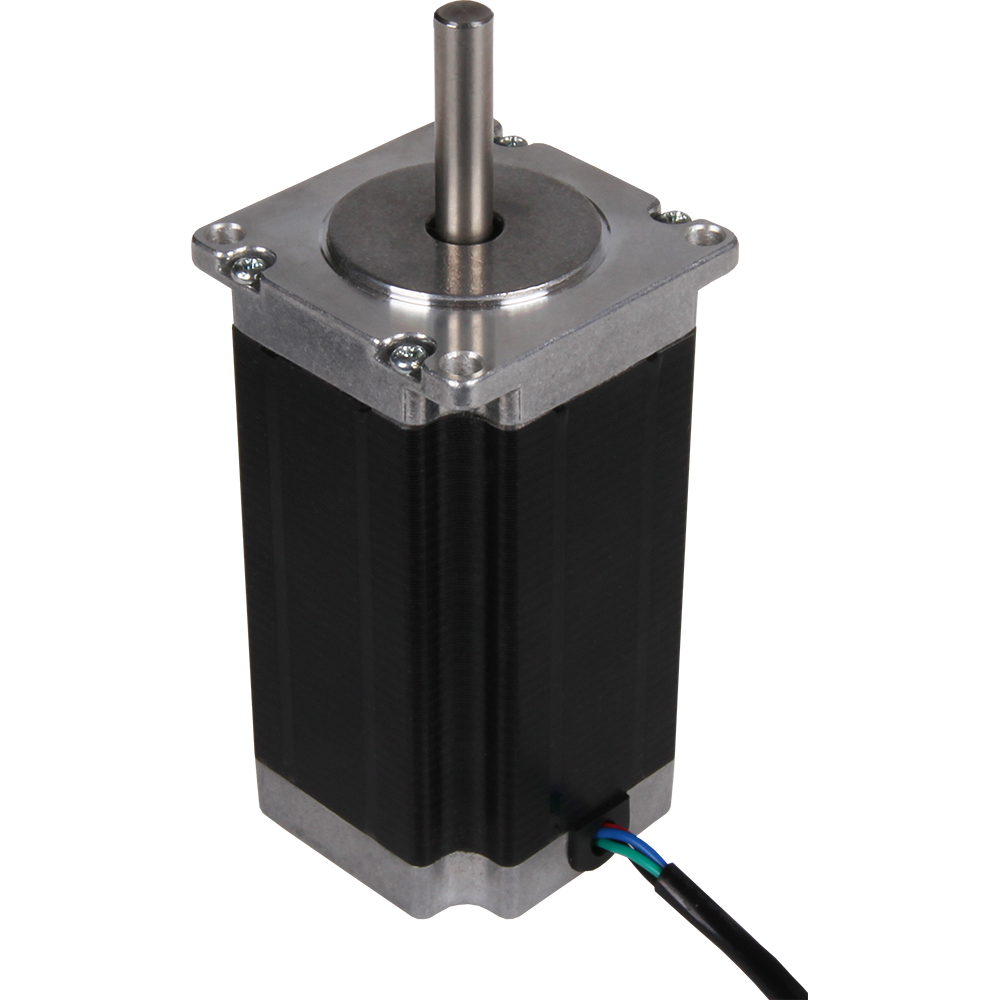

NEMA 23 Motor
NEMA 23 Motor
Dieser Schrittmotor eignet sich mit seiner großen Leistung optimal für Aufgaben in den Bereichen Automatisierung, CNC (z. B. Fräse, etc.) oder Robotik. Der hohe Haltemoment von 3 Nm zeichnet diesen Motor aus.
Spezifikationen
Spezifikationen
Spezifikation
57SHD4934-34B
Wellenmaße
Ø 7,5 x 32 mm (Einzelwelle)
Anschluss
4-adriges Kabel
Schritte pro Umdrehung
200
Haltemoment
3 Nm
Nennspannung
8.4 V
Nennstrom
3 A
Schrittwinkel
1,8°
Anzahl Phasen
2
Phasenwiderstand
2.8 Ω
Phaseninduktivität
4.2 mH
Isolationswiderstand
Min. 100 MΩ bei 500 V DC
Isolationsklasse
B (130°)
Trägheitsmoment
260 g·cm²
Rastmoment
0,04 Nm
zuläss. Temperaturbereich
-10 - 50 °C
Abmessungen
56 x 56 x 101 mm
Gewicht
1,45 kg
Lieferumfang
NEMA23-03 Schrittmotor
EAN
42502368188801
Artikelnummer
NEMA23-03
