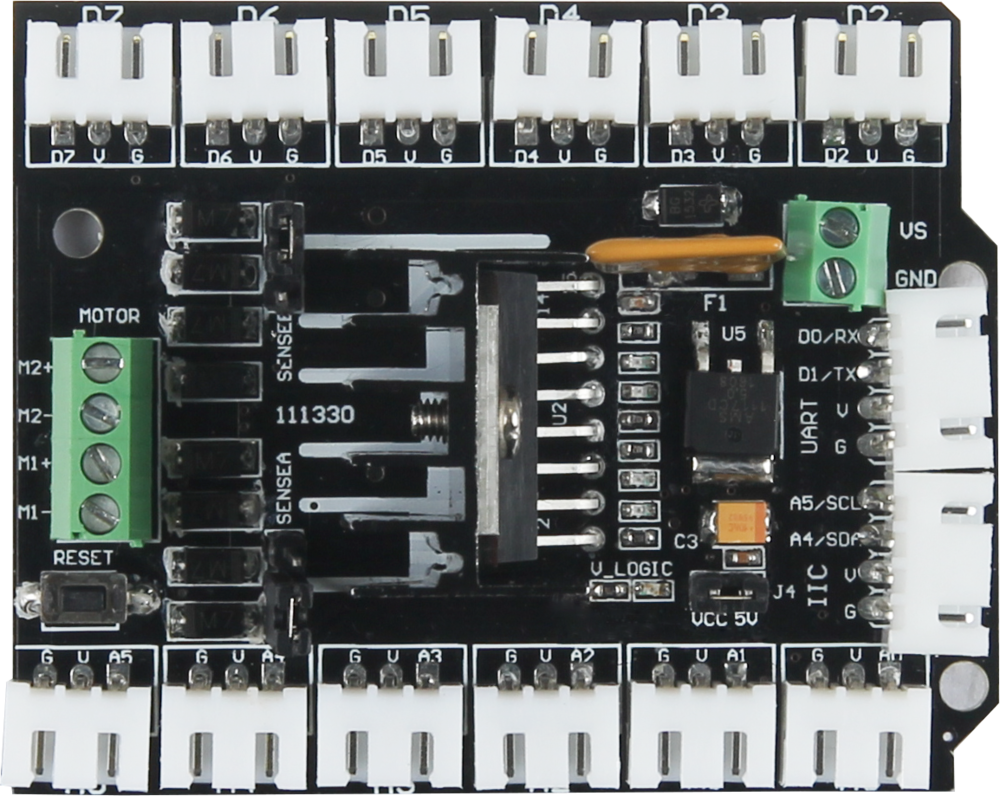

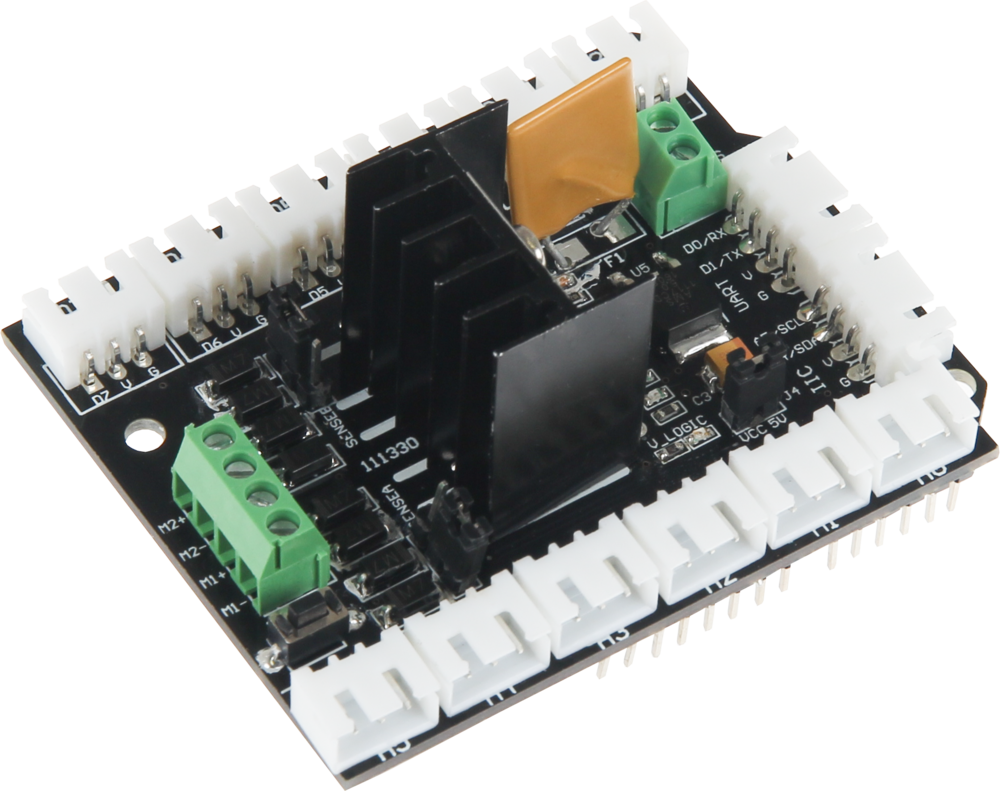

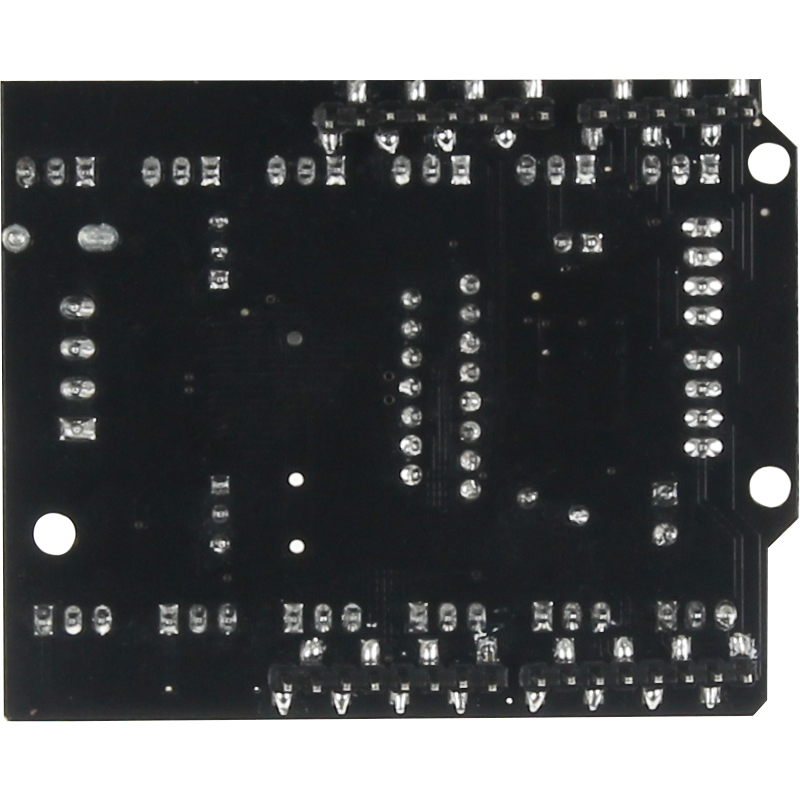

Joy-IT Motor Controller for stepper motors

This Motorshield can be attached directly to the Arduino L298N chip for DC motors or 2-phase and 4-phase stepper motors. Additionaly, there are 6 digital I/O and 6 analog inputs via a three pole JST-connector (Signal|VDC|GND).

Specifications

Chip

L298N

Digital I/O

6 x

Analog inputs

6 x

Motor voltage

6,5 -12 V DC (max. 2 A)

Logic voltage

5 V DC

Special features

for DC motor or 2-phase and 4-phase stepper motors

Compatible with

pcDuino, Arduino

Additional information

Dimensions

56 x 36 x 69 mm

Items shipped

Motor control unit

EAN

4250236813196

Article No.

ARD-Moto1
