Joy-IT Motorino

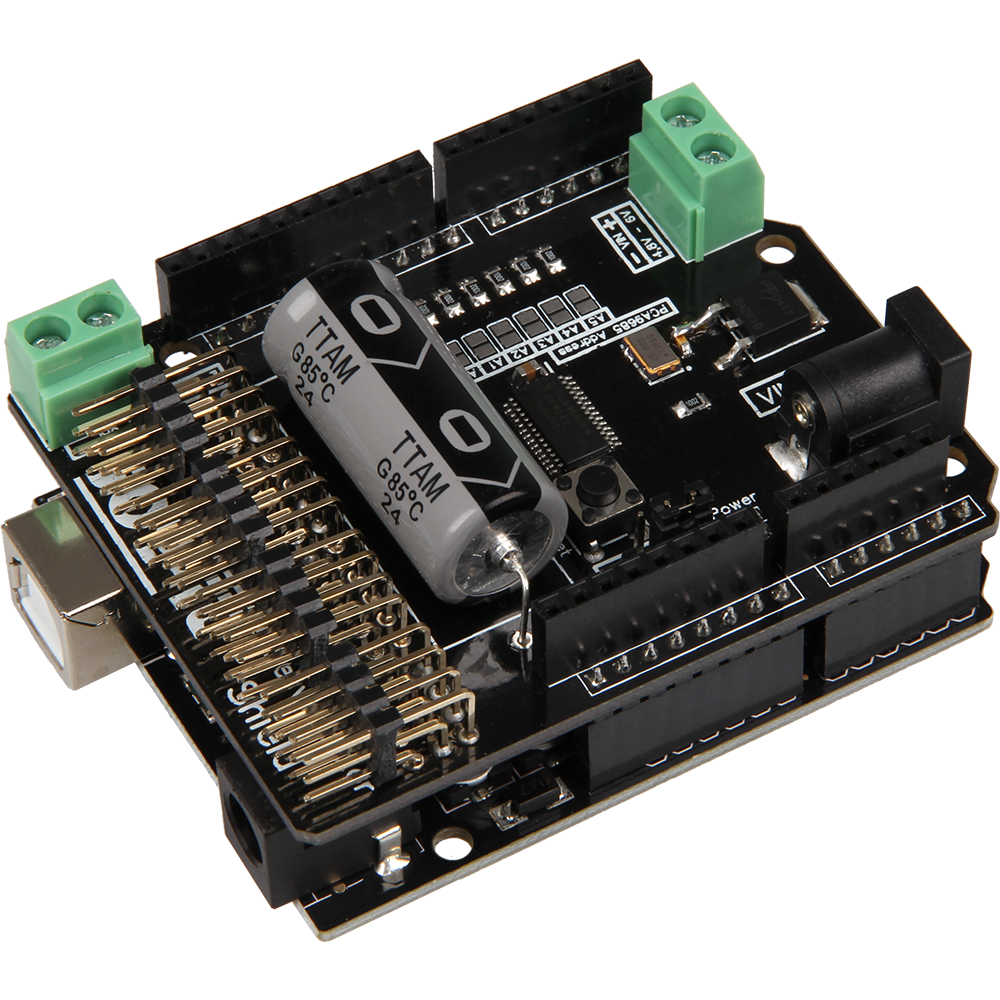

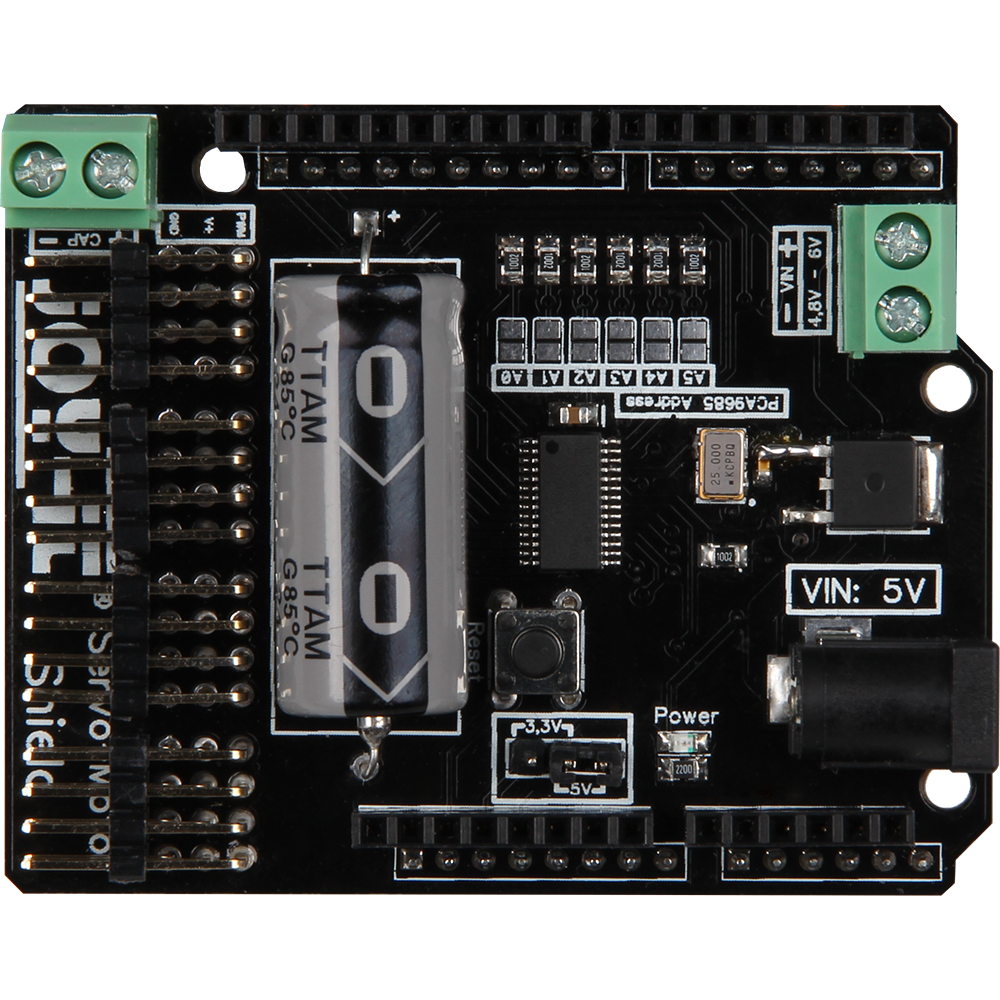

This is an extension board for controlling and using of up to 16 PWM-controlled 5 Volt servo motors with its own clock generator for more exact PWM-signals and more exact positioning. It offers a single voltage-, ground- and control connection for each motor and a built-in capacitor, which buffers the current additionally. The board has two voltage inputs for 4.8 to 6 Volt and for up to 11 A.

For direct plug-in on compatible microcontroller Arduino Mega2560 and Arduino Uno!

Specifications

Special features

16 channels, own clock generator

Input 1

Coaxial power connector 5,5/2,1mm, 4,8 - 6 V, max. 5A

Input 2

Screw terminal 4.8 - 6V, max. 6 A

Communication

16 x PWM

Compatible with

Arduino Uno, Arduino Mega a.m.m. with arduino-compatible pinout

Additional information

Dimensions

69 x 24 x 56 mm

Weight

36 g

Items shipped

Motor control module

EAN

4250236814742

Article No.

ARD-Moto3

Frequently asked questions

Which pins are used?

SDA, SCL, D7
