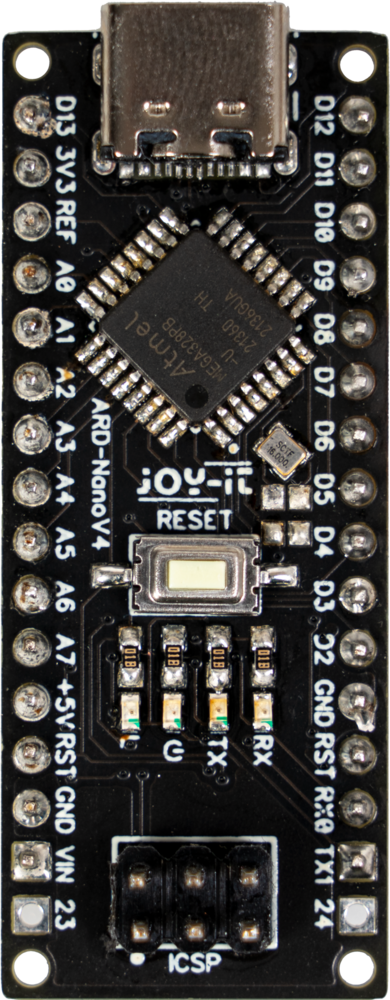

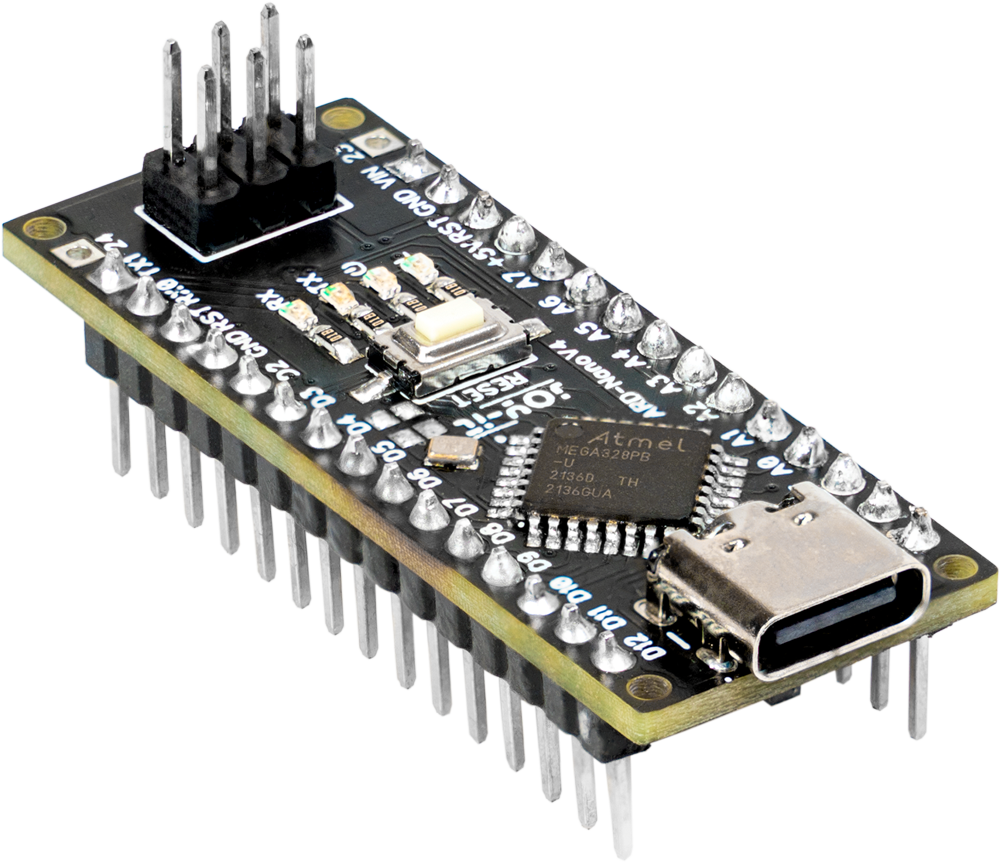

ARD Nano V4 (ATmega328P)
The ARD-NanoV4 is a particularly small microcontroller and, due to the pin header leading out at the bottom, has been specially developed for working with plug-in boards.
The integrated USB Type-C interface can be used to supply both the circuit and the board with power, as well as to transfer programs to the microcontroller. The NanoV4 is fully compatible with the Arduino Nano V3.
Specifications
Microcontroller
Atmel Mega328PB
Bootloader
ATmega328P
Clock frequency
16 MHz
Logic level
5 V
Analog pins
8
Digital pins
14 (of which 6 PWM)
Special feature
Fully Arduino compatible,
USB-C interface
DC current per I/O pin
40 mA
Memory
32 kB (2 kB for bootloader)
SRAM
2 kB
EEPROM
1 kB
Supply voltage
Vin-PIN: 7 - 12 V
USB Type-C: 5 V
Power requirements
20 mA
Additional information
Dimensions
18,5 x 47 mm
Weight
9 g
Items shipped
ARD-NanoV4
EAN
4250236825380
Article No.
ARD-NanoV4
