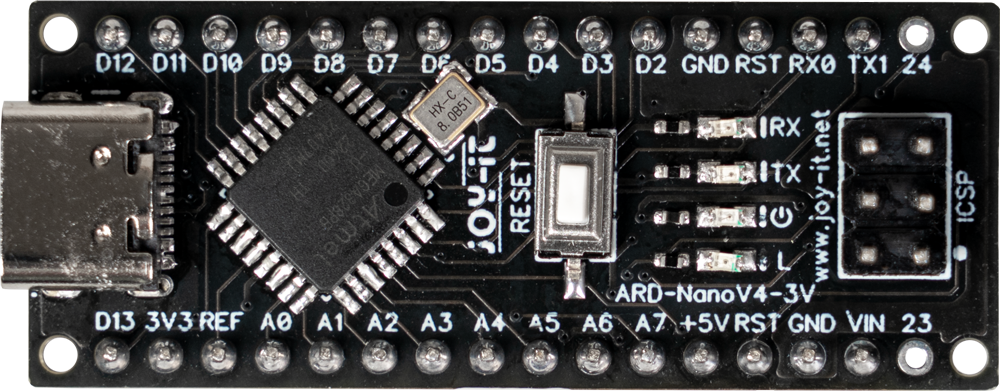

ARD Nano V4 3V

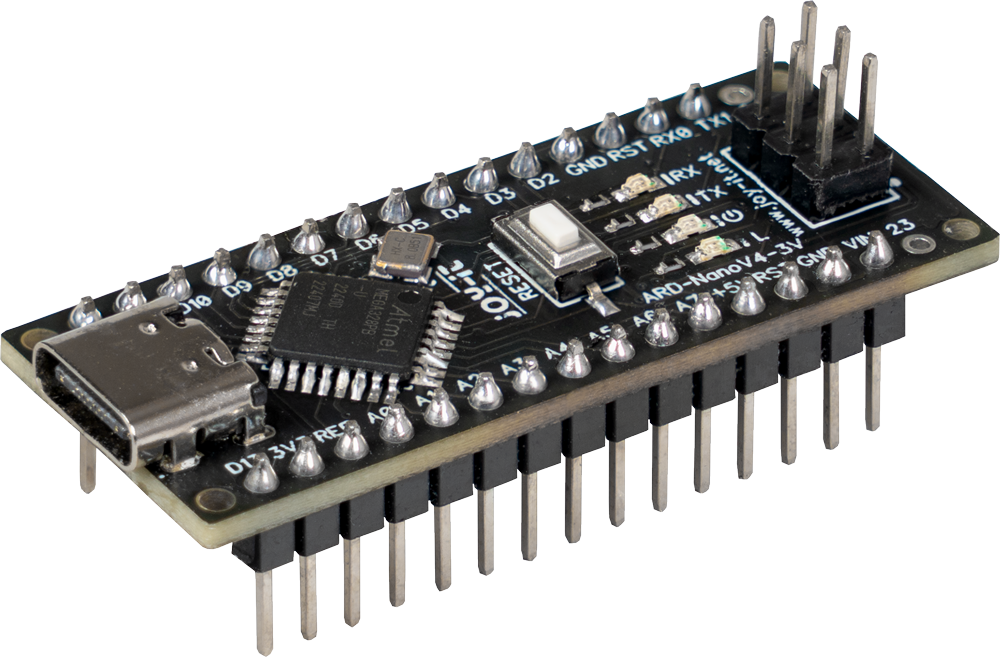

The ARD-Nanov4-3V is a particularly small microcontroller that has been specially developed for working with plug-in boards, thanks to the pin header that leads out at the bottom.
The integrated USB Type-C interface can be used to supply the circuit and board with power and to transfer programmes to the microcontroller. The logic level, 3.3V as standard, can be easily switched to 5V via a solder bridge.
The board also has a high-precision clock generator that is optimised for demanding applications and precise time measurements.
Specifications
Microcontroller
Atmel Mega328PB
Bootloader
ATmega328P / Arduino Pro or
Pro Mini
Clock frequency
8 MHz ±10ppm (±0,001 %)
Logic level
3.3 V / 5V switchable via
solder bridge
Analog pins
8
Digital pins
14 (of which 6 PWM)
Special feature
Fully Arduino compatible,
high-precision clock frequency,
USB-C interface
DC current per I/O pin
40 mA
Memory
32 kB (2 kB for bootloader)
SRAM
2 kB
EEPROM
1 kB
Supply voltage
Vin-PIN: 7 - 12 V
USB Type-C: 5 V
Power requirements
30 mA
Additional information
Dimensions
18,5 x 47 x 18,5 mm
Weight
7 g
Items shipped
ARD-NanoV4-3V
EAN
4250236830131
Article No.
ARD-Nanov4-3V
