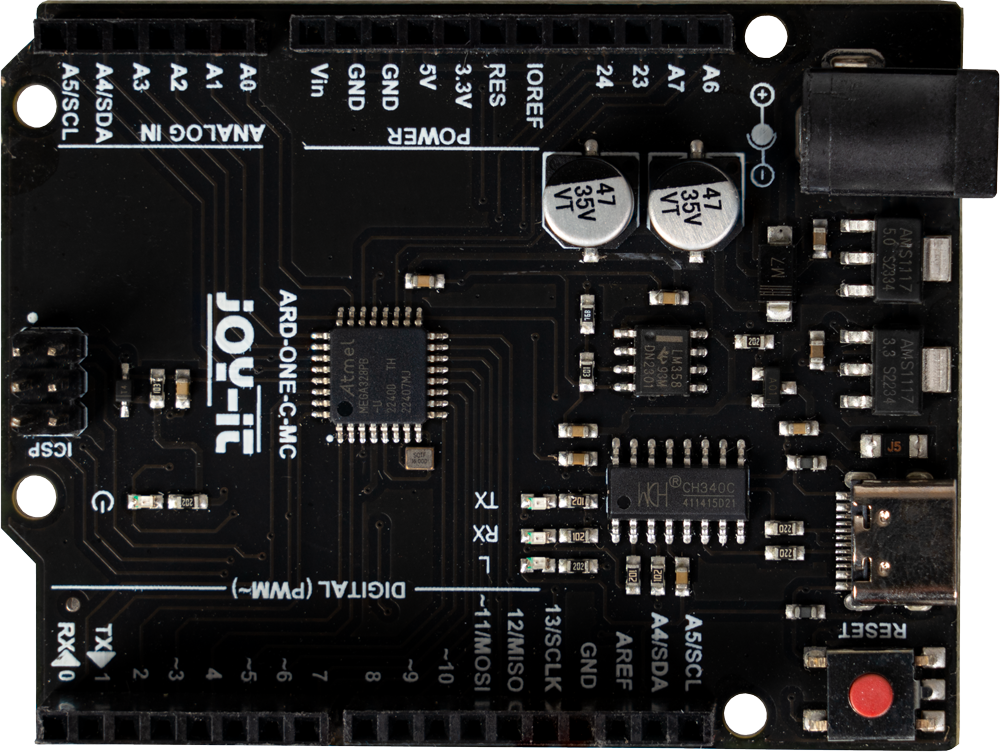

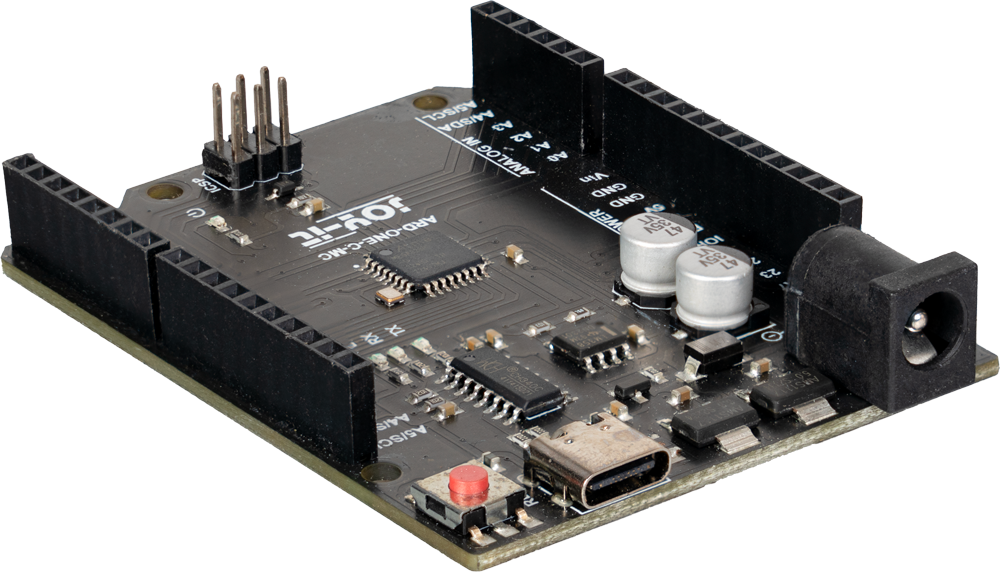

ARD One-C (Minicore)
The ARD-ONE-C board is the right microcontroller for beginners who want to enter the programming world quickly and easily.
Its ATMega328PB microcontroller offers you enough power to implement your ideas and projects. It measures 68 x 53 mm and has many connectivity options with 14 digital inputs/outputs and 6 ana-log inputs.
Compared to the ARD_R3DIP, the ARD-ONE-C-MC has 2 additional digital pins as well as 2 analog pins and an additional hardware I2C as well as SPI interface be-sides the USB-C interface. The board can also be programmed via the Arduino IDE and is compatible with most Arduino libraries.
Specifications
Microcontroller
ATmega328PB
Bootloader
Minicore
Clock frequency
16 MHz
Logic level
5 V
Analog pins
6
Digital pins
14 (6 with PWM)
Special feature
Fully Arduino UNO compa-tible, USB-C interface
DC current per I/O pin
40 mA
Memory
32 kB (2 kB für Bootloader)
SRAM
2 kB
EEPROM
1 kB
Supply voltage
Vin-PIN: 7 - 12 V
USB Type-C: 5 V
Power requirements
20 mA
Additional information
Dimensions
68 x 53 mm
Weight
26 g
Items shipped
ARD-ONE-C-MC
EAN
4250236826196
Article No.
ARD-One-C-MC
