Motor Control Kit

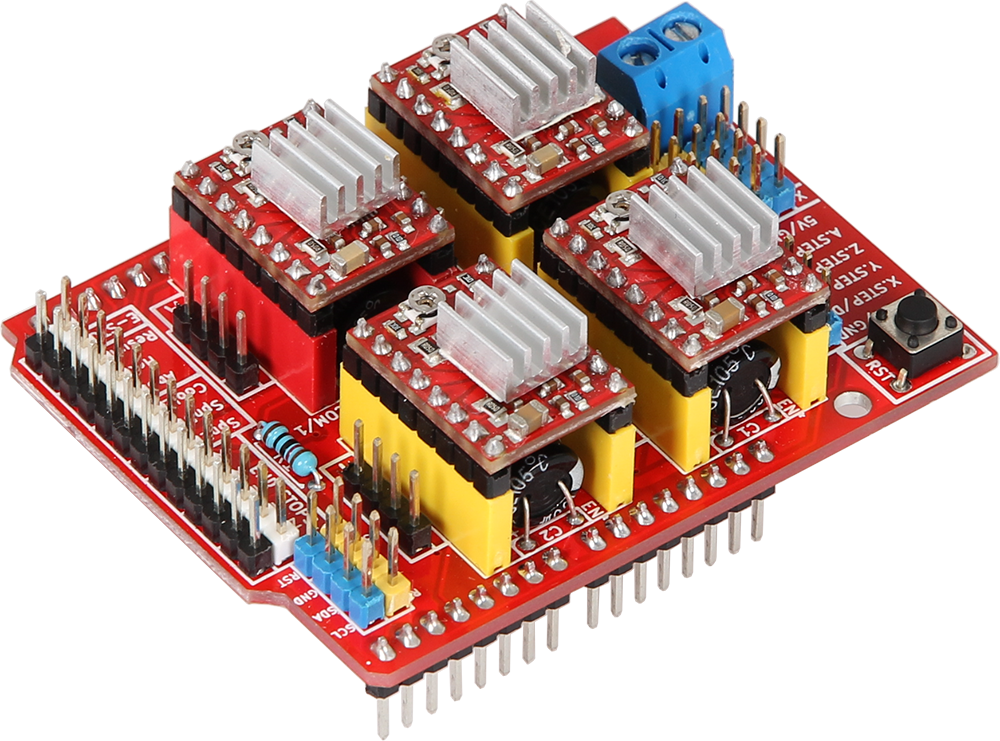

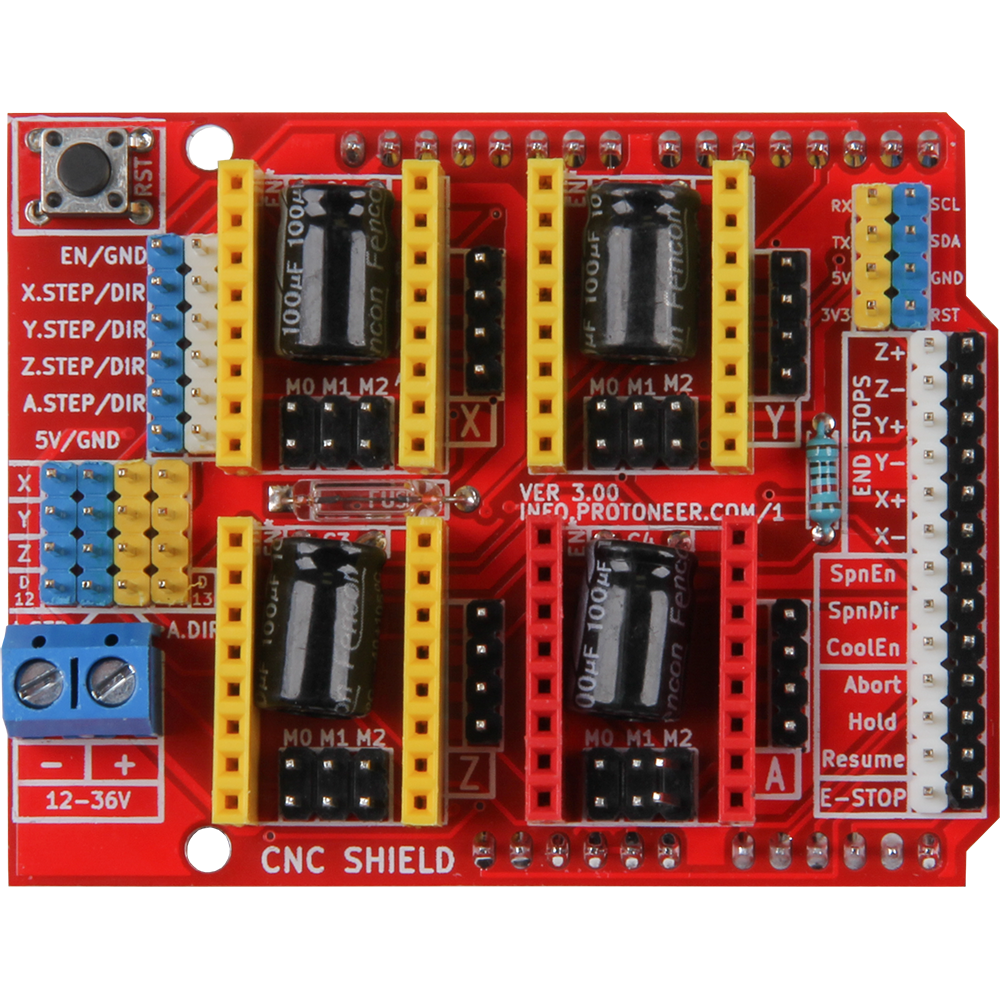

With this Controllerboard, which is designed for use with Arduino Uno or an Arduino Uno-compatible board you can install your costumized CNC milling machine. It can be operated from 12 to 36 Volt as required and can control up to 4 axes with the supplied A4988 motor drivers easily, as it is a 100% compatible to GRBL.

Specifications

Input voltage

12 - 36 V

Max. phase current

2 A per phase

Further Features

Removable motodrivers, Reset-button, screw terminals for power supply

Additional information

Dimensions

53 x 68 x 18 mm

Weight

46 g

Items shipped

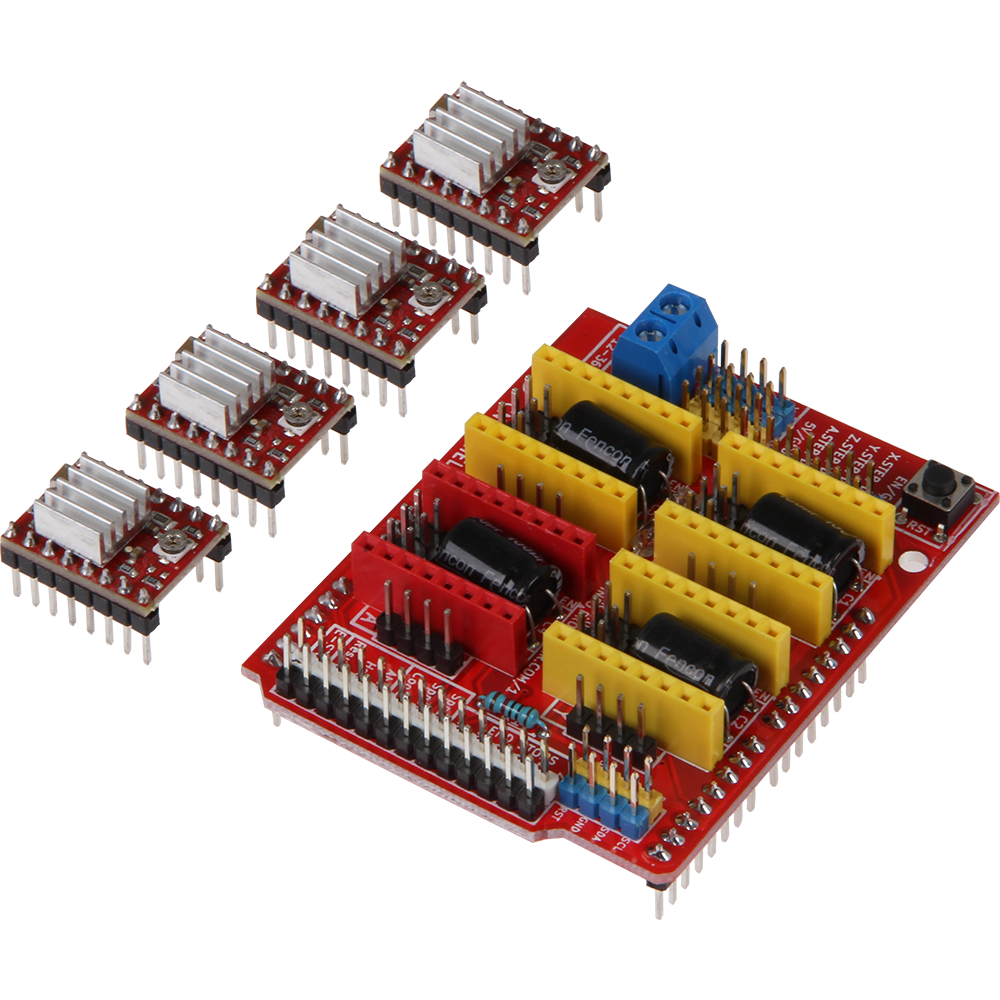

CNC controller board, 4x A4988 Motodriver

EAN

4250236815961

Article No.

Ard-CNC-Kit1

Recommended products

ARD R3DIP

ARD_R3DIP microcontroller (Arduino-compatible)

NEMA 17 motor

NEMA17-01 stepper motor

NEMA 23 motor

NEMA 23-01 stepper motor
