Emergency stop switch 1 A
Our latching steel push button convinces with high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP65 ( dust and water ), IK10 ( impact ) and PA66 ( flame ). The protection classes, the wide temperature range and the durability make our steel push button suitable for many applications.

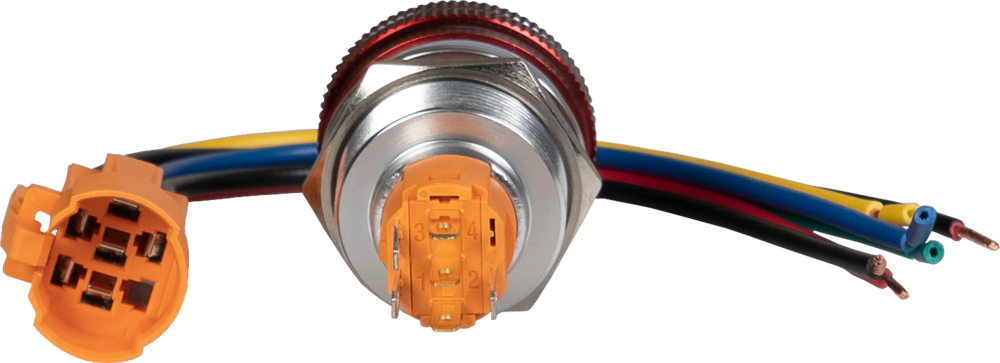

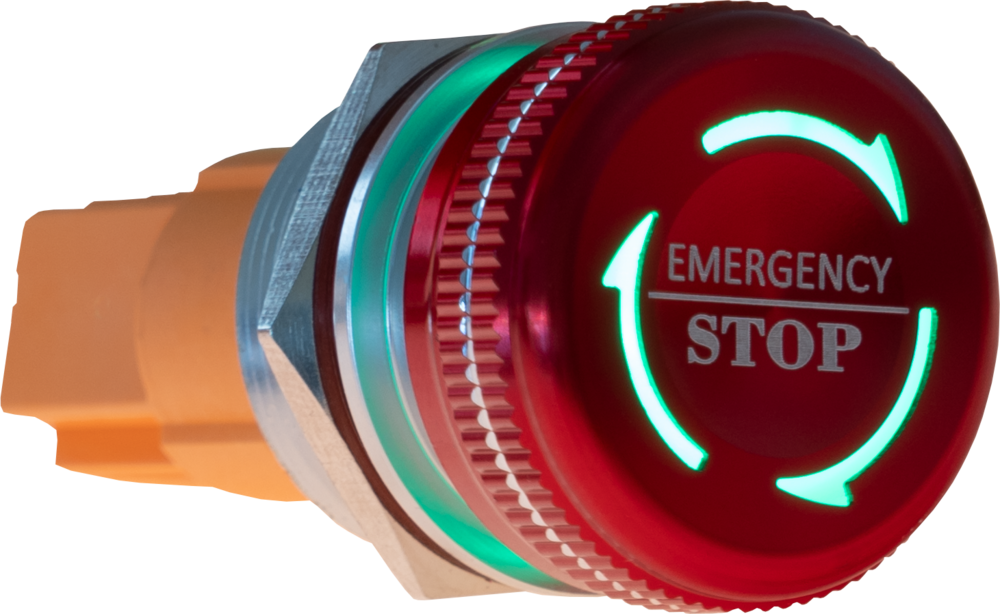

The steel push button has a bright LED ring ( green ). Due to the concave design of the surface, there are no sharp edges. The connecting cables and the sockets have different colours and shapes, so that confusing the push button variants ( 22A / 22B / 22C ) is impossible.
The necessary connection cables, socket, sealing ring and nut are already included in the scope of delivery.
Specifications
Special characteristics

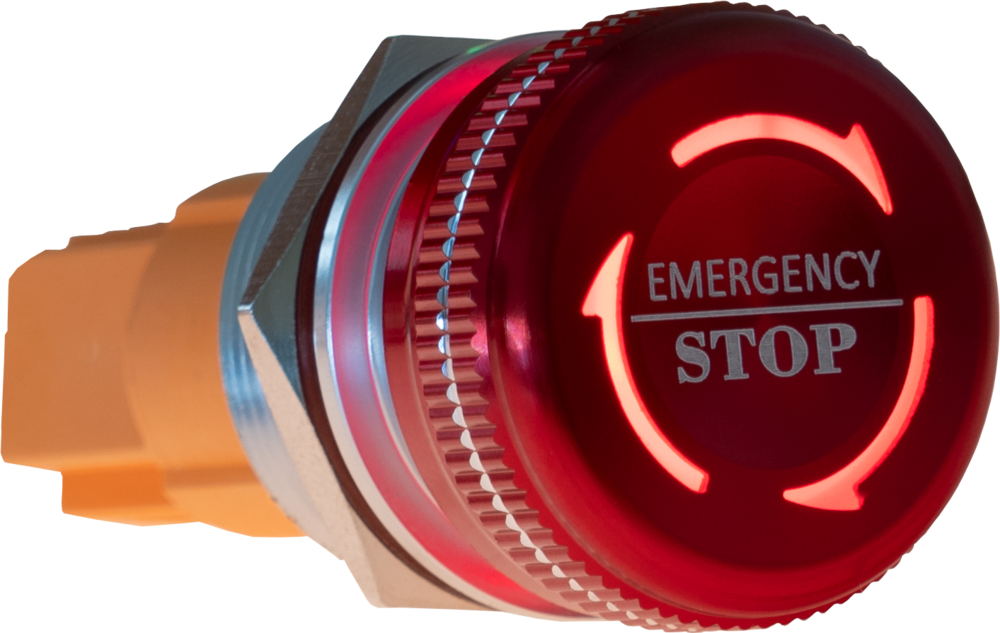

High luminous LED (green & red)
Operation mode
Latching
Key depth
3 mm
Rated load (resistive)
1 A / 110 V AC, 0.5 A / 230 V AC
1 A / 24 V DC
Rated load (inductive)
0.2 A / 110/230 V AC
0.2 A / 110 V DC
LED Voltage
9 - 24 V DC
LED lifespan
50,000 hours
Connectors
1x NO, 1x NC, 1x COM, 1x LED+, 2x LED-
Isolation resistance
≥ 1000 MΩ
Breakdown voltage
1500 V AC
Contact resistance
≤ 50 mΩ
Core and shell material
Stainless steel
Connector material
Flame retardant PA66
Contact material
Silver
Pin material
H65 silber-plated
Protection level
IP65, IK10
Nut torque
0.8 - 1.2 Nm
Dimensions mounting hole
Ø 22 x ≤ 12 mm
Additional information
Dimensions
Ø 27 x 46.3 mm
Weight
37 g
Items shipped
Button, connection cable, socket, sealing ring, nut
EAN
4250236825083
Article No.
Button22NA-01
