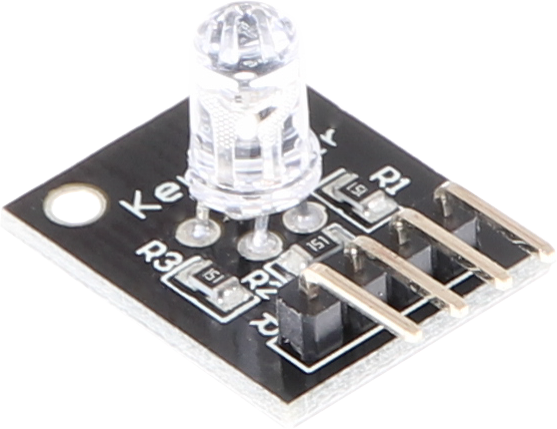

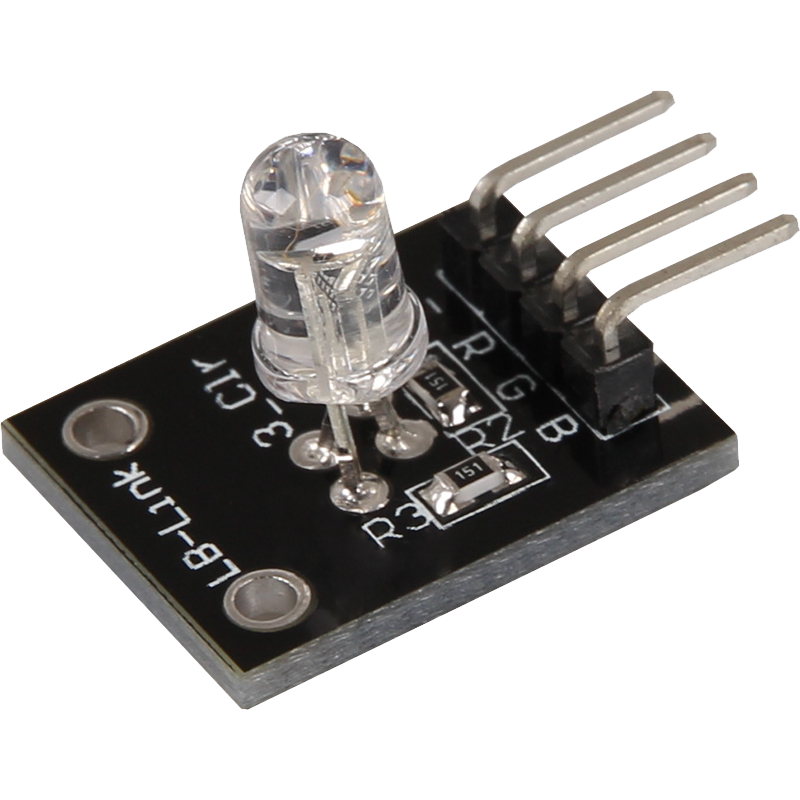

KY-016 RGB LED module

The LED module contains a red, blue and green LED. These are connected through a common cathode. In total, 16.7 million colors can be depicted.

To get more information for this module, please use the link ("further information") under Downloads.

Specifications

Model

RGB LED module

Function

can display up to 16.7 million colors

LED

5 mm

Pin assignment

Pin 1 = GND; Pin 2 = red; Pin 3 = green; Pin 4 = blue

Additional information

Dimensions

10 x 10 x 5 mm

Weight

2 g

Items shipped

RGB LED module

EAN

4250236817026

Article No.

COM-KY016RGBLED
