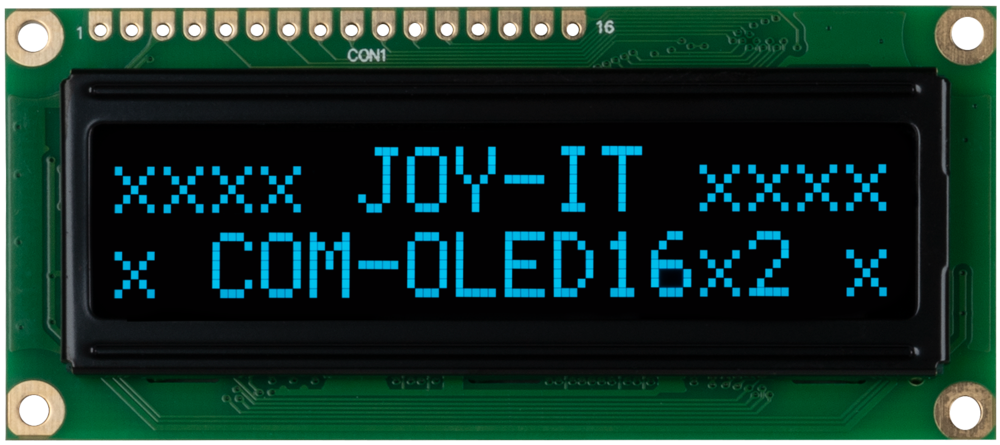

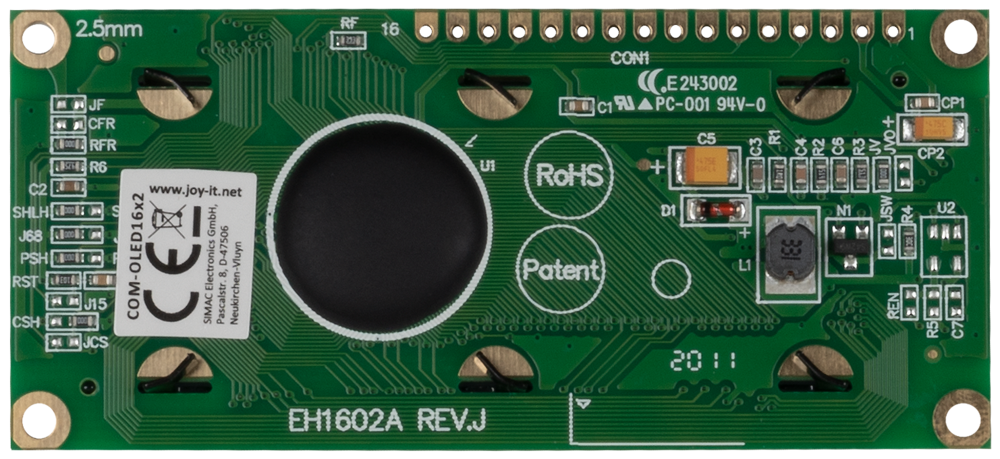

Our 16x2 character OLED display convinces with its excellent image quality in terms of brightness, contrast and the large viewing angle. Thanks to its low power consumption, the OLED display is ideally suited for energy-saving projects and industrial applications. The texts are displayed in light blue and stand out perfectly due to the black background. The connection to the single board computer or microcontroller can be done via the connectors on the board as well as via the enclosed 16 pin connector. The display can be controlled via a serial interface (SPI) and 2 parallel interfaces (6800 or 8080). The parallel interface 6800 is activated when delivered, but the interface can be changed by soldering the resistors on the board accordingly.

Corresponding application examples and programming codes are described in detail in our manual.

Specifications

Specifications

Type

OLED

Resolution

16 x 2 characters (each 5x8 or 5x10 dots per character) / in total 100x16 pixels

Display / background color

blue on black

Control chip

IST0010

Interface

Delivery status: 4 pin/ 8 pin parallel 6800 Further: controllable via SPI, 4 pin/ 8 pin parallel 8080 (soldering is required to change the interface)

Special features

High contrast and brightness; wide viewing angle

Voltage supply

3-5 V

Current supply

31 mA

Logic level

0.2 * VDD bis VDD

Brightness

typically 100-120 cd/m²

Contrast

2000:1

Viewing angle

> 175°

Permitted operating temperature

-40 - 80 °C

Preinstalled fonts

English, German, Russian, Japanese

Dimensions

80 x 36 x 10 mm

Items Shipped

16x2 character OLED, pin header

EAN

4250236820293

Article No.

COM-OLED16x2
