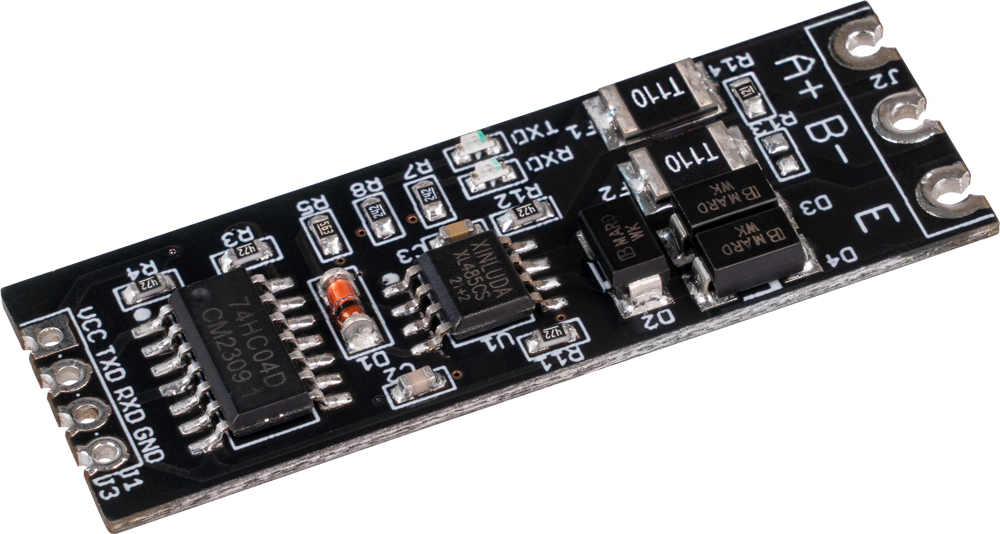

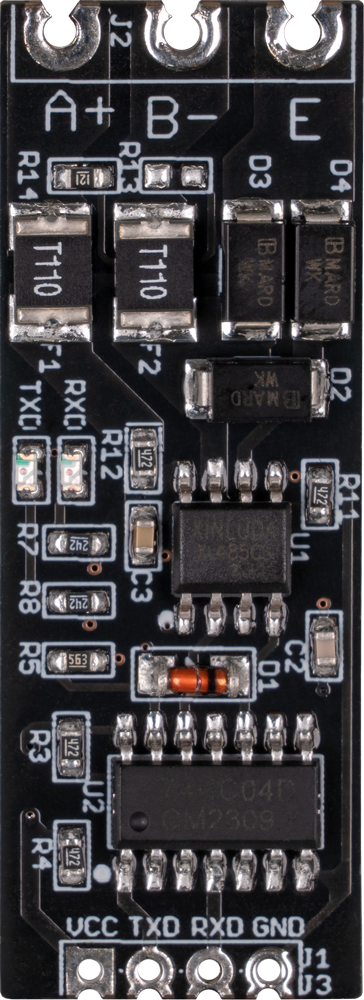

UART TTL - RS485 converter

This UART TTL to RS485 converter allows you to add an RS485 inter-face to your single board computer.

The module is easy to operate and is controlled via the UART interface. With a transmission range of up to 1 km, data transmissions with widely spaced devices are no problem. Its design and size make the module highly integrable. Due to its high im-munity to interference, it is often used in industrial environments.

Specifications

Color

Black

Chipset

74HC04D, XL485

Special features

Allows up to 128 devices to access the bus Status LEDs on transmit and receive line

Operating voltage

3,3 V / 5 V

Logic level

3,3 V / 5V

Transmission distance

Up to 1 km

Operating temperature

-40°C to 85°C

Additional information

Dimensions

43 x 15 x 3 mm

Items shipped

TTL-RS485 converter

EAN

4250236821962

Article No.

COM-TTL-RS485
