VAO10020

VAO10020

VAO10020

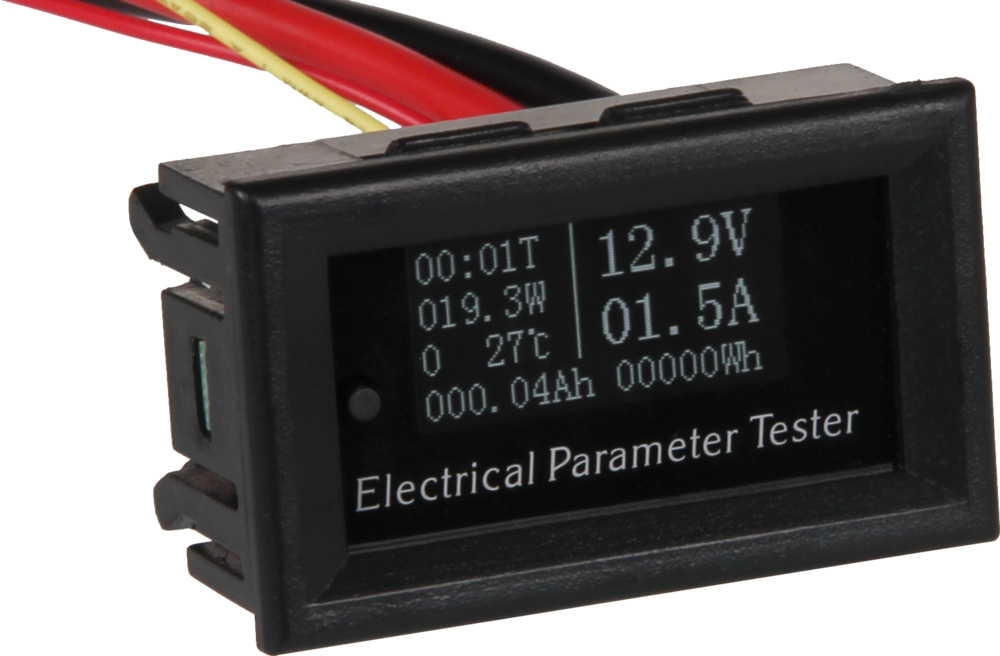

The VAO10020 is a compact multifunction meter which delievers precise information of voltage, current, performance, energy, duration and temperature.

All measured values can be read on the integrated 0.36" OLED-display.

Specifications

Specifications

Operating voltage

5 - 60V (DC)

Measured Data

Voltage, current, power, energy, running time, temperature (via integrated sensor)

Measuring range

0 - 99,9V / 0 - 20A / 0 - 2000W / 0 - 9999kWh 0 - 9999,9Ah / 0 - 99h 59min / 10 - 65°C

Measuring accuracy

Voltage: ±0,5% + 2 digits / Current: ±1% + 2 digits

Display mode

OLED-Display

Display size

0,36“

Display color

White

Dimensions

48 x 28 x 22 mm

Weight

28 g

Items Shipped

VAO10020

EAN

4250236817903

Article No.

COM-VAO10020
