VAX-1100

VAX-1100

VAX-1100

The VAX-1030 multifunction meter can measure voltage, current, work, power, temperature, real-time capacity and charge and discharge times in DC circuits.

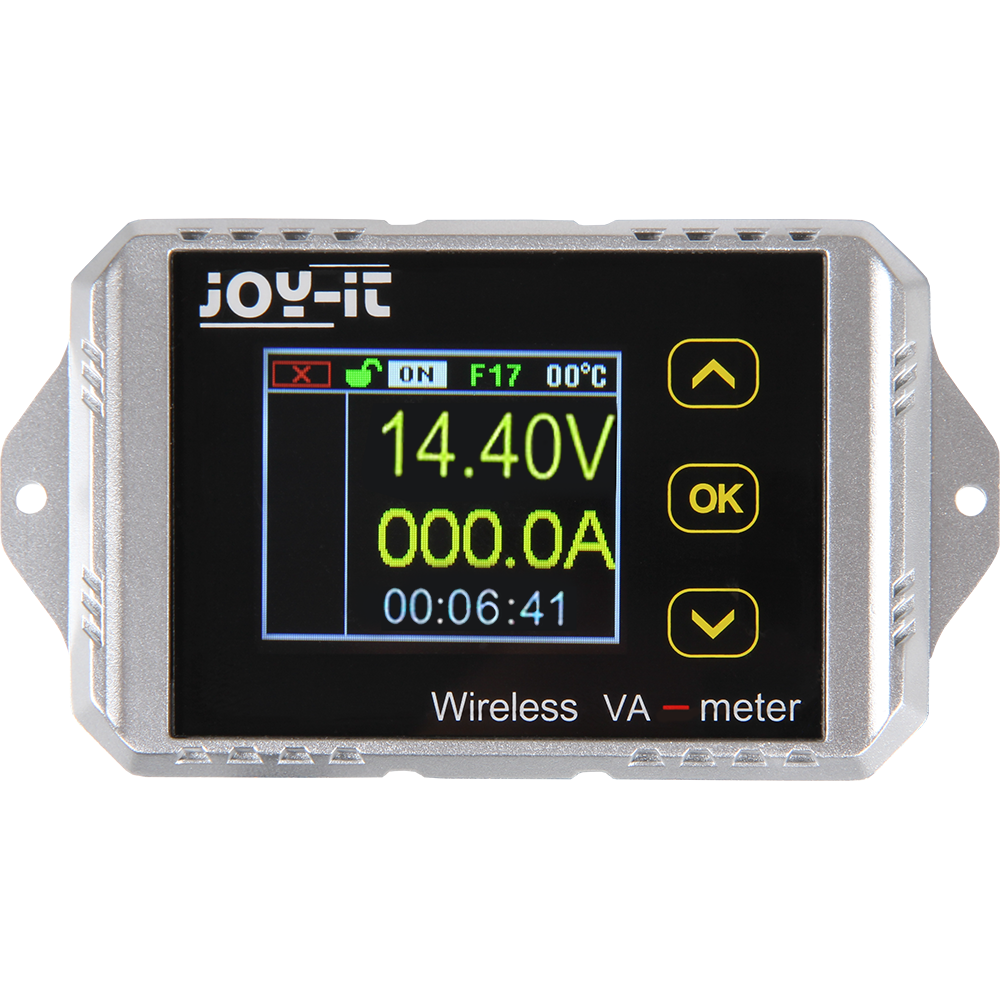

The display can be connected to the measuring module with a micro-USB cable or via a wireless radio connection.

A total of 26 communication channels enable several instruments to communicate with the measuring instrument simultaneously.



Attention:

Overvoltage, undervoltage and overcurrent protection can be activated by connecting an external relay (not included)..

Specifications

Specifications

Voltage range

0 - 100 V

Voltage resolution

0.01 V

Voltage accuracy

± 2% - 3 Digit

Current range

1 - 100 A

Current resolution

0.1 A

Current accuracy

± 5% - 10 Digit

Power range

0 - 200 kW

Power resolution

0.001 W

Energy range

0 - 4000 kWh

Energy resolution

0.001 Wh

Load display range

0 - 2000 kAh

Load display resolution

0.001 Ah

Temperature range

-20 - 120°C

Time range

0 - 99 days

Time resolution

1 second

Relays

connectable, optionally available

Negative overcurrent protection

0 - -100 A (only with external connected relay)

Positive overcurrent protection

0 - 100 A (only with external connected relay)

Overvoltage protection (OVP)

0 - -100 V (only with external connected relay)

Undervoltage protection (LVP)

0 - -100 V (only with external connected relay)

Protection delay time

0 - 10 seconds

Communication channels

A - Z (26 channels)

Address range

01 - 99

Communication range

Up to 10 m

Sample Rate

5 samples per seconds

Power (Display)

0.5 W

Power (Module)

0.4 W

Additional features

charge timing, discharge timing

Dimensions (Display)

1.8“ - 98 x 54 x 20.8 mm

Dimensions (Module)

113.2 x 57.2 x 48.8 mm

Weight

315 g

Items Shipped

Display, Measuring module, Micro-USB-Cable, Temperature sensor

EAN

4250236818450

Article No.

COM-VAX1100

Frequently Asked Questions

Frequently Asked Questions

HOW CAN I ACTIVATE THE KEY LOCK?

You must hold down the [OK] key to activate the key lock.

IF THE DISPLAY UNIT IS NOT CONNECTED, IS IT STILL WORKING?

The display unit is there for display only. The function is still given.

IS THE RADIO CONNECTION 'OFF' WHEN THE USB-CABLE IS CONNECTED?

There is an automatic detection. If a cable connection comes in, the radio connection is switched off.
