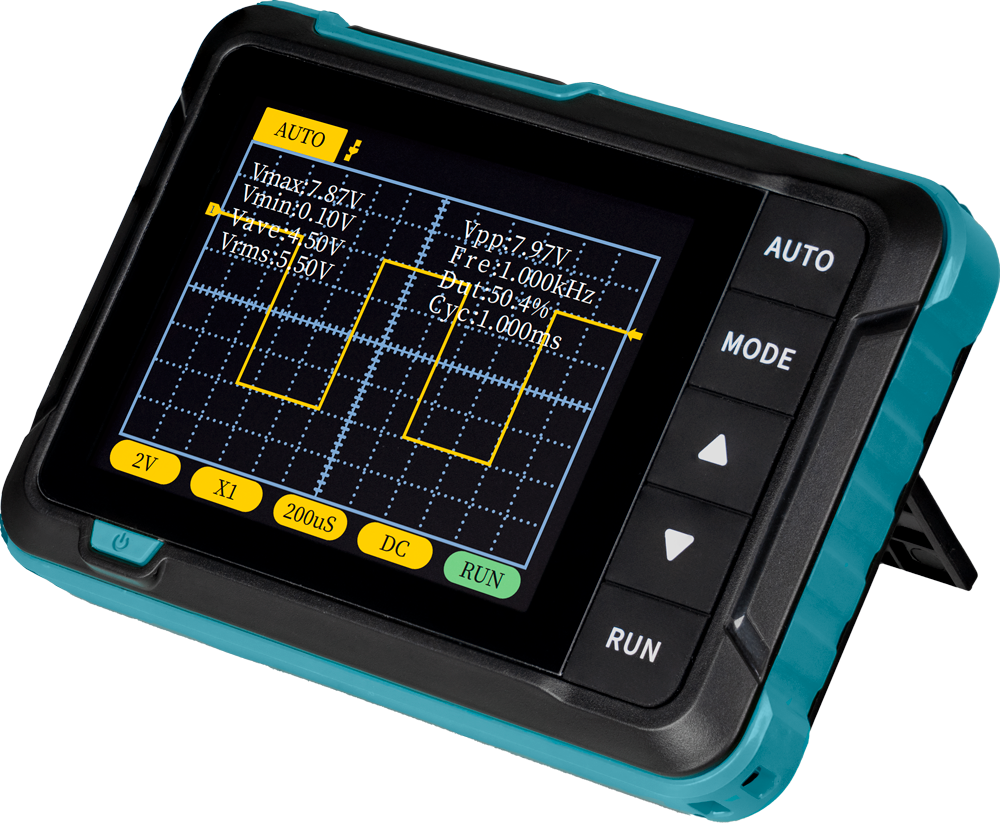

DSO-200

Experience precise measurement accuracy and portability like never before with our new DSO-200 handheld oscilloscope. Designed for hobby electronics engineers who value precision and portability, the DSO-200 puts top performance in your hands.

The DSO-200 fits comfortably in your hand and stores easily in your workshop or on your desk, thanks to its foldable stand and compact, rugged design. The ease of use and portability make the DSO-200 your perfect companion.

Specifications

Functions

Digital oscilloscope

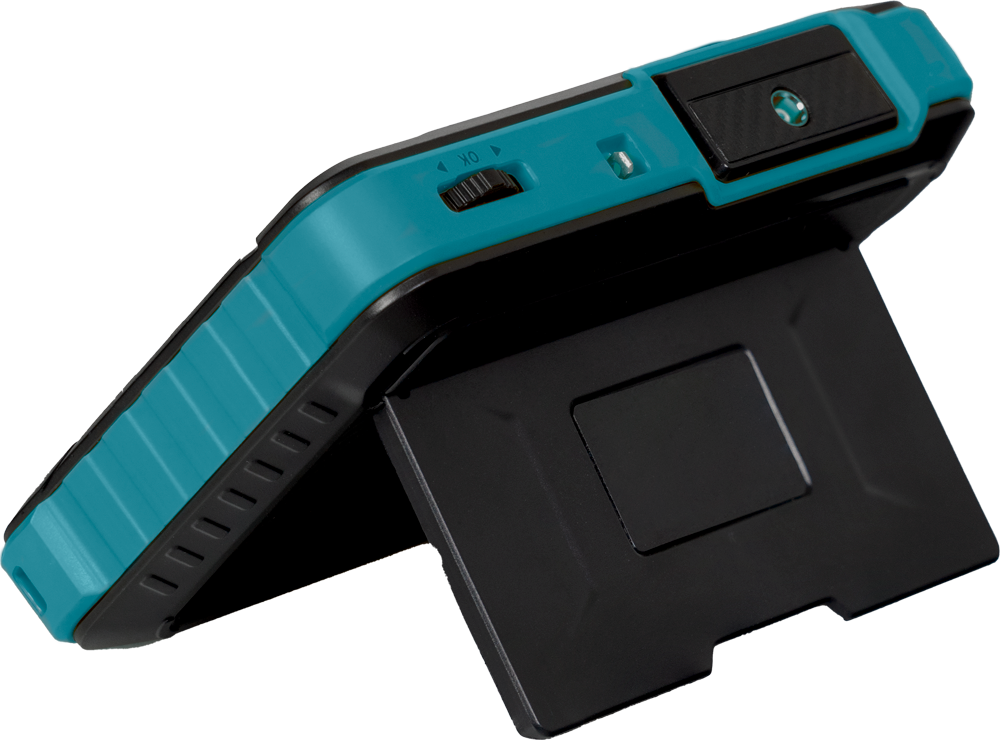

Stand function

Integrated 90° foldable stand

Battery

1000 mAh lithium battery, rechargeable via USB-C (5 V / 1 A)

Display

2,8" 320 x 240 LCD Display

Documentation

Included manual in German, English, Spanish, Italian & French

Sampling rate

2,5 MS/s

Bandwidth

200 kHz

Vertical sensitivity

10 mV/Div - 20 V/Div

Horizontal time base

10 μs/Div - 50 s/Div

Test voltage range

X1: 80 Vpp (-40 V - 40 V) X10: 800 Vpp (-400 V - 400 V)

Trigger modes

Auto, Normal, Single

Coupling

AC, DC

Calibration (Square wave)

Frequency: 1 kHz Duty cycle: 50%

Dimensions

99 x 69 x 20 mm

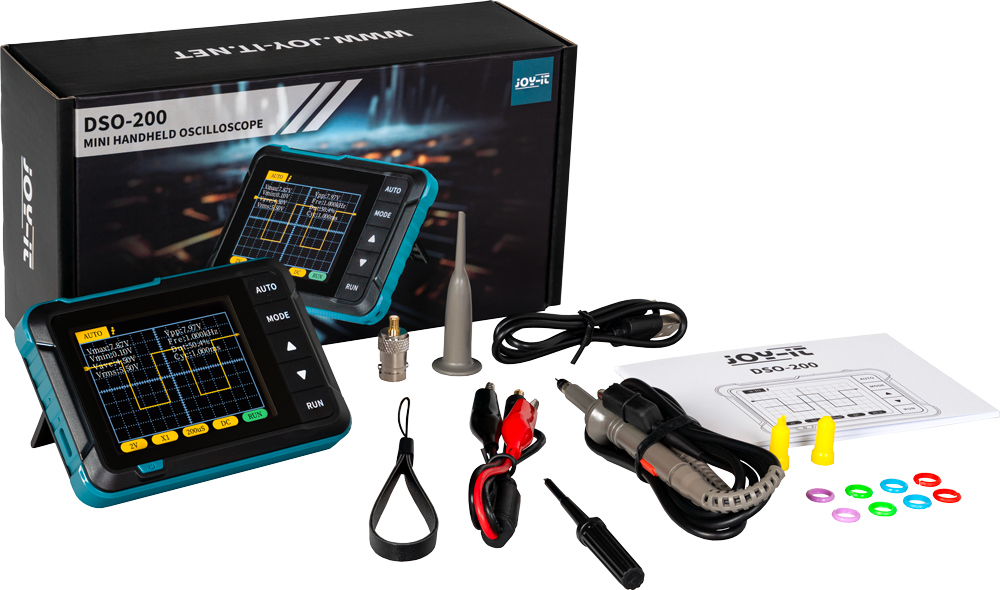

Items shipped

EAN

4250236826172

Article No.

DSO-200
