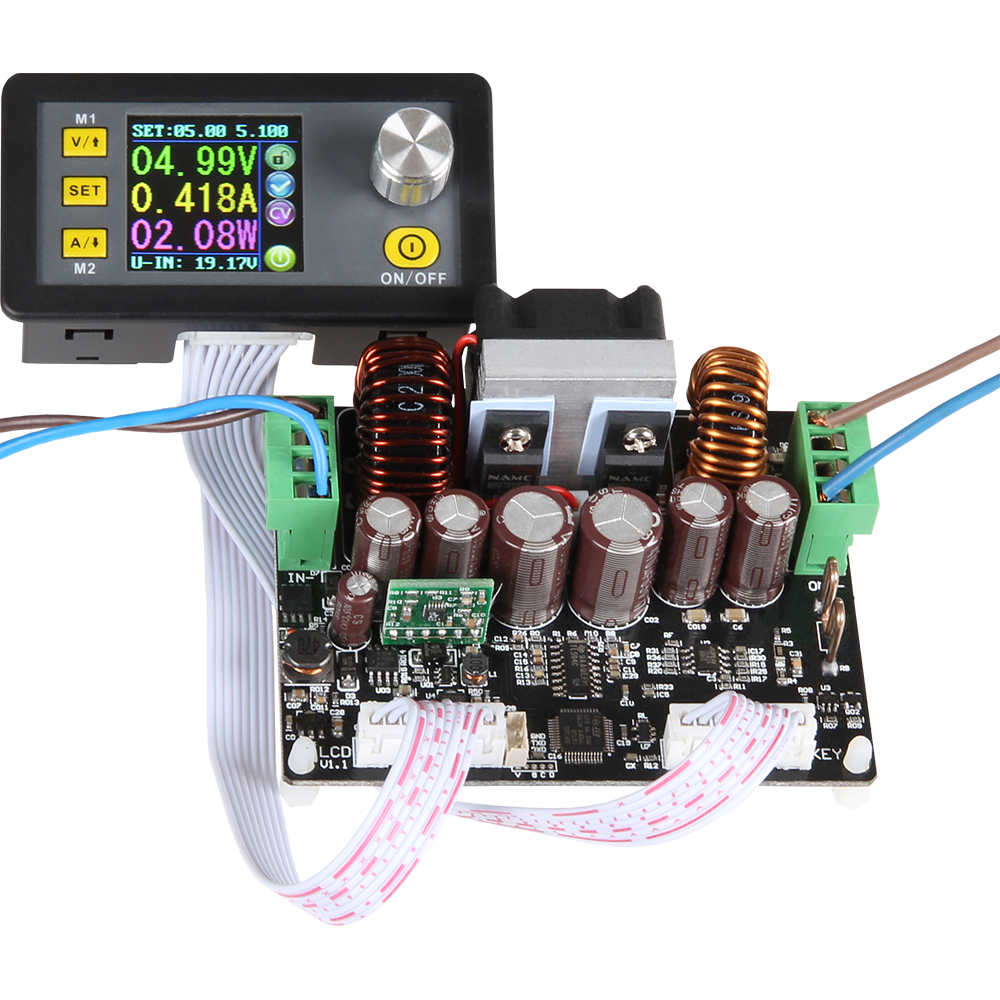

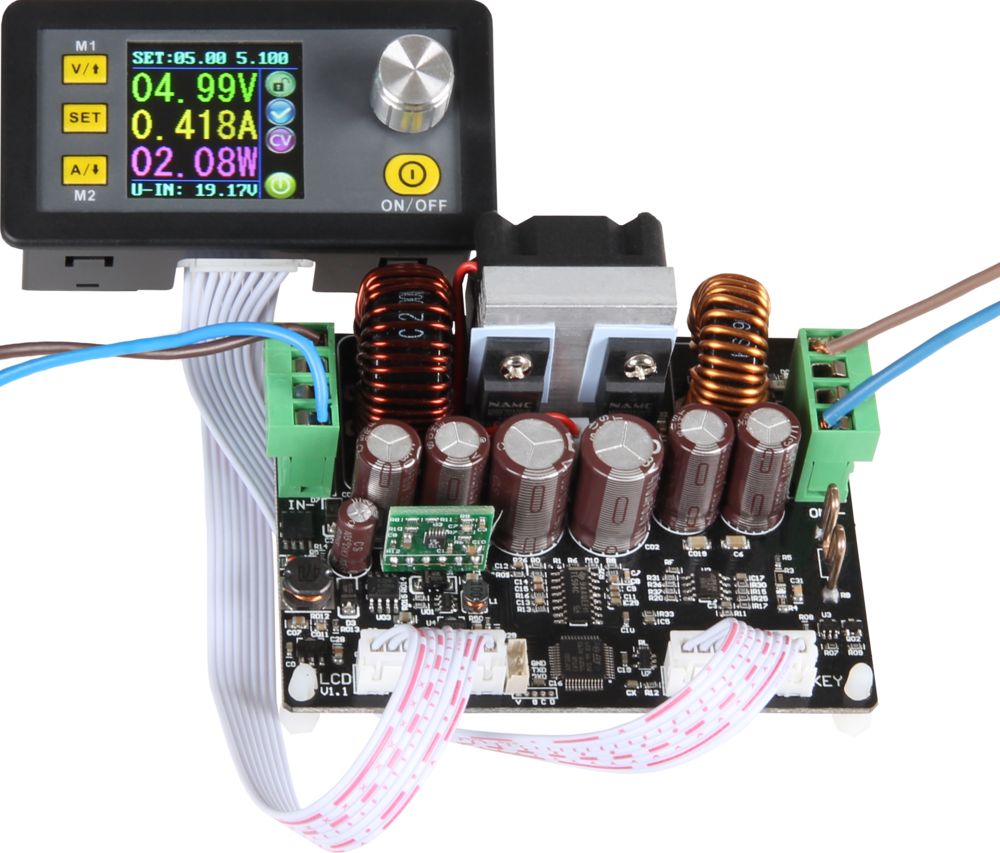

DPH5005 DC/DC Voltage Converter

Unleash the full power of your projects with our extremely compact buck-boost converter. Its slim design fits effortlessly into tight installation spaces and makes it the perfect companion - whether on the lab bench, in mobile test benches or in industrial plants. Be inspired by its versatility, which offers you a free choice between boosting and reducing the voltage.

The intuitive display guides you effortlessly through all functions and reliably shows you the current operating status at all times. Regardless of whether you need a quick overview in prototype construction or want to make precise adjustments in automated processes - you have your energy supply under control at all times without lengthy training.

Expand your setup as you wish: With optional Bluetooth and USB modules, you can seamlessly connect the transducer to your control software or mobile device. This makes it easy to read measurement data remotely and make settings conveniently - perfect integration for modern workflows.

Rely on a device that combines not only performance, but also robustness and quality. High-quality components and a sophisticated design ensure troublefree operation even under demanding conditions. Increase your efficiency and experience how easy professional voltage conversion can be today.

Specifications

Special features

Compact converter for flexible voltage conversion,
Conversion to higher & lower voltages,
Remotely controllable & programmable for automated test sequences using optional BT and USB modules,

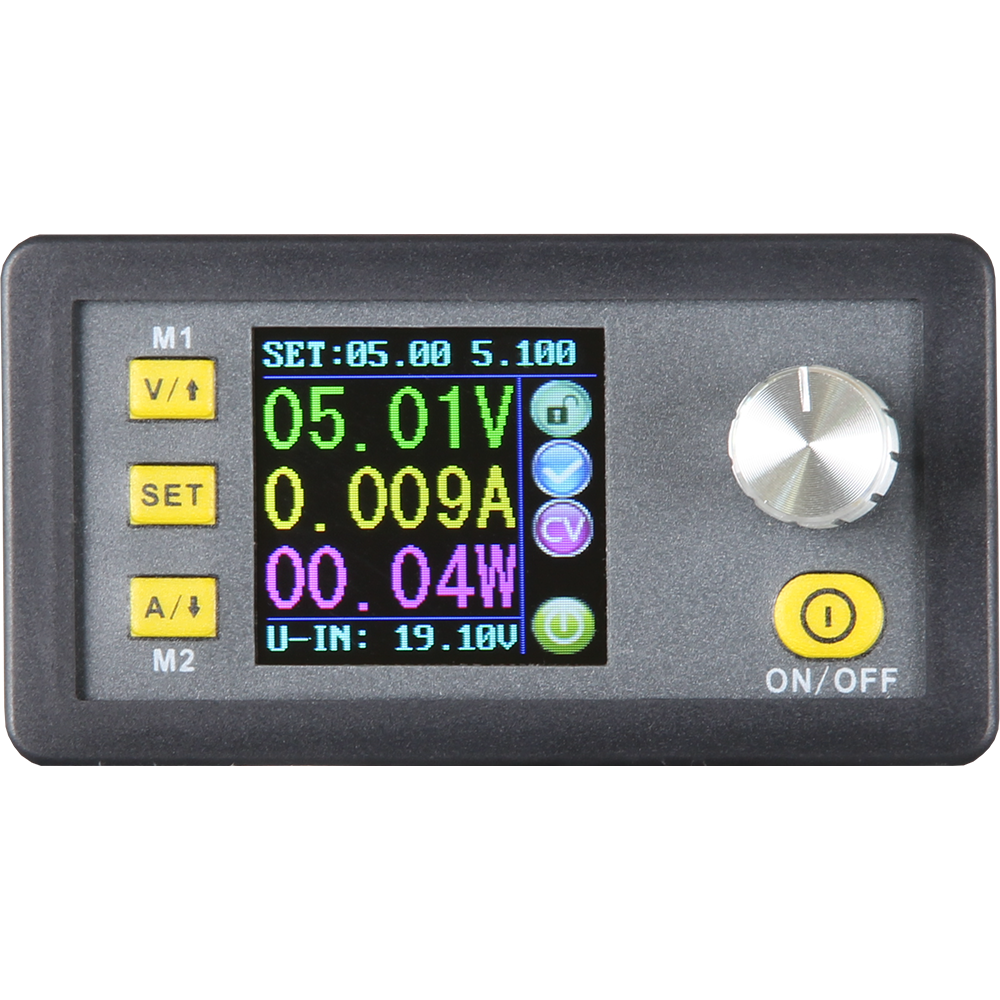

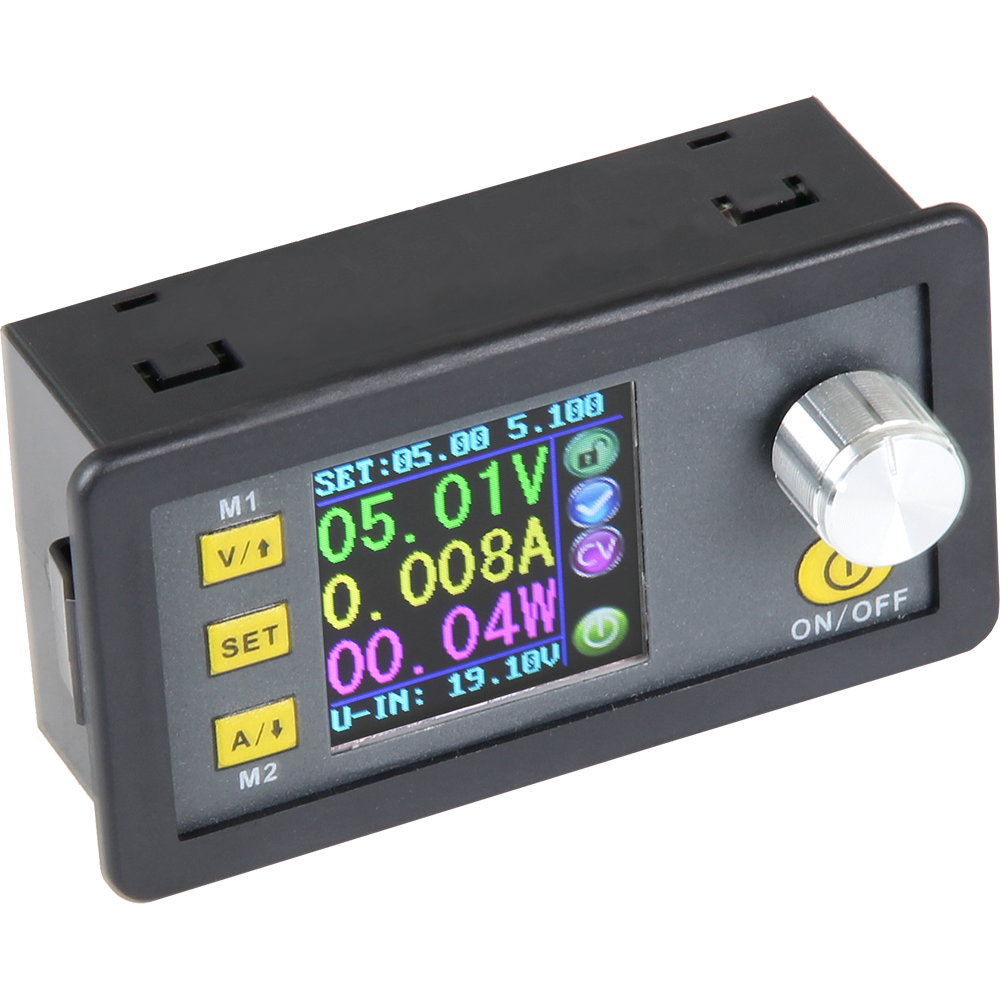

Intuitive operation via high-contrast display,
Reliable output voltage with minimum Ripple,
 Wide entrance area for versatile use

Input voltage range

6 - 50 V (DC)

Output voltage range

0 - 50 V

Output current range

0 - 5 A

Output power range

0 - 250 W

Voltage resolution

0,01 V

Current resolution

0,001 A

Ripple

100 mV(pp) at maximum resolution

Available modes

Constant current (CC), constant voltage (CV)

Display size

1,5 " (3,81 cm)

Display module size

43 x 79 x 38 mm

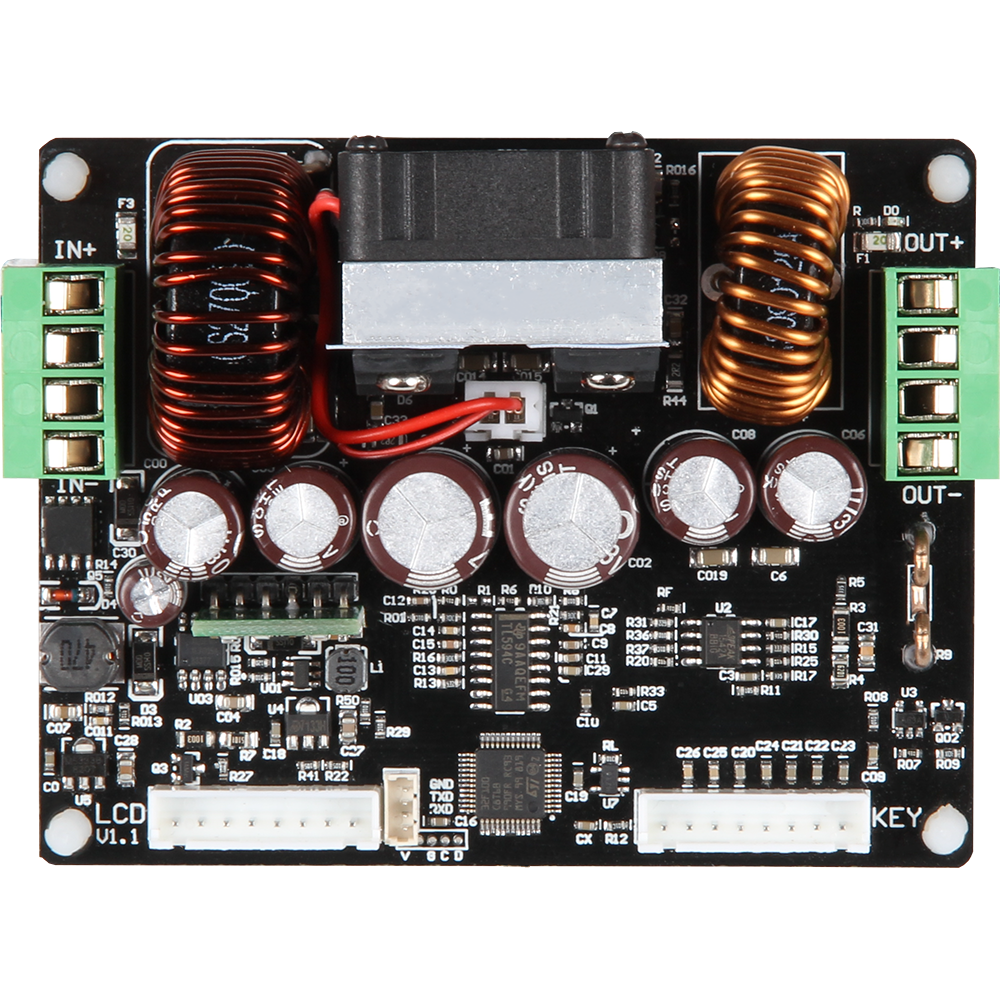

Power module size

93 x 35 x 72 mm

Display installation dimensions

71,6 x 39,3 x 23,6 mm

Additional information

Weight

252 g

Items shipped

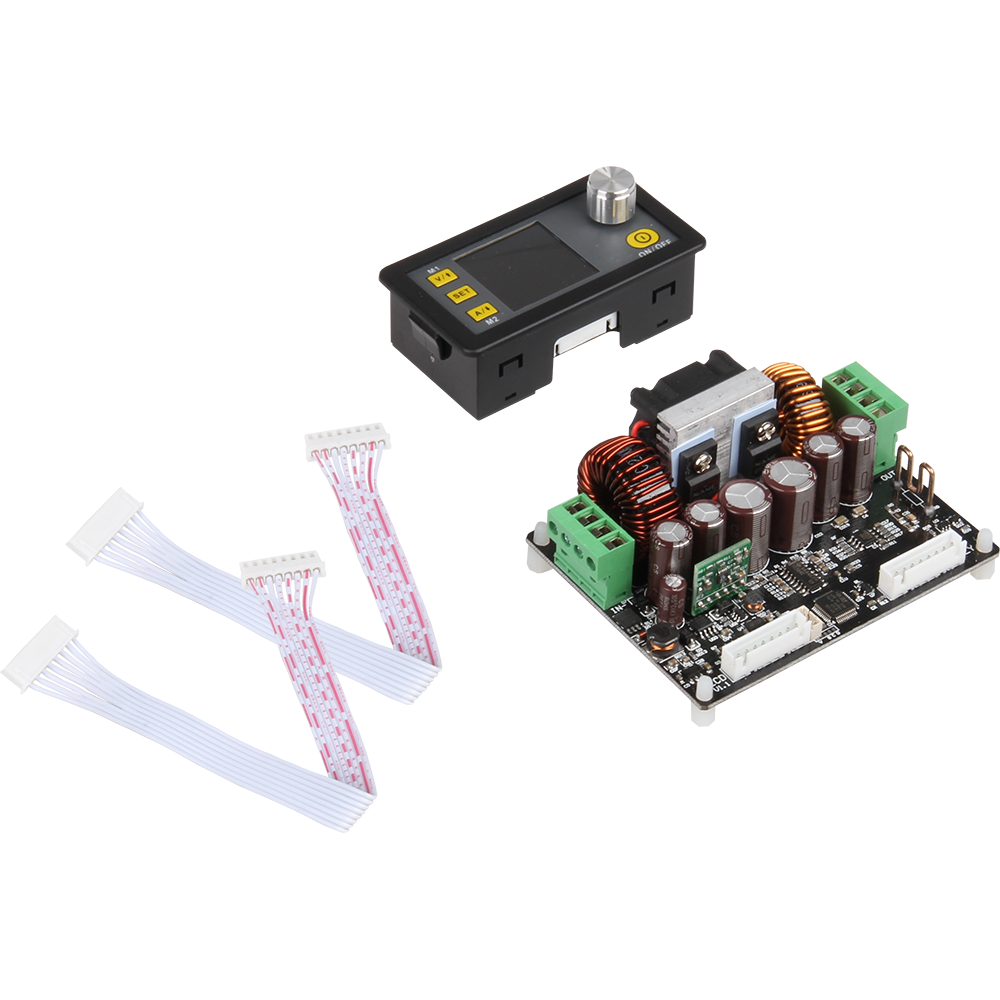

Display modules, power module, 2 connection cables

EAN

4250236818719

Article No.

JT-DPH5005
