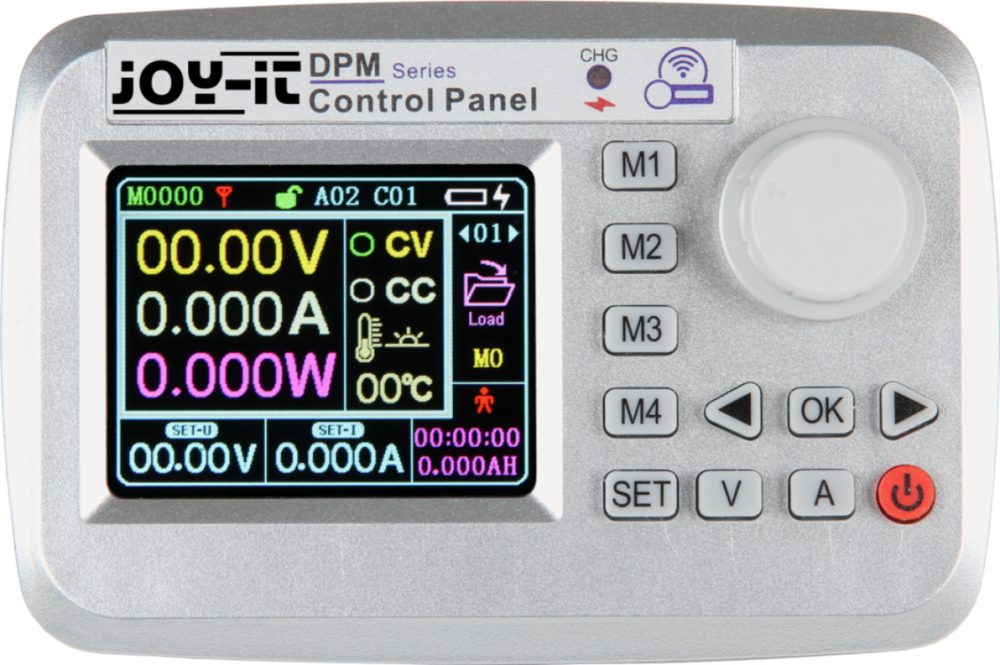

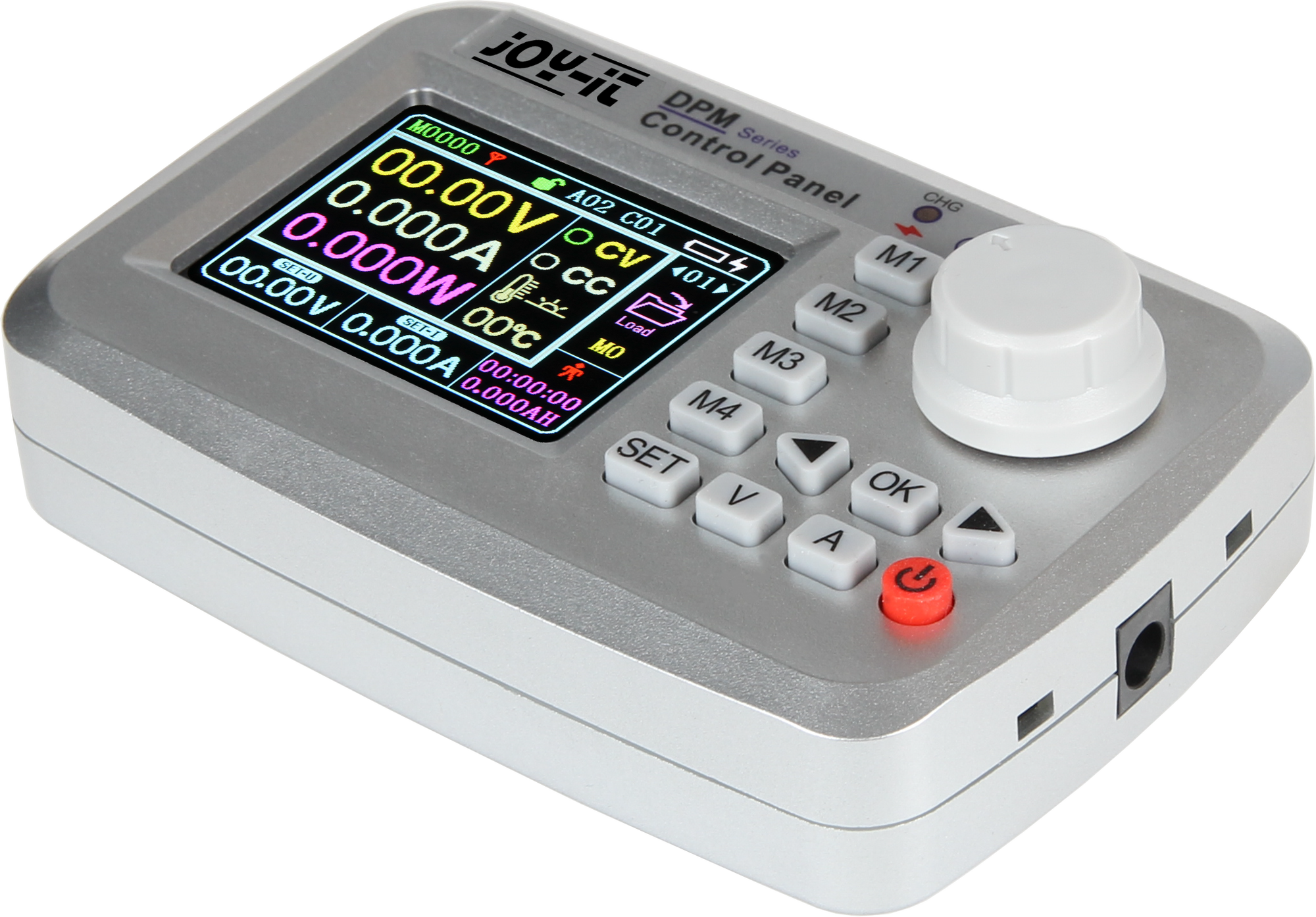

DPM Control Panel

Experience wireless freedom for your DPM power supply units: With the intuitive remote control, you can now conveniently control all voltage and current parameters from a distance - without the hassle of tangled cables. The brilliant color display provides clear feedback in real time and ensures that you always have an overview. This allows you to be flexible on the move, stay in control and adjust your devices to suit your needs.

Thanks to reliable RF transmission, you can master even demanding test and measurement setups with ease. The generous range allows you to design your working environment more freely and also adjust larger systems remotely. Whether you are supervising complex test set-ups in the laboratory or making quick adjustments in the workshop - the wireless connection always delivers stable performance.

Our ergonomically designed hand-held device fits perfectly in the hand and makes every operation a pleasure. The clearly structured menu navigation is as self-explanatory as it is efficient, allowing you to navigate between different power supply units and settings in no time at all. This reduces downtime and increases your productivity.

Rely on a companion that makes your day-today work easier all round: from prototyping to series testing and mobile applications - this remote control takes your DPM voltage converters to a new level of convenience and performance. Enjoy maximum mobility and an operating experience that is just as dynamic as your projects.

Specifications

Special features

Range up to 10 m,
Wireless RF transmission for interference-free access,
Complete remote control of all settings,
High-resolution 2.5" color display,
Configurable communication address and channels,
Integrated rechargeable battery for long-lasting operation,
Compact housing for flexible handling

Wireless transmission method

radiofrequency transmission

Range

up to 10 meters

Communication adress

0 - 99

Communication channel

0 - 30

Battery of control panel

3.7 V 2000 mAh

Supply voltage

5 V

Display size

2.4 Inch (6.35cm)

Additional information

Dimensions

120 x 80 x 25mm

Weight

108 g

Items shipped

Control panel

EAN

4250236819525

Article No.

JT-DPM-CP
