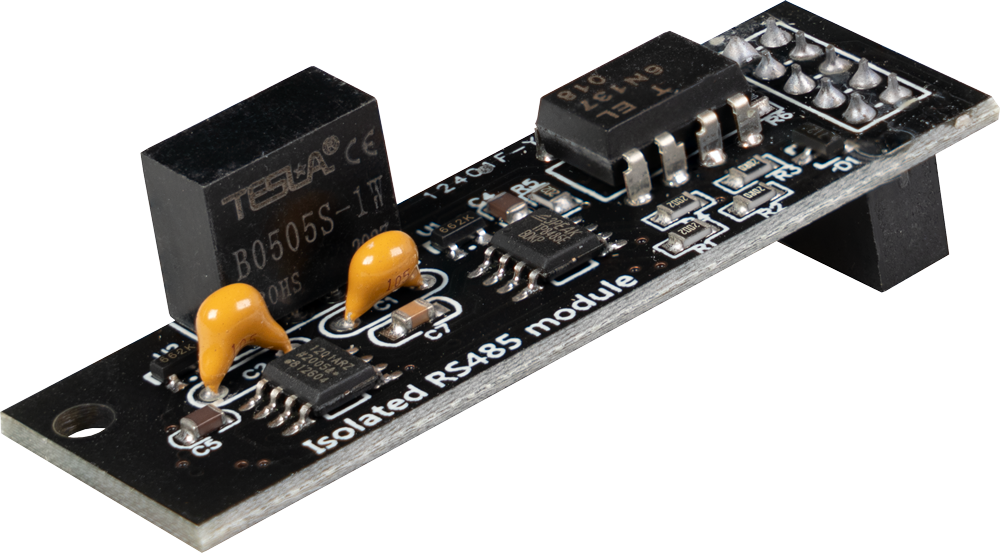

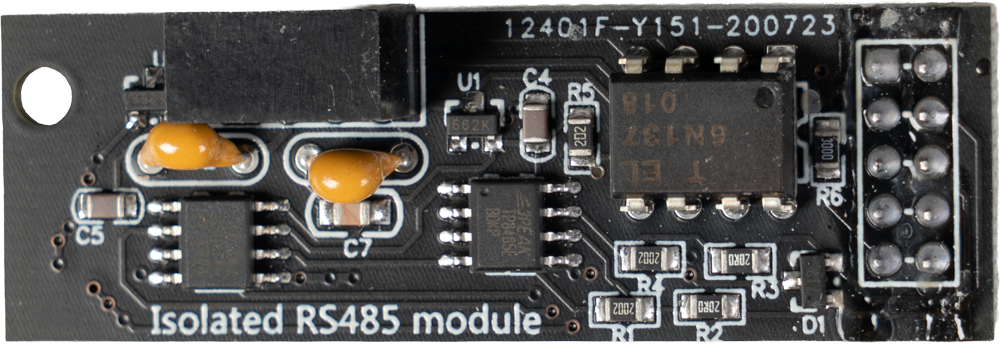

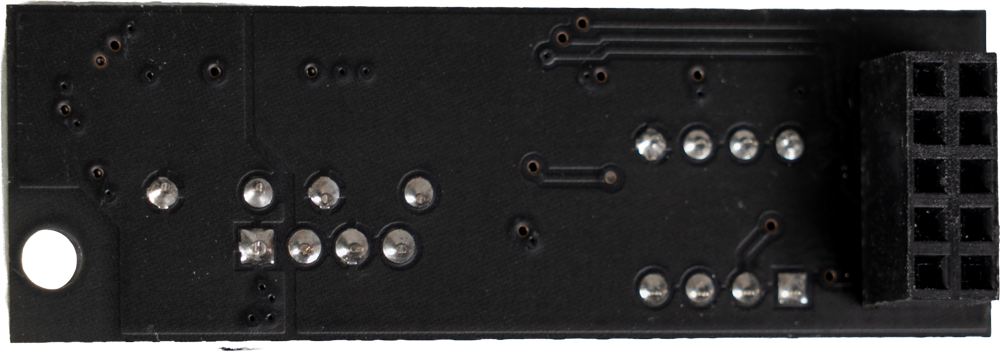

The TTL-to-RS485 communication module was developed specifically for the DPM8600 series devices and enables simple, reliable integration into industrial communication networks. Thanks to its precise plugin design, the module is installed directly on the rear of the device and is ready for immediate use. , complex wiring or additional hardware adjustments are not necessary, which significantly reduces integration time and sources of error.

During operation, the module converts the device's internal TTL UART interface into a robust RS-485 interface and supports the widely used Modbus RTU protocol. This allows individual or multiple devices to be easily integrated into higher-level control, monitoring, or automation systems. Even larger networks with many participants can be implemented stably and reliably.

A special feature of the module is the galvanic isolation between the device electronics and the fieldbus. This isolation effectively protects the connected device from ground loops, overvoltages, and electromagnetic interference from the bus environment. This is supplemented by integrated protection mechanisms such as ESD and overvoltage protection, which ensure safe operation even under harsh industrial conditions.

Thanks to its device-specific design, the communication module is optimally matched to the DPM8600 series in terms of electrical, mechanical, and functional characteristics. It represents a professional and reliable solution for integrating measuring and network devices into modern, distributed systems and is ideal for applications in industry, laboratories, development, and automation technology.
