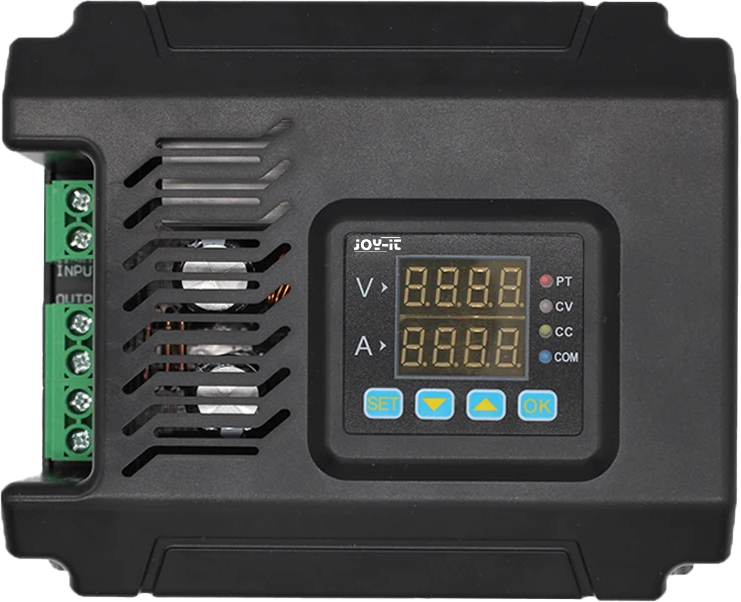

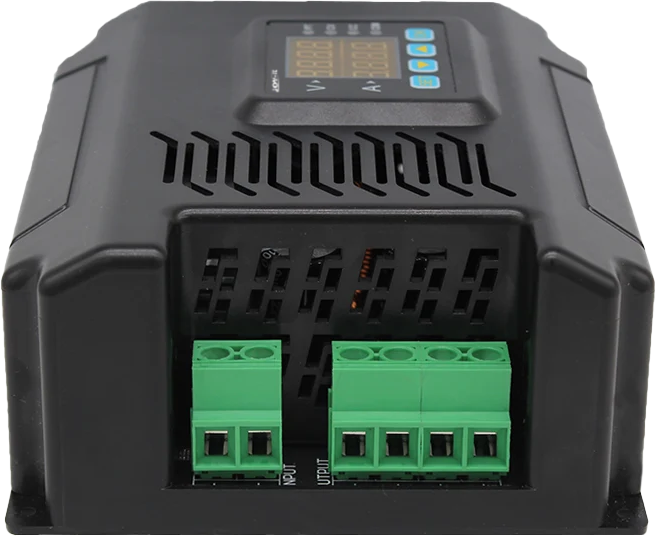

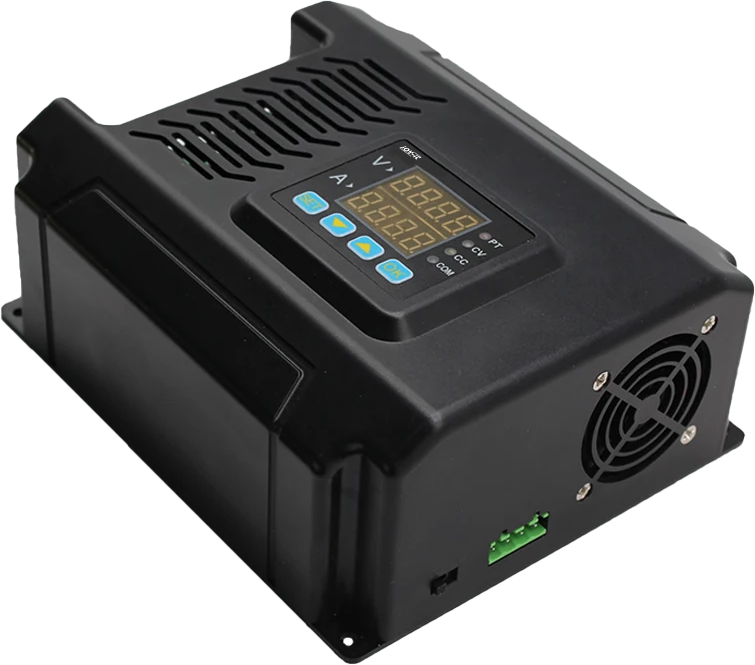

DPM8650 laboratory power supply
The JT-DPM8650 is a programmable buck power supply. This power supply has both a constant voltage and a constant current mode.
Thanks to the Modbus RS-485 interface, it is also possible to make all settings conveniently from a PC using free software.
A wireless remote control for this power supply unit is available as an optional accessory. This enables remote access (up to 10 m without obstacles) to all settings and data.
Specifications
Interface
Modbus RS-485
Power supply
10 - 75 V
Output voltage
0 - 60 V
Output current
0 - 50 A
Output power
0 - 3000 W
Voltage resolution
10 mV
Ripple
< 50 mVpp
Response time
< 50 ms
Display accuracy (tension)
10 mV
Display accuracy (current)
10 mA
Voltage fault tolerance
0,2 % + 1 Ziffer
Current fault tolerance
0,5 % + 2 Ziffer
Operating temperature
-10 °C bis 45 °C
Additional information
Dimensions
180 x 150 x 77 mm
Weight
2200 g
Items shipped
DPM8650 Laboratory power supply unit
EAN
4250236827469
Article No.
JT-DPM8650
