DPS5005 DC/DC Voltage Converter

Discover the innovative voltage module that combines precision and flexibility in a slim, compact housing. Whether prototyping, series production or mobile applications - this device always provides you with stable power in constant voltage and constant current modes, exactly when it matters. With its robust design, it is ideal for daily use in the laboratory, in the workshop or on the move.

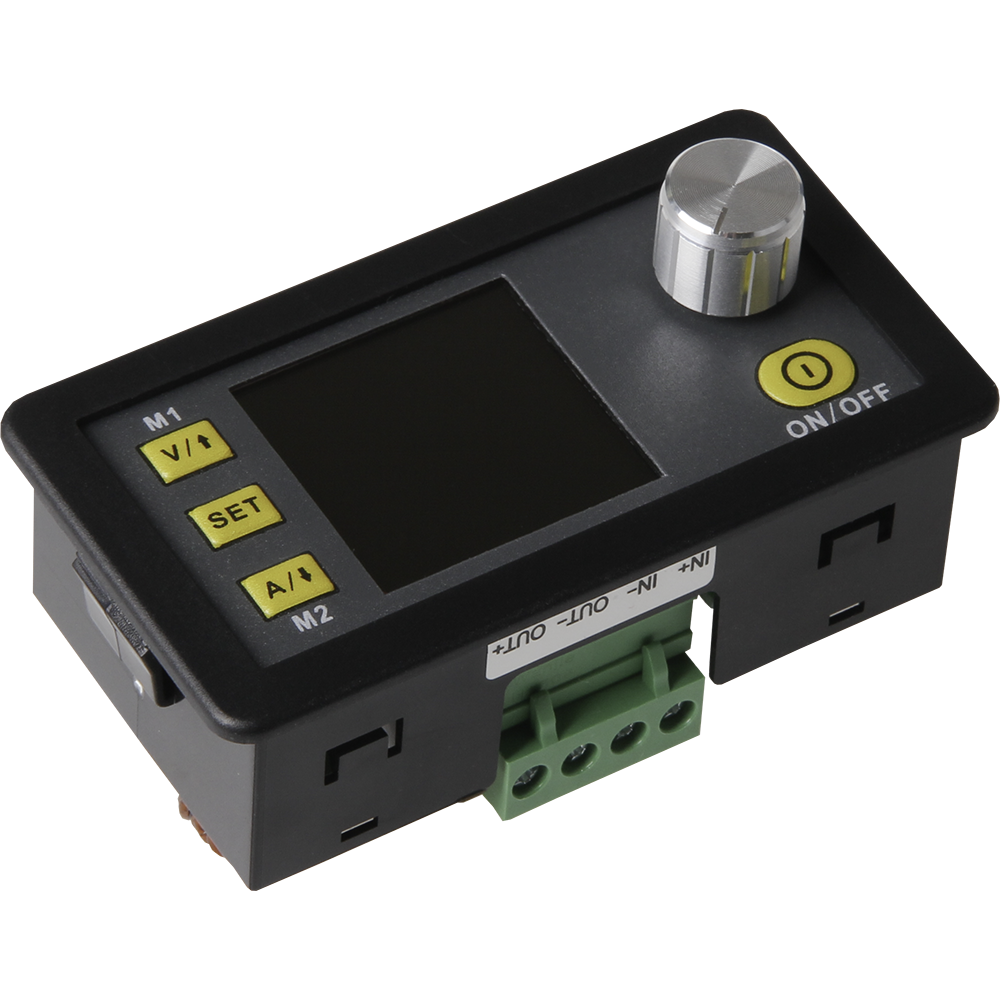

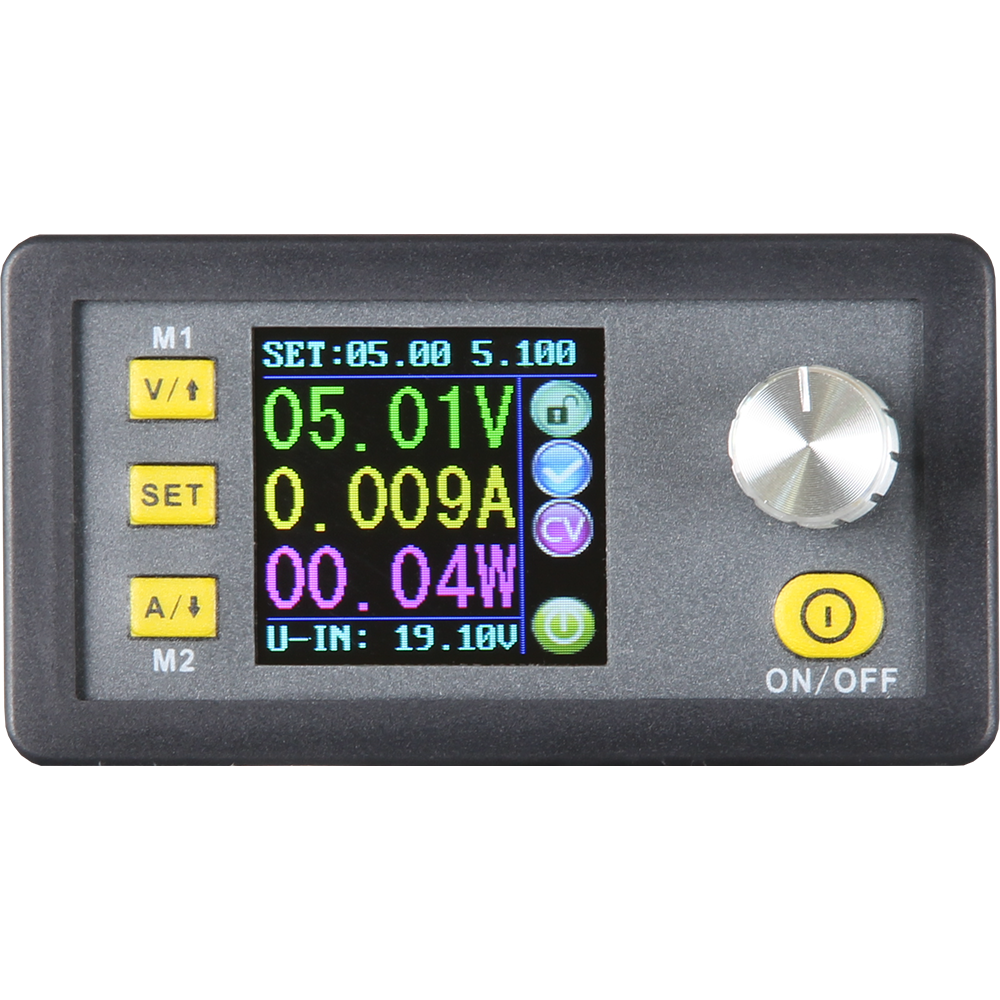

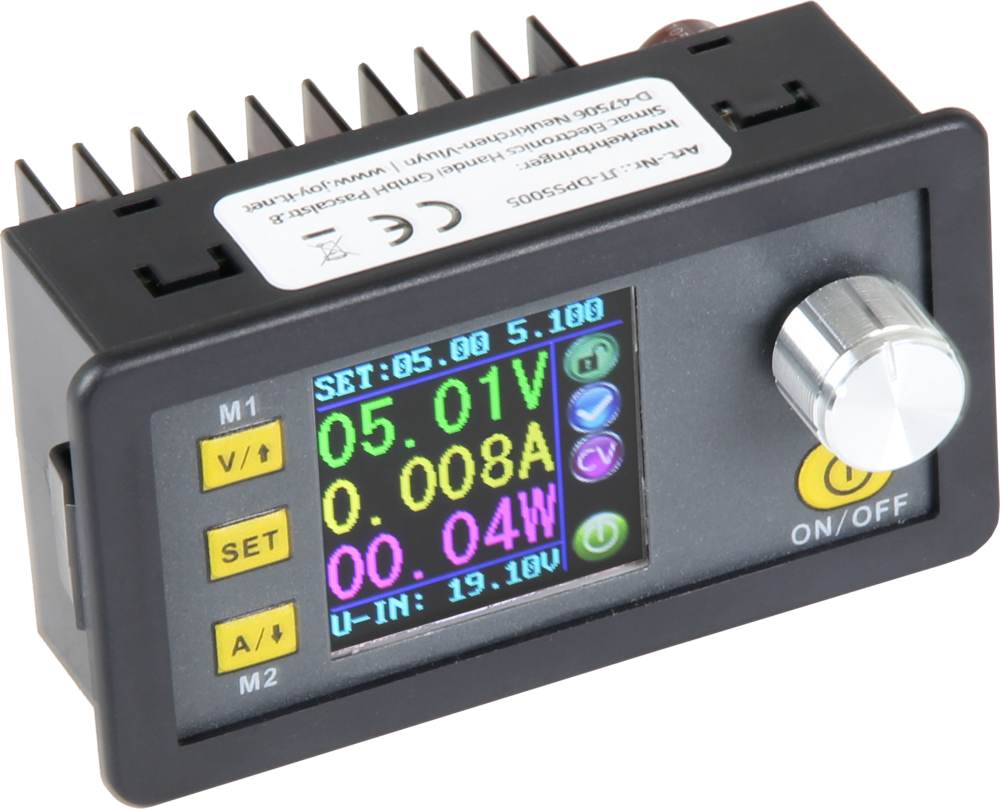

The high-resolution color display attracts everyone's attention and gives you a clear overview of the voltage, current and operating status at a glance. The combination of a handy rotary control and three precise buttons allows intuitive operation so that you can adjust your parameters in seconds - without complicated menus or lengthy training.

Thanks to its modular design, the module adapts perfectly to your individual requirements: Equip it with a custom-fit housing, connect it directly to your PC via USB or control it wirelessly via a BT connection. This allows you to integrate it seamlessly into existing measurement and automation environments and retain full control in every situation - both locally and remotely.

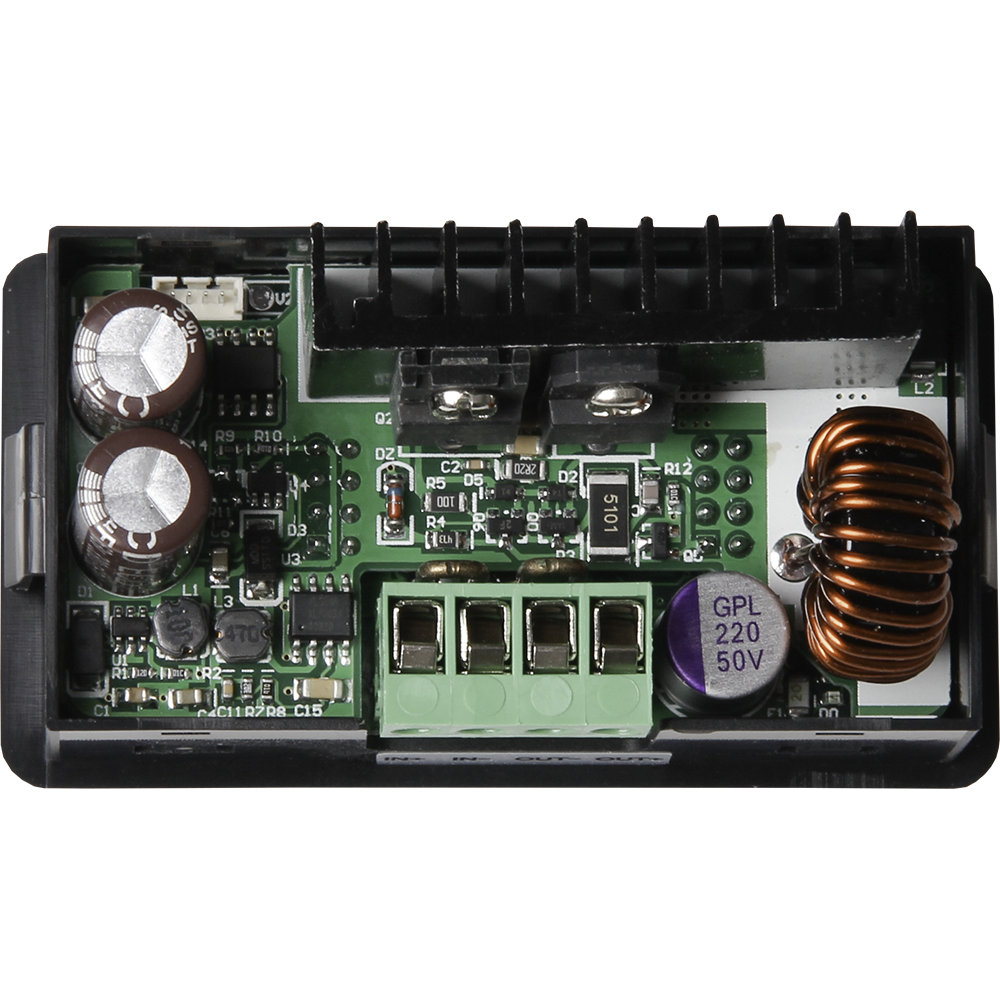

With state-of-the-art components and sophisticated power supply technology, this module minimizes interference and power losses, ensures low ripple and high efficiency. Increase your productivity, reduce downtimes and rely on a device that meets the highest quality standards - for results that inspire and impress in the long term.

Specifications

Input voltage range

6 - 55 V (DC)

Output voltage range

0 - 50 V (DC)

Output current range

0 - 5 A

Output power range

0 - 250 W

Voltage resolution

0,01 V

Current resolution

0,001 A

Ripple

100 mV(pp) at maximum resolution

Available modes

Constant current (CC), constant voltage (CV)

Display size

1,44" (3,66 cm)

Housing cut-out

39 x 71 mm

Additional information

Dimensions

42 x 45 x 80 mm

Weight

88 g

Items shipped

DPS5005

EAN

4250236817354

Article No.

JT-DPS5005
