DPS5015

DPS5015

DPS5015

This programmable module for controlling voltage with a constant voltage and current which together is an analog integration and digital controll of functions in one device.

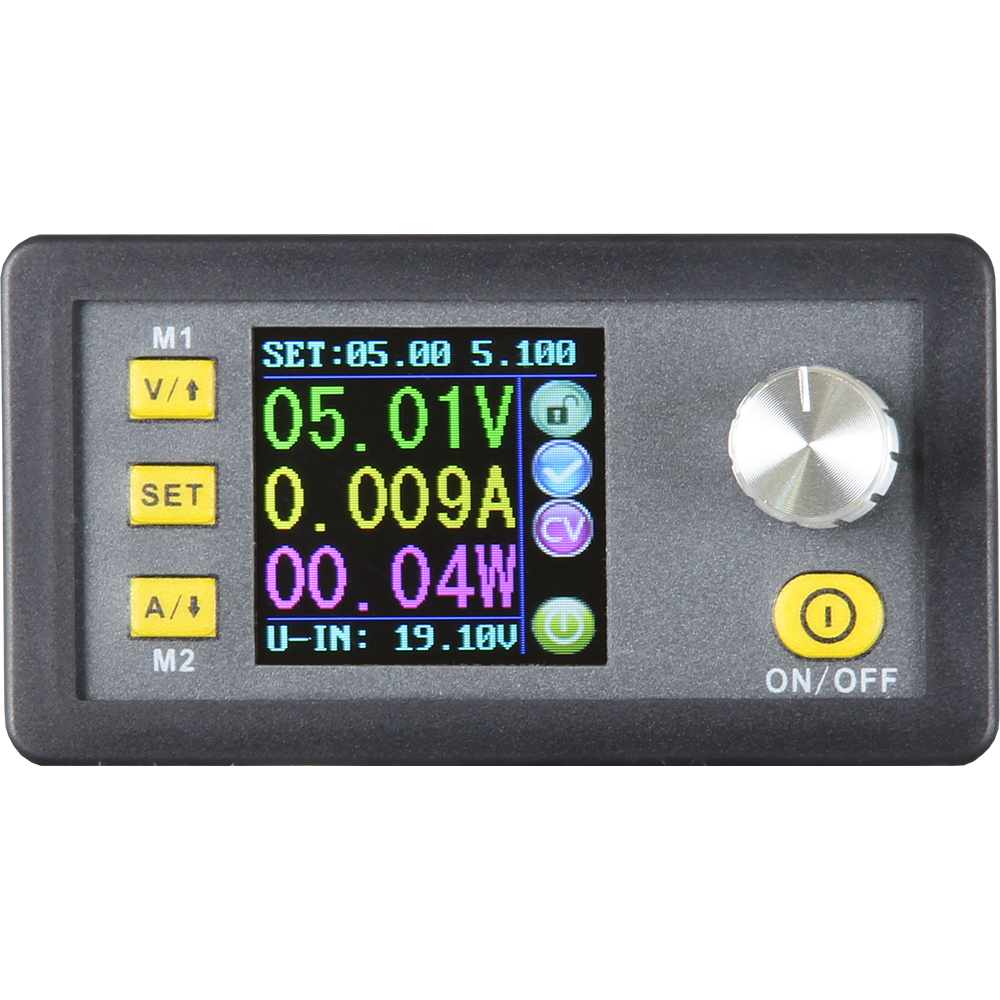

This device has an internal storage and a color OLED Display with 3,6 cm (1.44'') to display fast important data. All needed settings are set up with three buttons and a knob,

This high precision and compact structure enables a huge area of application.

High-quality components and the possibility of communication interfaces make the power supply stand out.

In addition, you can supplement the laboratory power supply with the optionally available housing, BT and USB modules. Thus your laboratory power supply receives a suitable housing and you can communicate via USB or BT with the laboratory power supply, retrieve data and make settings.

Specifications

Specifications

Model

DPS5015

Special features

Remote control, programmable, slim design

Input Voltage

6 - 60V (DC)

Output Voltage

0 - 50V

Output Current

0 - 15A

Output Power

0 - 750W

Voltage resolution

0,01V

Current resolution

0,01A

Ripple

100mV (pp) at maximum load

Display Size

1,44“

Display Module Size

80 x 42 x 45 mm

Power Module Size

40 x 67 x 91 mm

Weight

152g

Items Shipped

DPS5015, 2x Connection cable, 4x forked cable lug

EAN

4250236817361

Article No.

JT-DPS5015
