Laser Rangefinder

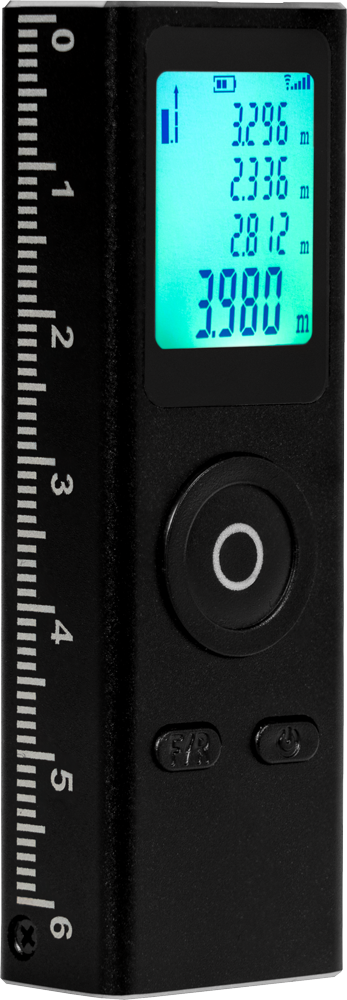

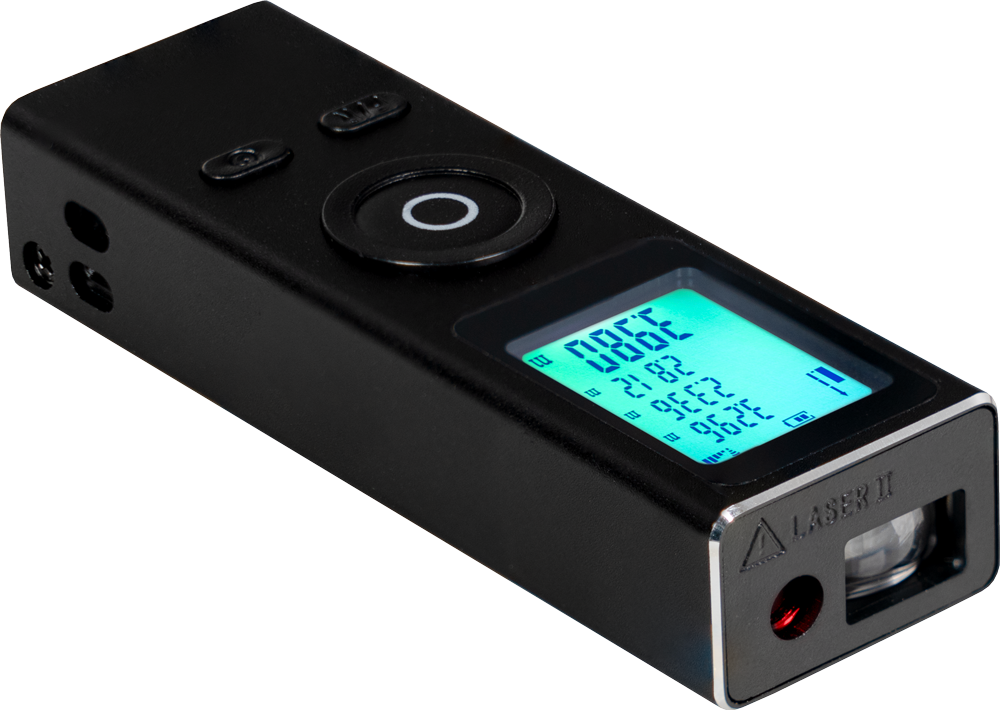

The ultra-compact JT-LDM01 laser rangefinder impresses with its high-quality aluminum housing and allows precise measurements up to 30 meters away. With an accuracy of ±2 mm, you are always up to even the most demanding tasks, while the light weight of just 28 g ensures that you can stow this measuring tool away effortlessly. The uncomplicated charging via USB-C is also impressive and makes the JT-LDM01 a reliable companion for professional applications and ambitious DIY projects.
In addition to exact individual measurements, the device even supports indirect measurements thanks to the Pythagoras function, giving you maximum flexibility. In addition, the JT-LDM01 allows you to quickly and easily determine areas and volumes so that you always have a solid basis for planning your work. In difficult lighting conditions or in larger rooms, the continuous measurement helps you to achieve accurate results and maintain an overview.
Thanks to the high-quality materials and well thoughtout design, the laser rangefinder always works reliably, even under changing conditions. Whether on the construction site, in the workshop or when renovating at home: The JT-LDM01 adapts flexibly to your requirements and can be used in temperatures between 0 and 40 °C without any problems.
Its ultra-compact format makes it ready to hand at all times, and the included lanyard provides additional safety. Rely on reliable performance, consistent precision and advanced design - making measuring a pleasure in any situation.
Specifications
Special features
Up to 30 meters measuring distance
Ultra compact aluminum housing
Rechargeable via USB-C
Area calculation & volume calculation
Continuous measurement & Pythagoras calculation
Measuring range
0,03 - 30 m
Measuring accuracy
± 2 mm, under unfavorable conditions: ± 3 mm
Available units
Meters, inches, feet
Smallest display unit
1 mm
Battery
250 mAh LI-ION battery, rechargeable via USB-C (5 V, 1 A)
Laser class
2
Laser wavelength
620 - 670 nm
Laser strength
< 1 mW
Housing material
Aluminum
Measurement methods
Single measurement, continuous measurement
Calculation methods
Area calculation, volume calculation, Pythagoras
Measuring position
Adjustable: front edge / rear edge of the measuring tool
Operating temperature
0 - 40 °C
Storage temperature
-20 - 60 °C
Air humidity
80 % (not condensing)
Additional information
Dimensions
68,5 x 22 x 13,5 mm
Weight
28 g
Items shipped
JT-LDM01, USB-C charging cable, lanyard
EAN
4250236828961
Article No.
JT-LDM01
