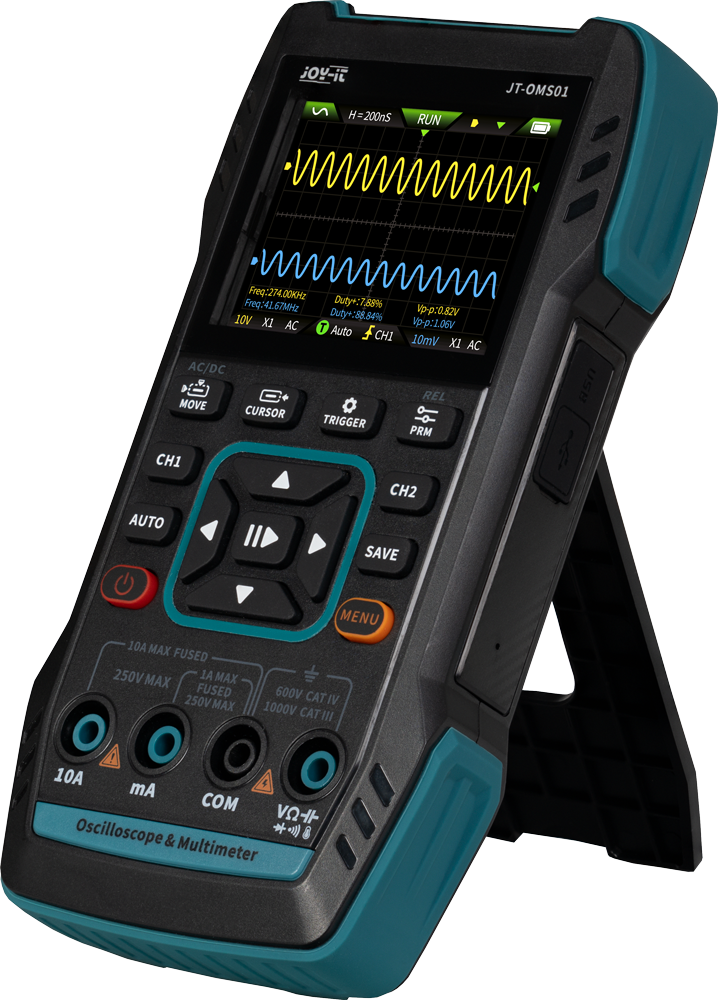

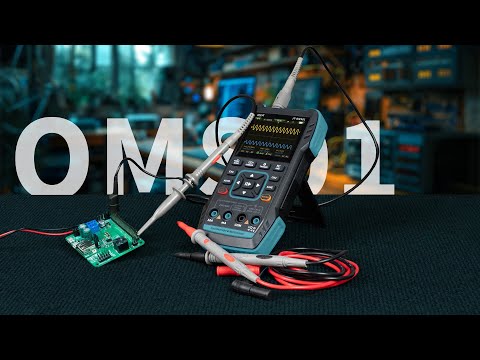

OMS01 3-in-1 Handheld oscilloscope
Discover the ultimate tool for electronics enthusiasts and professionals - our 3-in-1 handheld oscilloscope! With this versatile device, you not only get a high-precision 2-channel oscilloscope, but also a powerful multimeter and a versatile signal generator - all in a handy, portable design.
With our handheld oscilloscope, you can easily monitor and analyze electronic signals to perform accurate measurements and diagnostics. The 2-channel function allows you to capture and compare different signals simultaneously, helping you to identify problems and find solutions faster.
Specifications
Special functions

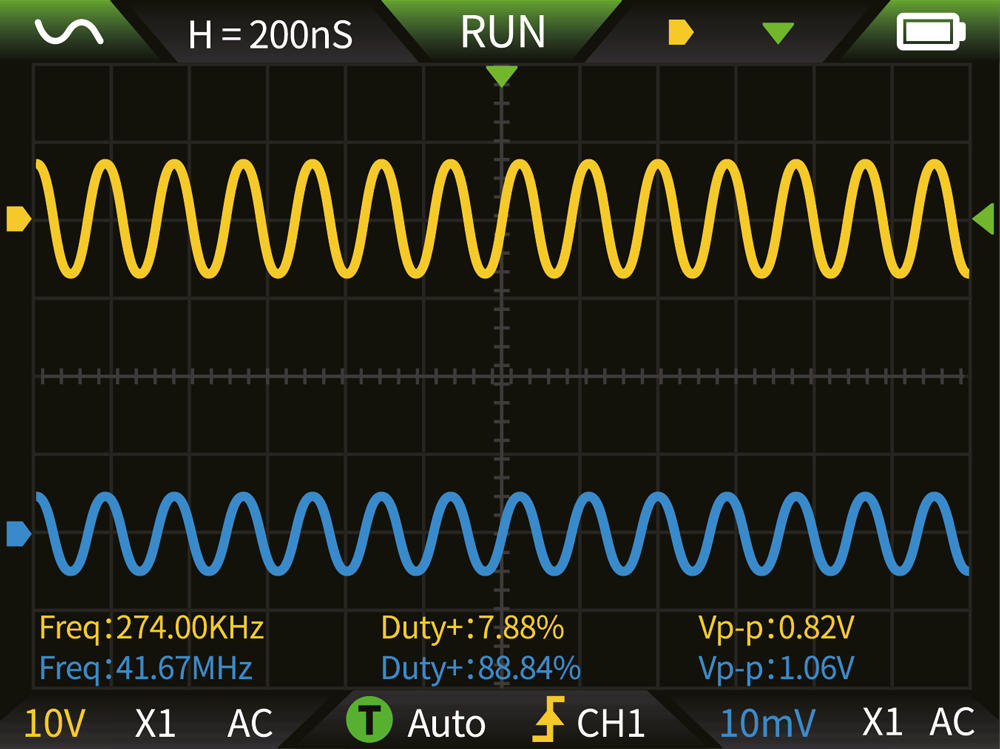

2-channel oscilloscope,
multimeter,
signal generator,
Waveform can be saved as a screenshot

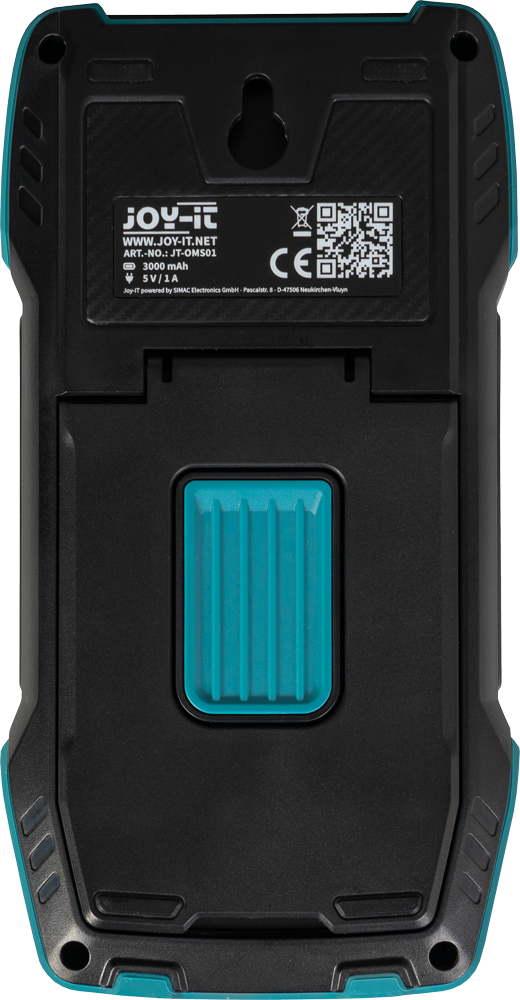

Integrated stand
Display
2.8“ (7.11 cm) display
(320 x 240) pixels
Battery
3000 mAh lithium battery (rechargeable via USB-C 5 V / 1 A)
Included manual

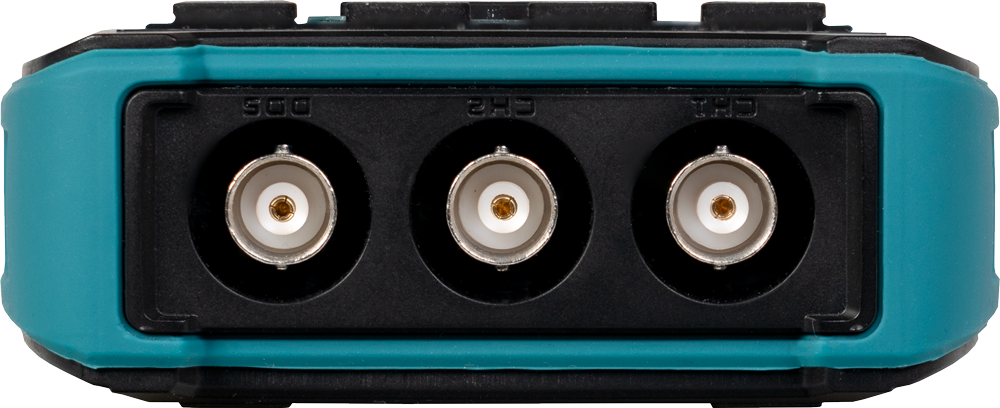

Channels (Oscilloscope)
2
Sampling rate (Oscilloscope)
50 MSa/s
Analog bandwidth (Oscilloscope)
10 MHz
Internal memory (Oscilloscope)
32 kB
Impedance (Oscilloscope)
1 MΩ
Time base range (Oscilloscope)
50 ns - 10 s
Vertical sensitivity (Oscilloscope)
20 mV/div - 10 V/div (X1)
Measurable voltage (Oscilloscope)
0 - 400 V
Trigger modes (Oscilloscope)
Auto, Normal, Single
Trigger types (Oscilloscope)
Rising edge,
Falling edge
Coupling (Oscilloscope)
AC, DC

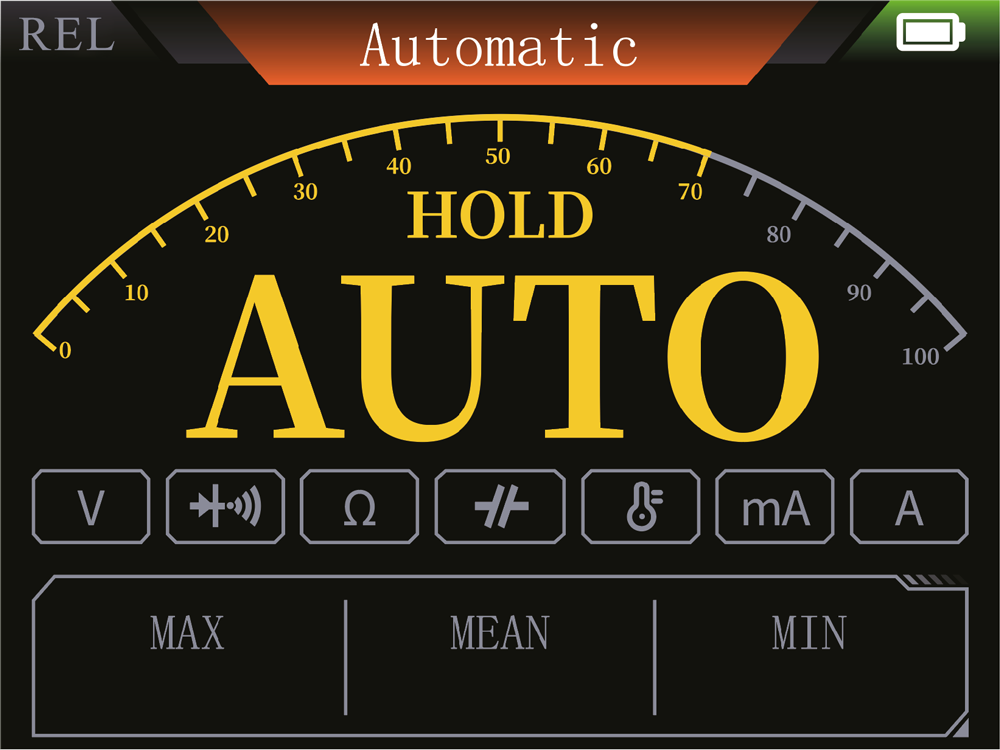

Voltage measuring range (Multimeter)
0 - 999,9 V (DC), 0 - 750 V (AC)
Measuring range current (Multimeter)
0 - 9,999 A (DC & AC)
Measuring range resistance (Multimeter)
9 - 99,99 MΩ
Measuring range capacitance (Multimeter)
0 - 99,99 mF
Temperature measuring range (Multimeter)
-55 - 1300 °C
Voltage accuracy (Multimeter)
DC: ±(0,5% + 3 Digits)
AC: ±(1% + 3 Digits)
Current accuracy (Multimeter)
DC: ±(1,2% + 3 Digits)
AC: ±(1,5% + 3 Digits)
Resistance accuracy (Multimeter)
0 - 999,9 Ω: ±(0,5% + 3 Digits)
> 1000 Ω ± (1,5% + 3 Digits)
Capacity accuracy (Multimeter)
0 - 9,999 nF: ±(0,5% + 3 Digits)
> 10 nF ±(5,0% + 20 Digits)
Temperature accuracy (Multimeter)
±(2,5% + 5 Digits)
Other functions (Multimeter)
Measurement of diodes,
continuity testing,
Detection of live wires

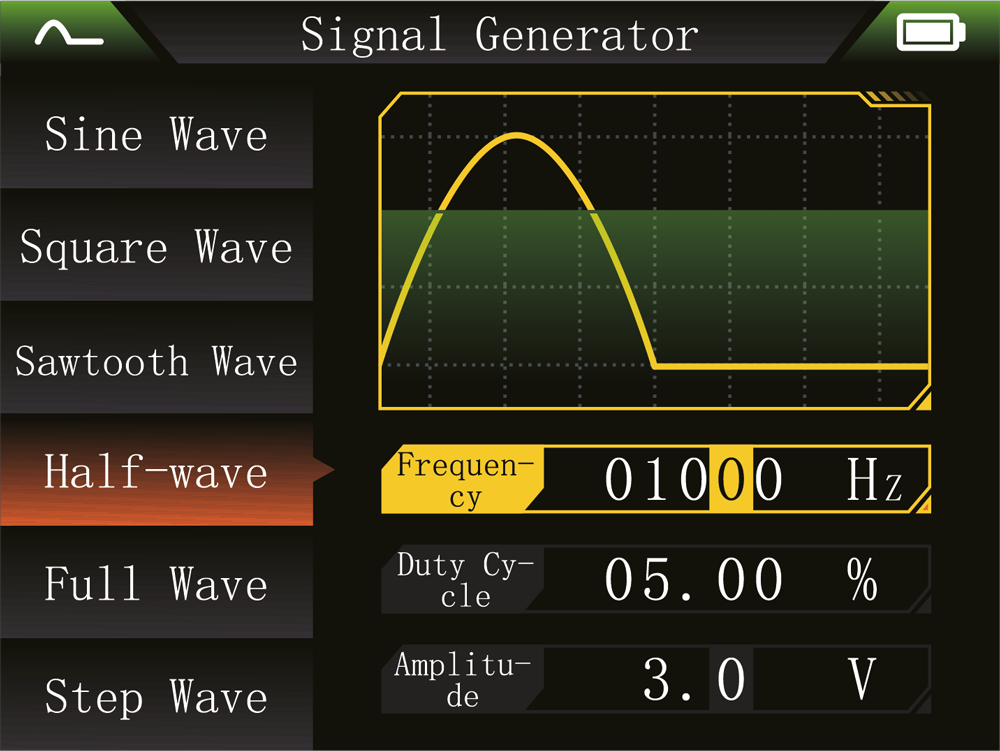

Waveforms
Sine, square, triangle, full wave, half wave, noise wave, DC
Output frequency
1 Hz - 2 MHz
Output amplitude
0,1 - 3,3 V
Additional information
Dimensions
167 x 89 x 35 mm
Weight
300 g
Items shipped

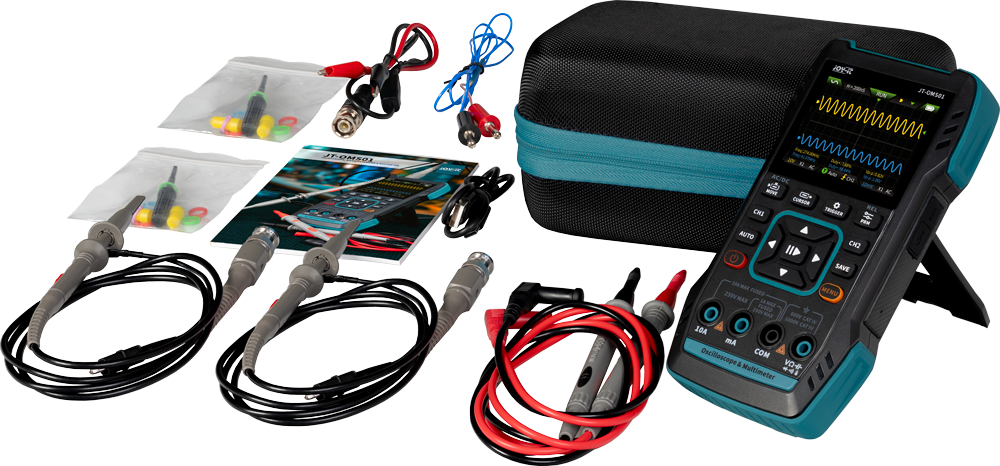

JT-OMS01, manual, USB-C cable, 2x test probes, 1x test clamp, 1x oscilloscope probe
EAN
4250236827155
Article No.
JT-OMS01
