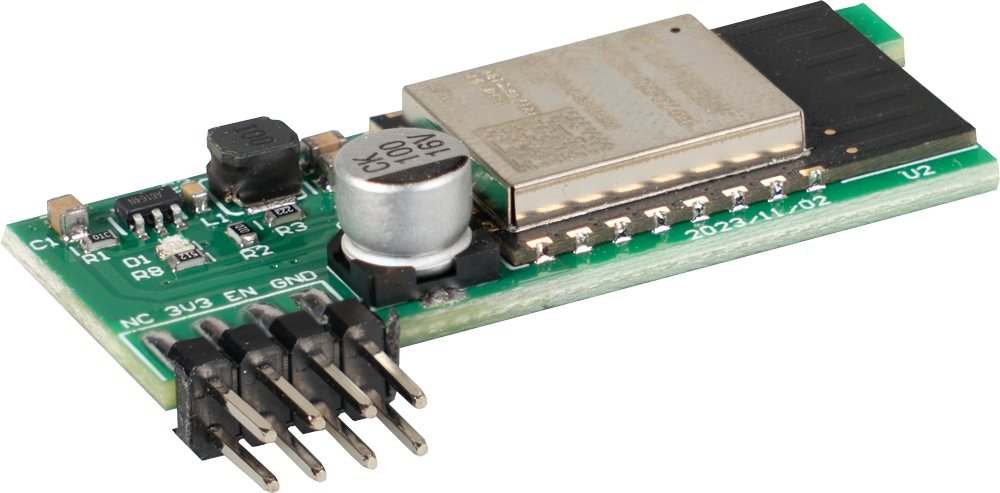

The JT-PS-Wifi01 is a compact WiFi expansion module designed to add wireless control and monitoring capabilities to compatible laboratory power supplies. It is fully compatible with the JT-RD6006, JT-RD6012, and JT-PS1440, enabling convenient remote operation without the need for a direct cable connection.

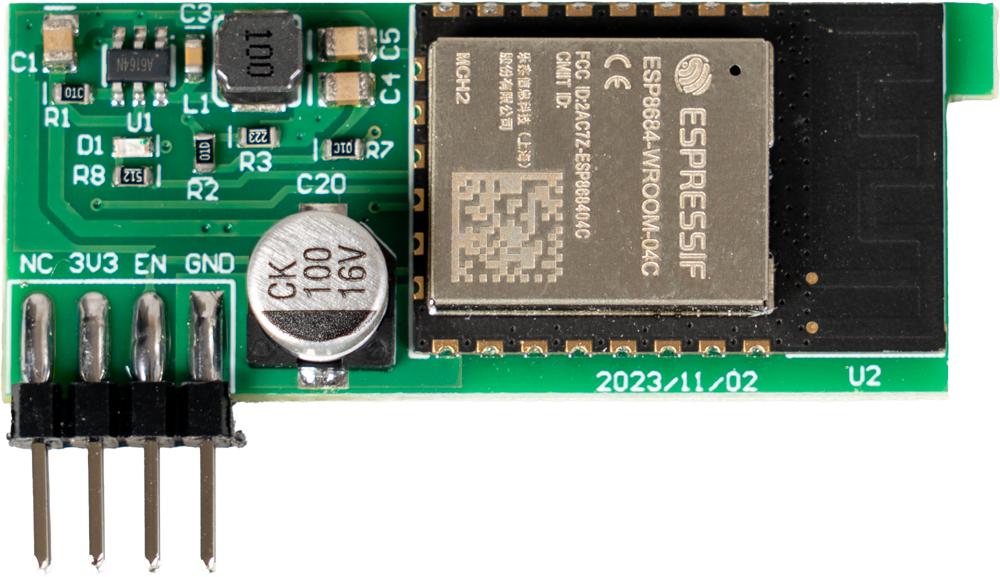

Powered by the ESP8684-WROOM-04C and supporting 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n), the module allows reliable communication via a mobile app or Windows software. Key parameters such as output voltage, current, and operating status can be monitored and adjusted remotely, making it ideal for development labs, test benches, and automated setups.

Installation is quick and straightforward: the JT-PSWifi01 plugs directly into the dedicated slot on the rear side of the power supply. No additional wiring or hardware modifications are required, ensuring a clean and professional integration.

An additional benefit of the JT-PS-Wifi01 is its suitability for structured and repeatable test workflows. By enabling remote access via WiFi, the power supply can be integrated more easily into automated test environments or controlled from a central workstation. This allows users to monitor multiple devices simultaneously, adjust settings without physical interaction, and improve overall workflow efficiency— especially in professional laboratories, production testing, and educational environments.

With the JT-PS-Wifi01, a standard laboratory power supply becomes a network-enabled, remotely controllable power source, significantly enhancing flexibility, efficiency, and ease of use for professional and advanced users alike.
