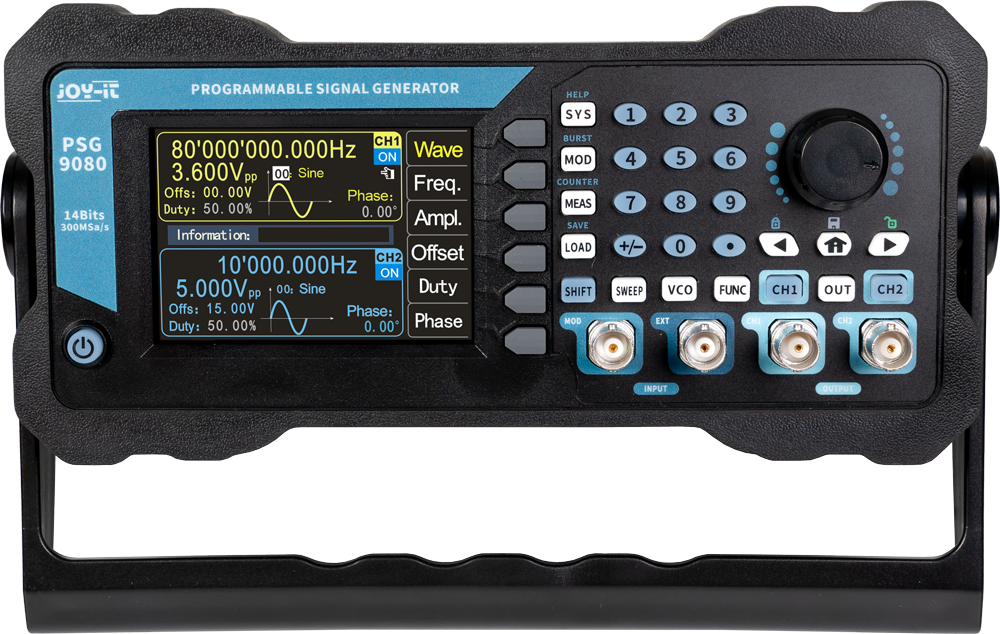

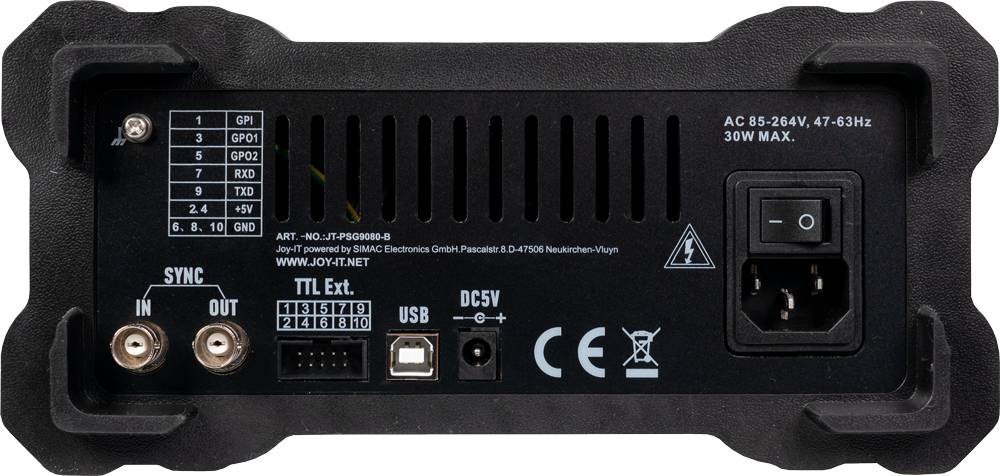

PSG9080B signal generator
The programmable signal generator PSG9080 can generate many different waveforms such as sine, square, triangle, pulse and user-defined waves. The signal generator has a wide frequency range from 1nHz to 80MHz and a sampling rate of 300 MSa/s. The housing has a high-quality finish and offers non-slip feet to ensure a comfortable working environment.
Different signal modulation methods, such as frequency modulation, phase modulation, amplitude modulation, pulse width modulation and frequency shift keying, are no longer a challenge with this device. The integrated measuring function also makes it possible to measure the frequency, period and duty cycle of external signals and display them on the screen in real time.
The signal generator is very easy to operate with its intuitive button layout and high-resolution 3.5-inch color LCD. Moved settings can be saved in groups and thus called up again very quickly. The menu can also be displayed in German, English and French.
Specifications
Display type
TFT color LC display
Display size
3,5“ (8,89 cm)
Connection
BNC signal terminals
Special features
2-channel signal generator, 1-channel frequency counter, various modulation functions, sweep function,
VCO function
Modulation functions
AM, FM, PM, ASK, FSK, PSK, PWM, Burst
Sampling rate
300 MSa/s
Vertical wave resolution
14 Bit
Signal shapes
Lorentz pulse, pulse, half-wave, noise, exponential rise/fall and much more
Min. frequency resolution
1 nHz
Frequency accuracy
± 5 ppm
Frequency stability
± 3 ppm/Year
Permissible operating temperature
0 - 40 °C
Permissible operating humidity
< 80 %
Input voltage
85 V - 264 VAC / 47 - 63 Hz
Frequency range (Sine)
1 nHz - 80 MHz
Frequency range (Rectangle, Pulse)
1 nHz - 30 MHz
Frequency range (Triangle, arbitrary)
1 nHz - 50 MHz
Frequency range (TTL)
1 nHz - 20 MHz
Additional information
Dimensions
219 x 240 x 160 mm
Weight
1030 g
Items shipped
Signal generator, 2x BNC signal terminals, connection cable
EAN
4250236827636
Article No.
JT-PSG9080B
