PSM01 Compact Power Supply
The PSM01 compact power supply combines maximum performance and maximum flexibility in an ultracompact housing. With an output power of up to 150 W, it is ideal for demanding applications that require a reliable and precise power supply. Thanks to the USB-C and DC connections, it is versatile and compatible with a wide range of devices and systems.
Important: A power supply unit is not included. You can choose the power source to suit your application and flexibly integrate the PSM01 into your setup.
A particular highlight is the 2.8-inch color display, which provides clear and precise information on the current voltage and power supply with a resolution of 320 x 240 pixels. The angle of the display is infinitely adjustable so that you can adapt it perfectly to your viewing conditions at any time. This makes working with the power supply unit even more convenient and clearer - whether on the workbench or in mobile use.
The PSM01 supports the common fast charging protocols Power Delivery (PD) and Quick Charge (QC) and enables a continuously adjustable output voltage of 0 to 30 V and a maximum output current of 5 A - ideal for precise control in a wide range of applications. At the same time, extensive protection mechanisms, including overvoltage, overcurrent, overload and overtemperature protection, ensure maximum safety. In addition, reverse polarity protection at the input and output protects both the power supply unit and connected devices.
Whether as a versatile laboratory power supply, for mobile applications or as a compact power supply solution for individual projects - the PSM01 compact power supply offers you maximum flexibility, high safety and exceptional performance in the smallest of spaces.
Specifications
Special features
Ultra compact device,
Display angle infinitely adjustable,
Overvoltage, overcurrent & overload protection,
Overtemperature & undervoltage protection,
Input reverse polarity protection,
Output reverse polarity protection,
Protection parameters individually adjustable
Display
2,8" (7,11 cm) Display (320 x 240 Pixel)
Protocol support
PD, QC
Power supply
USB-C, DC power supply unit (Hollow plug 5,5 / 2,5 mm)
Input voltage
DC 5 - 32 V
Input current
100 mA - 5 A
Output voltage
0 - 30 V
Output current
0 - 5 A
Output power
0 - 150 W
Input voltage measurement accuracy
≤ 0,2 % ± 5 mV
Output voltage measurement accuracy
≤ 0,1 % ± 10 mV
Output current measurement accuracy
≤ 0,1 % ± 5 mA (0 - 3,5 A)
Voltage setting accuracy
≤ 0,1 % ± 10 mV
Current setting accuracy
≤ 0,1 % ± 3 mA
Voltage resolution
10 mV
Current resolution
1 mA
Load regulation
0,49 %
Efficiency under full load
96,3 %
Operating temperature
0 - 40 °C
Operating humidity
0 - 75% RH
Additional information
Dimensions
106 x 76 x 28 mm
Weight
178 g

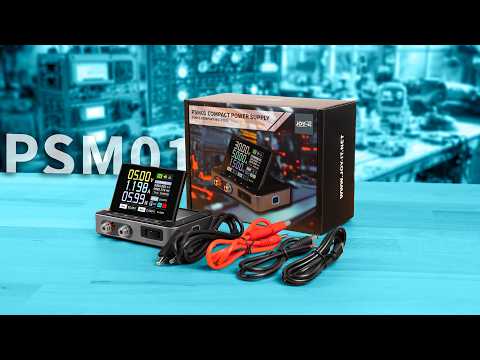

Items shipped
JT-PSM01, USB-C cable, 2x crocodile clip cable, DC connection cable with open strands
EAN
4250236829678
Article No.
JT-PSM01
