UM120 USB-Multimeter

The JT-UM120 is the digital all-round multimeter. USB ports often differ greatly in their quality and available power. With the JT-UM120, you can conveniently keep track of all measured values and also have a quick-charge trigger for mobile communication devices. The versatile display modes, such as overview measurements, detailed measurements and real-time graph view, offer a particularly wide range of analysis options.

Additional functions such as evaluation via separate PC software, automatic, orientation-controlled display rotation, cable resistance measurements round off the overall package.

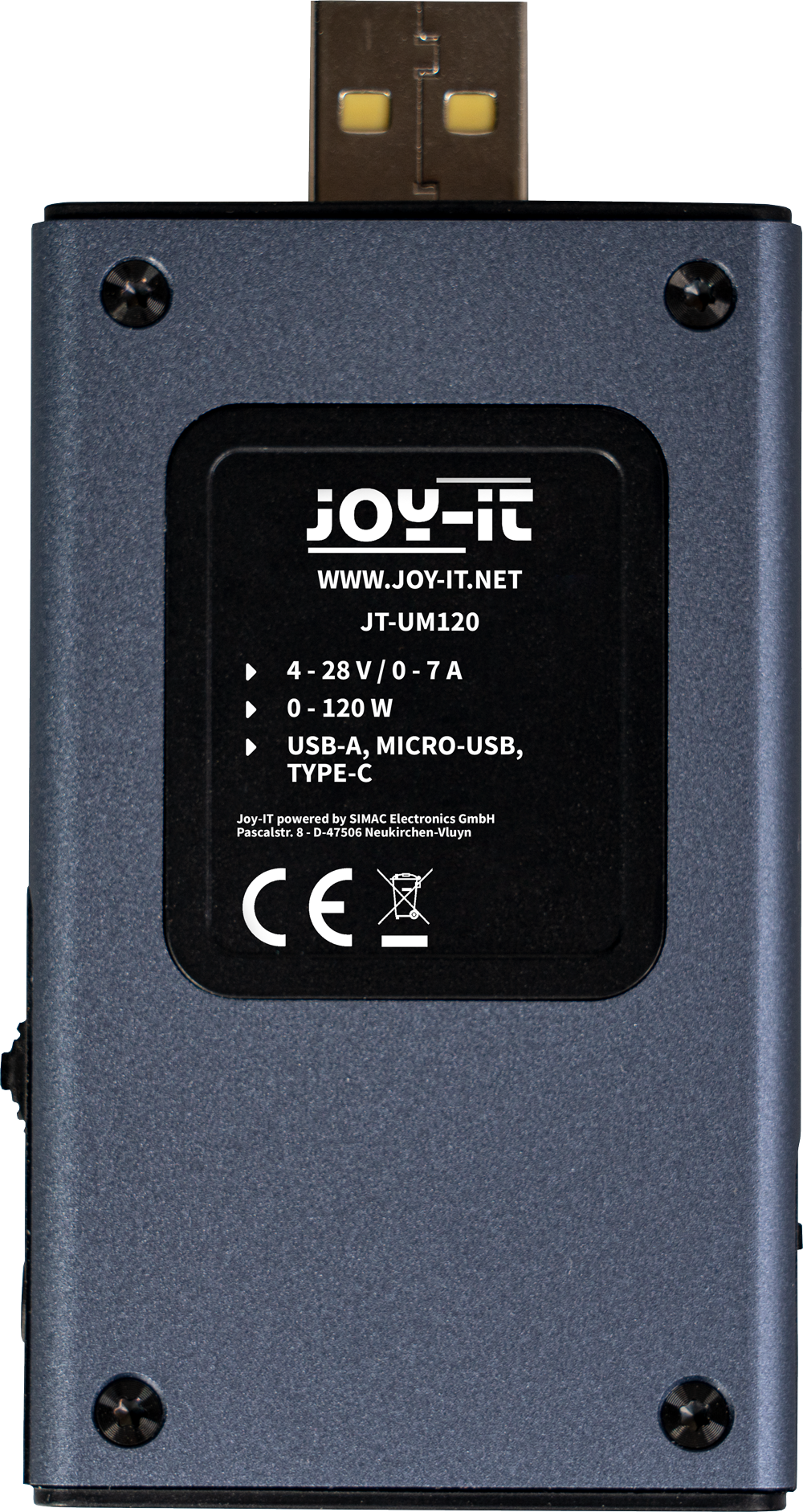

Specifications

Functions

Measuring device for USB applications Measured value output via LCD display Automatic protocol detection Evaluation via PC software Automatic, orientation dependent display rotation

Measurement functions

Current, voltage, energy, power, voltage curve, protocol, cable resistance, ripple

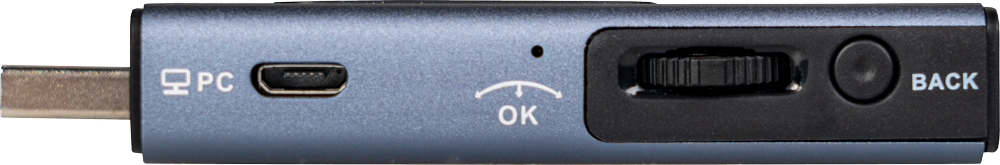

USB ports

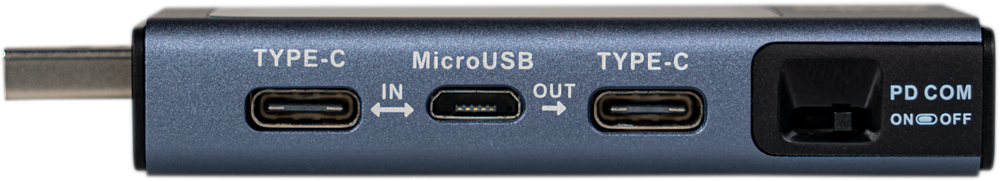

Inputs: USB-A, USB-C, Micro-USB Outputs: USB-A, USB-C PC-Interface: Micro-USB

Possible data measurement groups

10

Supported protocols

QC2.0, QC3.0, Huawei FCP, SCP, Samsung AFC, PD2.0, PD3.0, VOOC/WARP, SuperVOOC 1.0, Super VOOC 2.0, MTK-PE, Apple 2.4A

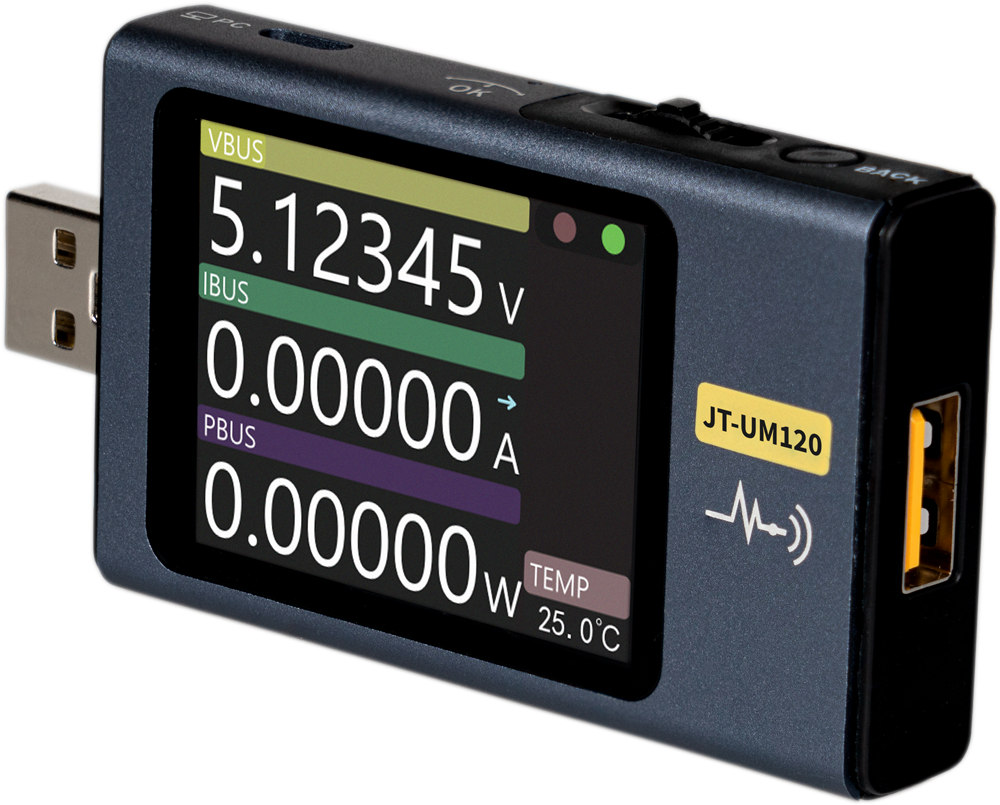

Display

2.0" IPS color display - 320x240 pixels

Languages

German, English

Voltage paramters

Measuring range: 4 - 28 V Resolution: 0,00001 V Accuracy: ± 0,02% + 2 digits

Current parameters

Measuring range: 0 - 7 A Resolution: 0,00001 A Accuracy: ± 0,05% + 2 digits

Power parameters

Measuring range: 0 - 120 W Resolution: 0,00001 W Accuracy: ± 0,05% + 2 digits

Load equivalent internal resistance parameters

Measuring range: 0 - 9999,9 Ω Resolution: 0,0001 Ω Accuracy: ± 0,05% + 2 digits

Capacity parameters

Measuring range: 0 - 9999,99 Ah Resolution: 0,00001 Ah

Energy consumption parameters

Measuring range: 0 - 9999,99 Wh Resolution: 0,00001 Wh

Cable resistance parameters

Measuring range: 0 - 9999,99 Ω Resolution: 0,0001 Ω

Dimensions

82 x 42 x 13 mm

Items shipped

EAN

4250236825939

Article No.

JT-UM120
