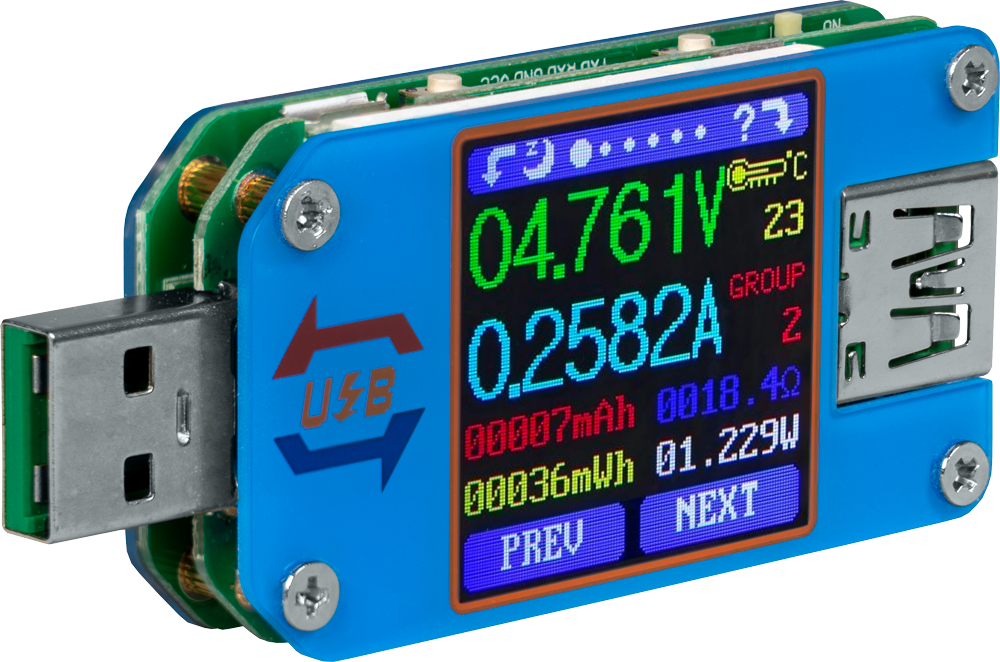

UM25C Measuring Device
The JT-UM25C is your indispensable partner when it comes to monitoring the quality and safety of USB connections. Whether at home or on the road, this compact and powerful measuring device gives you full control over your current and voltage values at all times.

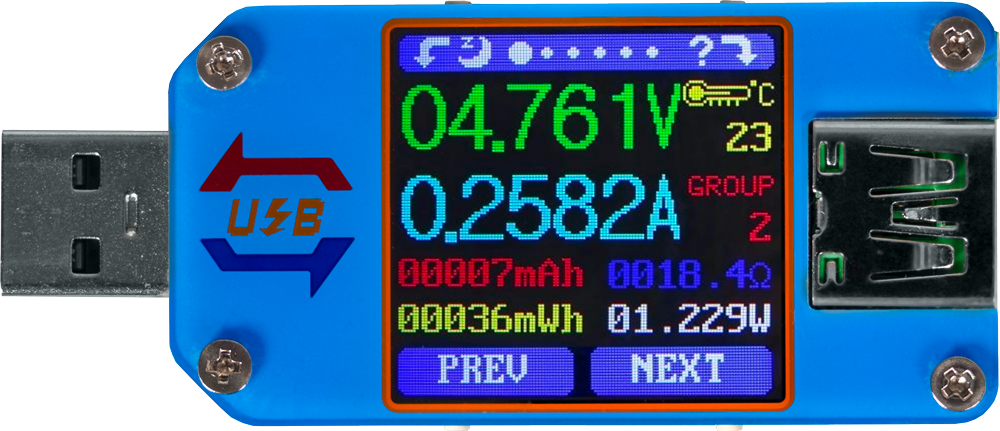

The JT-UM25C supports a variety of fast charging protocols, including Quickcharge 2.0 and 3.0 as well as various Apple and Android standards. So your devices are always optimally supplied. The color 1.44-inch LCD display provides a clear and concise display of all important measurement data, such as current, voltage, energy and temperature.
With a measuring range of 4 to 24 volts and up to 5 amps, the device is suitable for almost any application. The integrated Bluetooth interface is particularly practical, allowing you to conveniently transfer the recorded data to your PC or smartphone. This allows you to carry out detailed evaluations and ensure that your devices are always optimally and safely charged.
Specifications
Special features
Measuring device for USB applications,
Measured value output via LCD display,
Display of current, voltage, energy, power, voltage curve, internal resistance, temperature (int. sensor),
Output via BT for evaluation on PC/smartphone
Display
1,44“ (3,66 cm) Color LCD display
USB Ports
USB2.0, Micro-USB, USB Type-C
Voltage measuring range
4 - 24 VDC
Current measuring range
0 - 5 A
Capacity accumulation range
0 - 99999 mAh
Energy accumulation range
0 - 99999 mWh
Load impedance range
0,8 Ω - 9999,9 Ω
Temperature measuring range
-10 - 100 °C
Time measurement range
0 - 99h 59min 59s
Voltage measurement resolution
0,001 V
Current measurement resolution
0,0001 A
Voltage measurement accuracy
± (0,0005 + 2 digits)
Current measurement accuracy
± (0,001 + 4 digits)
Refresh rate
2 Hz
Communication
BT wireless connection (for evaluation on Smartphone+PC)
Supported protocols
Quickcharge 2.0,
Quickcharge 3.0,
Apple 2.4 A, 2.1 A, 1 A, 0.5 A
Android DCP
Samsung
Additional information
Dimensions
72 x 31 x 13 mm
Weight
23,74 g
Items shipped
JT-UM25C
EAN
4250236817866
Article No.
JT-UM25C
