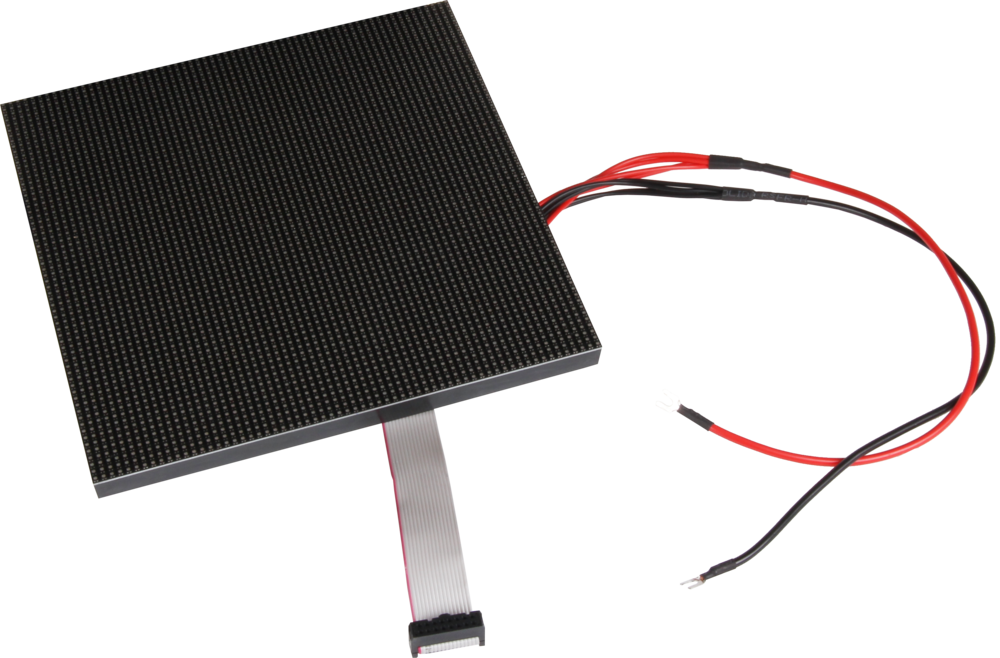

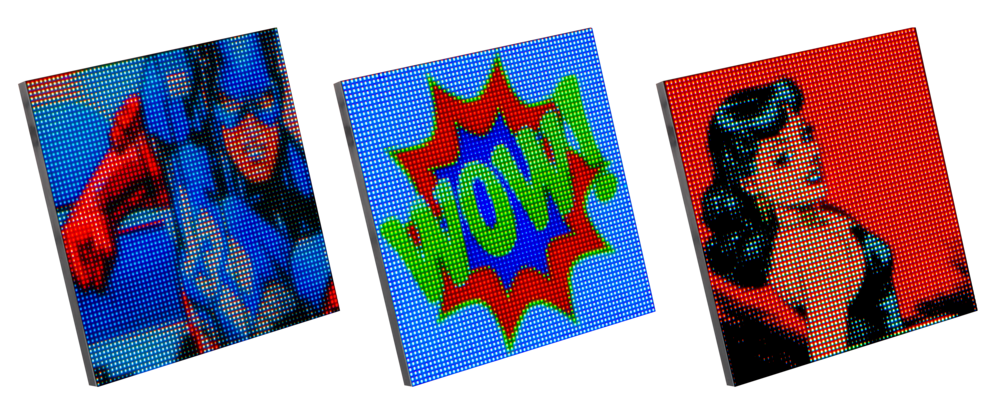

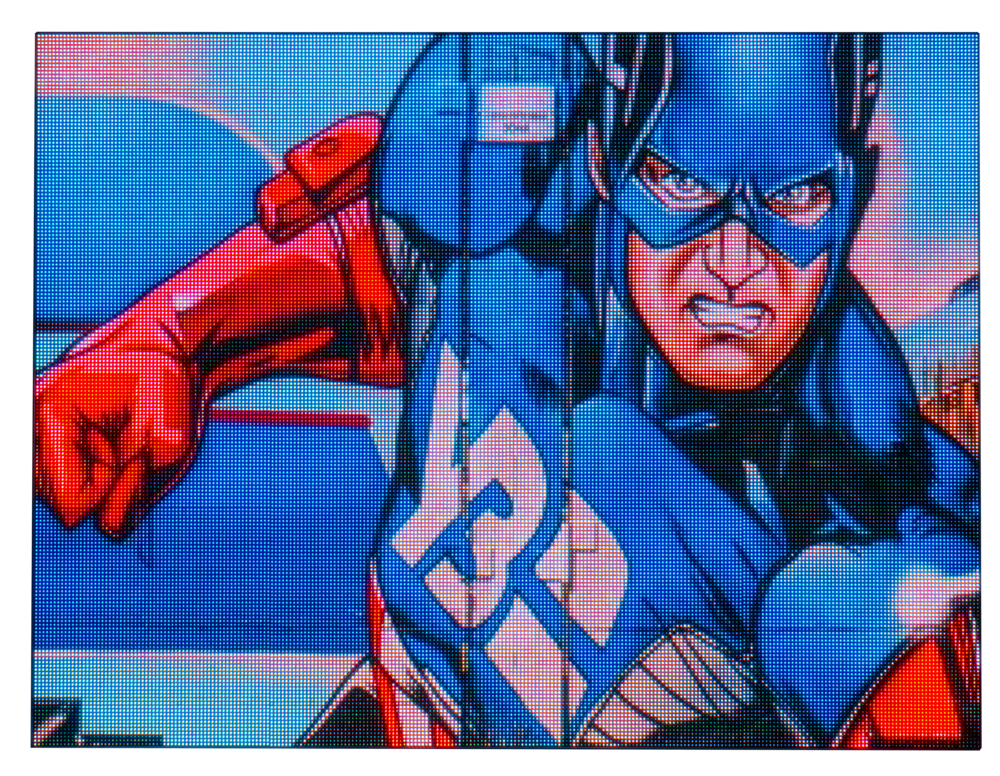

The RGB matrix module is equipped with 4096 LEDs and is characterized by a particularly small grid size of only 3mm. This makes it ideal for pictorial representations. Video sequences can also be displayed.

The module is supplied with the necessary cables. It is perfectly suited in combinations with single board computers like the Raspberry Pi, Arduino, BBC Microbit and many more.

Specifications

Specifications

Display type

RGB-LED

Resolution

64 x 64

Number of LEDs

4096 LEDs

LED distance (pitch)

3 mm

Supply voltage

5 V

Maximum power consumption

40 W

Operating mode

1/32 Scan

Operating temperature

-20 - 55 °C

Viewing angle

140°

Pixel density

111111 Pixel / m²

Brightness

800 cd / m²

Dimensions

192 x 192 x 14 mm

Weight

246 g

Items Shipped

LED-matrix, cabel

EAN

4250236818085

Article No.

LED-Matrix01
