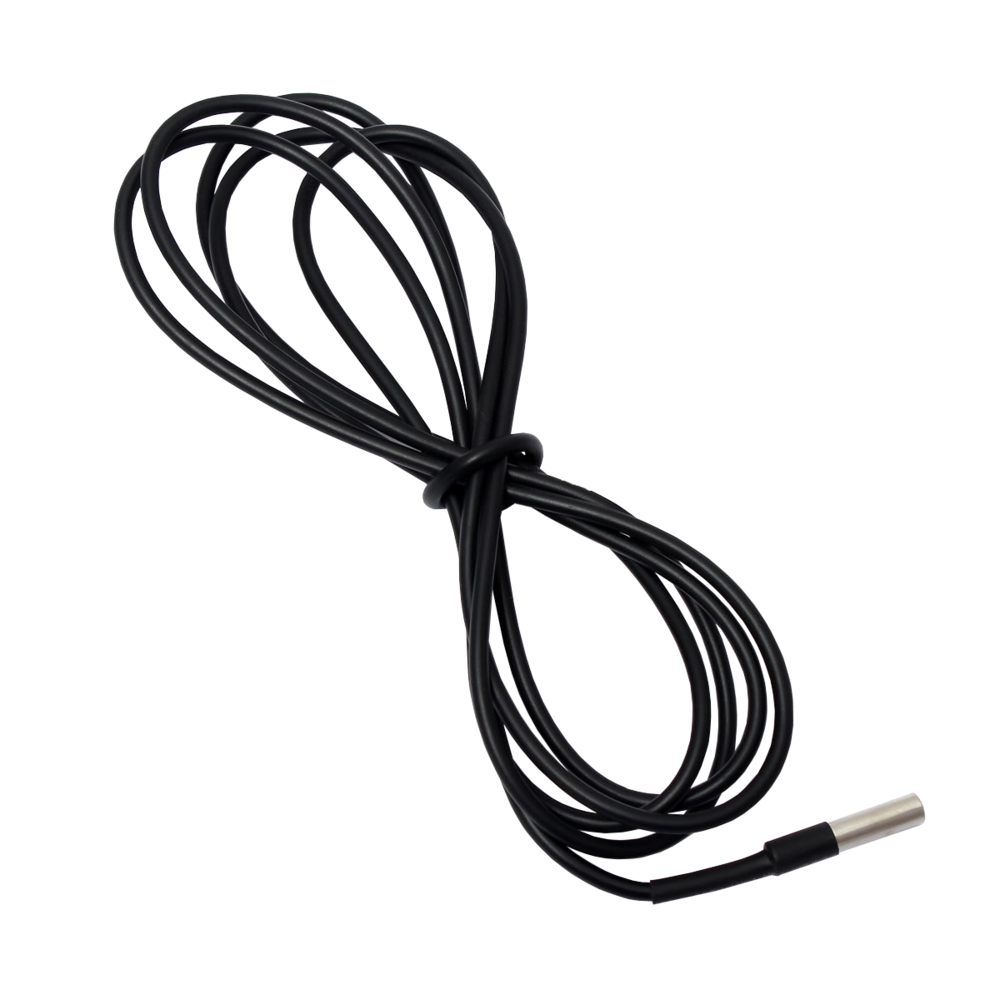

If you want to measure temperatures of liquids or at inaccessible positions, then common sensor system will not help you. For this reason, we offer a water-protected version of the DS18B20 sensor.
The sensor is protected in an encapsulated case and has through its 1 m cable more flexibility than common sensors.
Additionally, it is euipped with the appropriate conncetor to the Linker Kit system which enables a fast plug and play configuration.
Specifications
Specifications
Model
Temperature sensor
Sett of chips
DS18B20
Communications protocol
1-Wire
Power supply
3 - 5.5 V
Resolution
9 - 12 Bit
Measuring range
-55 - +125 °C
Tolerance
± 0.5 °C
Length of cable
1 m
Special feature
Waterproof
Weight
24 g
Items Shipped
Temperature sensor
EAN
4250236812311
Article No.
LK-Temp2
Downloads
Downloads
- LK-Temp2 Manual (English) - 02.12.2021 - 601,6 KB
- LK-Temp2 Manual (German) - 02.12.2021 - 606,64 KB
- LK-Temp2 Arduino Library - 48,78 KB
- LK-Temp2 Arduino Code example (German) - 599 B
- LK-Temp2 Arduino Code example (English) - 565 B
- LK-Temp2 Raspberry Pi Code example (German) - 1,06 KB
- LK-Temp2 Raspberry Pi Code example (English) - 1,02 KB
