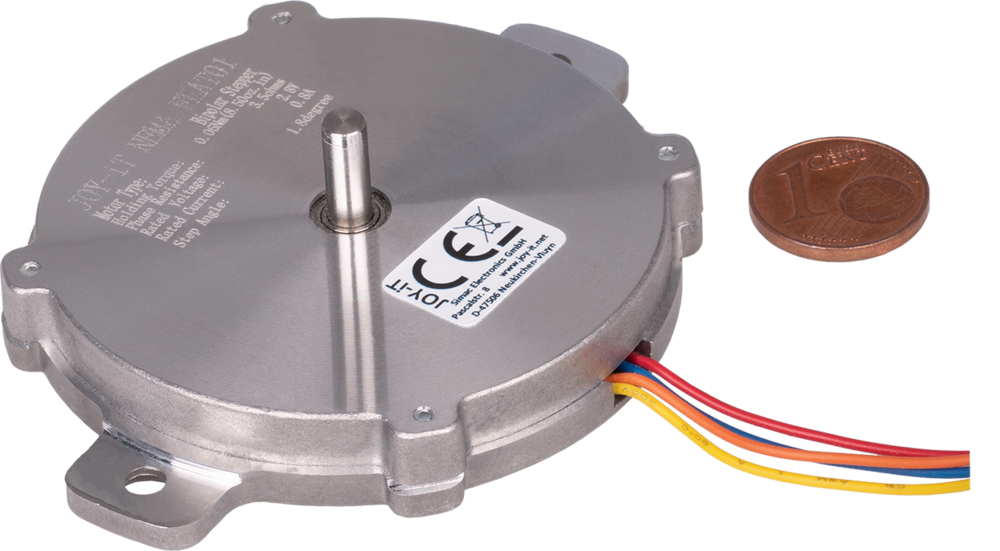

Flat NEMA stepper motor

These flat stepper motors have especially been developed for the feeders in semiconductor production.

These stepper motors can be used very well in other applications with limited assembly space.

Specifications

Shaft dimensions

Ø 4 x 10 mm

Interface connections

4 pin JST cable connector

Cable length

70 mm

Special characteristics

Ultraslim Design

Holding torque

60 mNm

Rated voltage

2.8 V

Rated current

0.8 A

Step angle

1.8° ±5 %

No. of phases

2

Phase resistance

3.5 Ω

Phase inductivity

1.8 mH

Isolation resistance

100 MΩ min. @500 V DC

Isolation class

B (130 °C)

Rotational inertia

15 g·cm²

Detent torque

8 mNm

permitted operating temperature

-10 °C to 50 °C

Additional information

Dimensions

Ø 60 x 9,6 mm

Weight

75 g

Items shipped

1x NEMA-Flat01 stepper motor

EAN

4250236821641

Article No.

NEMA-FLAT01
