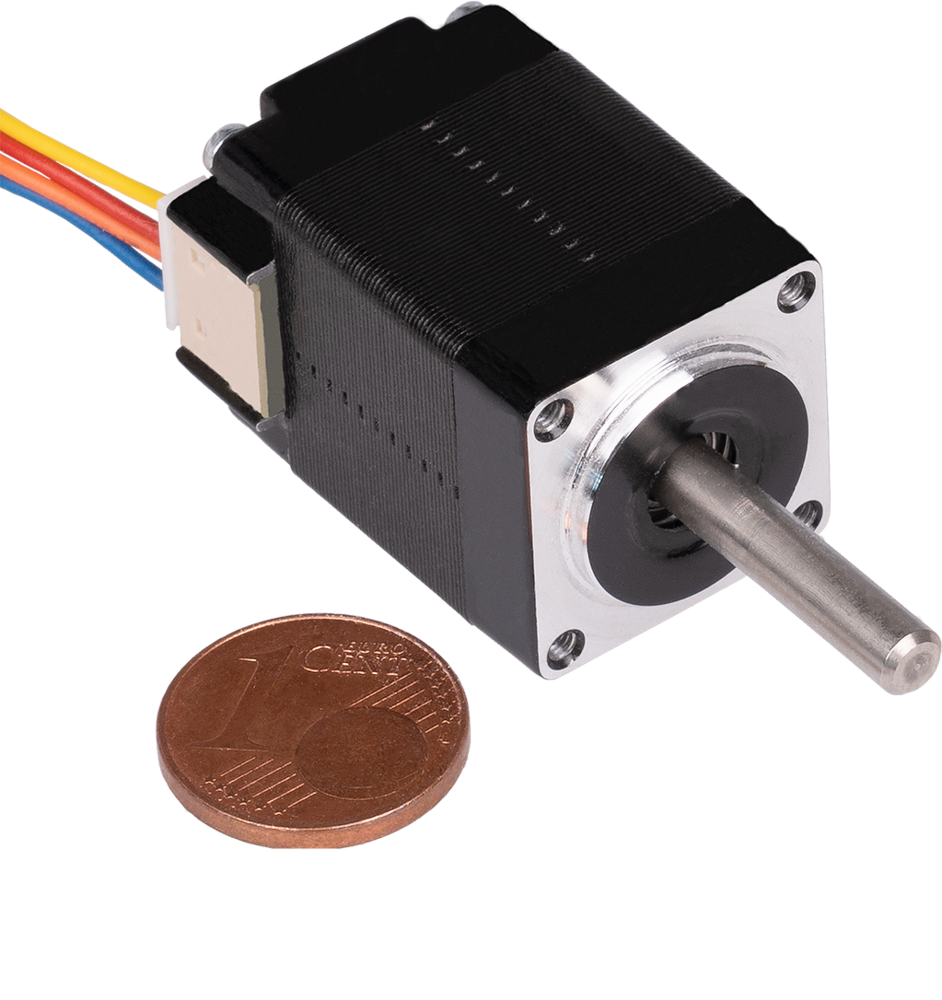

NEMA 8 stepper motor

NEMA 8 stepper motor

NEMA 8 stepper motor

Our NEMA 8 series are very small high torque stepper motors that can reach up to 3000 rpm.

These motors are used in the model making and maker scene as well as in the industrial environment (e. g. positioning of optics, dosing pumps, interlocks, etc.).

Specifications

Specifications

Shaft dimensions

Ø 4 x 18.5 mm

Connection

6 pin JST socket

Cable Length

400 mm

Holding torque

16 mNm

Rated voltage

3.9 V

Rated current

0.6 A

Step angle

1.8 ° ±5 %

Number of Phases

2

Phase resistance

6.5 Ω

Phase inductivity

1.7 mH

Isolation resistance

100 MΩ min. @500V DC

Isolation class

B (130°C)

Rotational inertia

2 g·cm²

Detent torque

18 mNm

permitted operating temperature

-10 to 50 °C

Dimensions

20 x 22 x 30 mm

Weight

60 g

Items Shipped

NEMA 8 stepper motor, connection cable

EAN

4250236821665

Article No.

NEMA08-01
