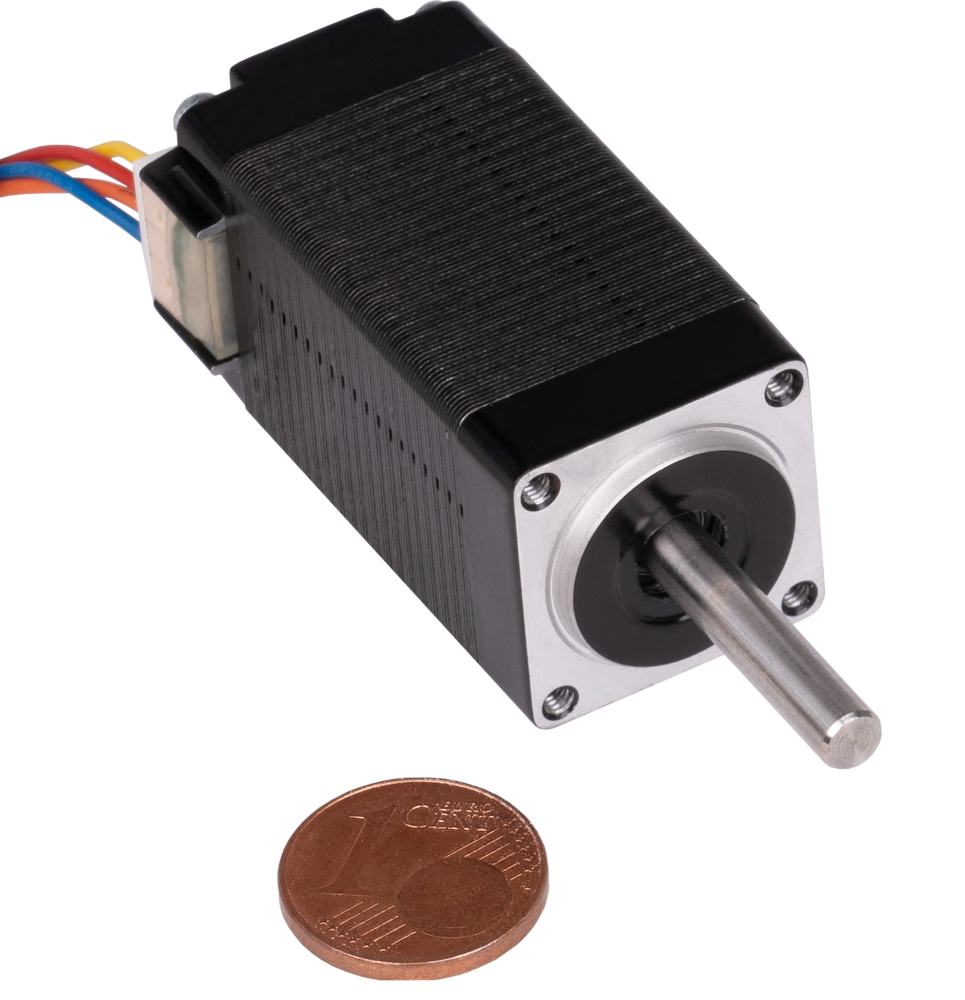

NEMA08-02
Our NEMA 8 Series are very small high torque stepper motors that can reach up to 3000 rpm.
These motors are used in the model making and maker scene as well as in the industrial environment (e. g. positioning of optics, dosing pumps, interlocks, etc.).
Specifications
Shaft dimensions
Ø 4 x 18.5 mm (single shaft)
Specification
20SHD0101-19
Connection
6-pole socket HX12501-6A (JST compatible)
Steps per Revolution
200
Holding torque
0.03 Nm
Step angle
1.8 ° ±5 %
Rated voltage
4.32 V
Rated current
0.8 A
Number of Phases
2
Phase resistance
5.4 Ω
Phase inductivity
1.5 mH
Isolation resistance
100 MΩ min. @500V
Isolation class
B (130°C)
Rotational inertia
3.5 g·cm²
Detent torque
0.003 Nm
permitted operating temperature
-10 to 50 °C
Additional information
Dimensions
20 x 22 x 41.7 mm
Weight
80 g
Items shipped
NEMA08-02 stepper motor
EAN
4250236821672
Article No.
NEMA08-02
