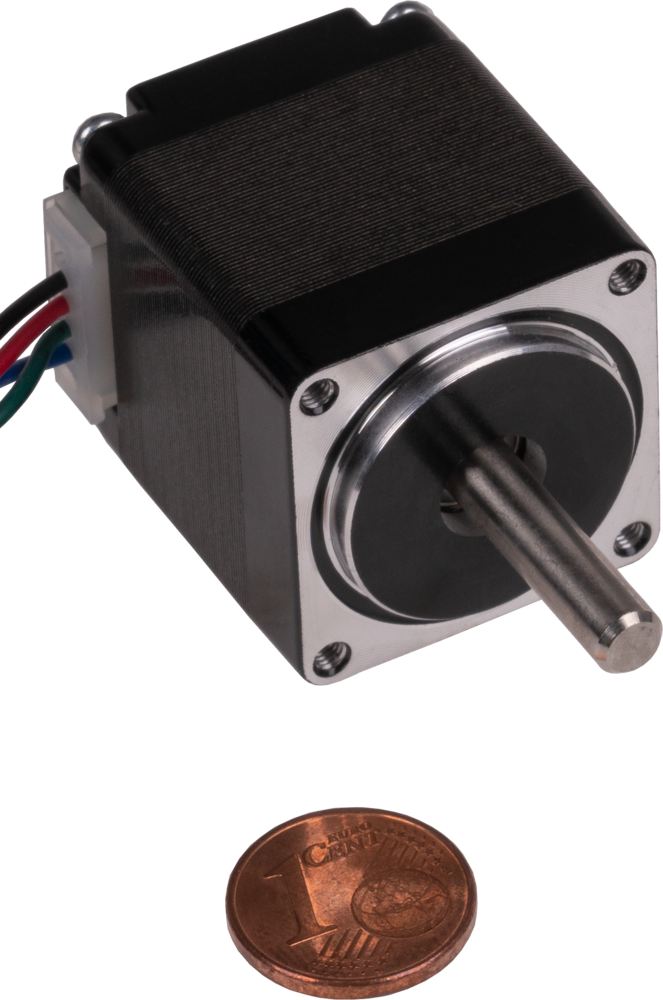

NEMA 11 stepper motor

NEMA 11 stepper motor

NEMA 11 stepper motor

Our NEMA 11 series are very small high torque stepper motors that can reach speeds of up to 3000 rpm.
These motors are often used in the model making and maker scene as well as in the industrial environment (Positioning of optics, dosing pumps, interlocks, etc.).

Specifications

Specifications

Shaft dimensions

Ø 5 x 18 mm

Connection

4 cables

Holding torque

55 mNm

Rated voltage

5.0 V

Rated current

0.42 A

Step angle

1.8 ° ±5 %

Number of Phases

2

Phase resistance

11.9 Ω

Phase inductivity

7.8 mH

Isolation resistance

100 MΩ min. @500 V DC

Isolation class

B (130°C)

Rotational inertia

9 g·cm²

Detent torque

5 mNm

permitted operating temperature

-10 to 50 °C

Dimensions

28 x 29 x 32 mm

Weight

120 g

Items Shipped

NEMA 11 stepper motor, connection cable

EAN

4250236821719

Article No.

NEMA11-01
