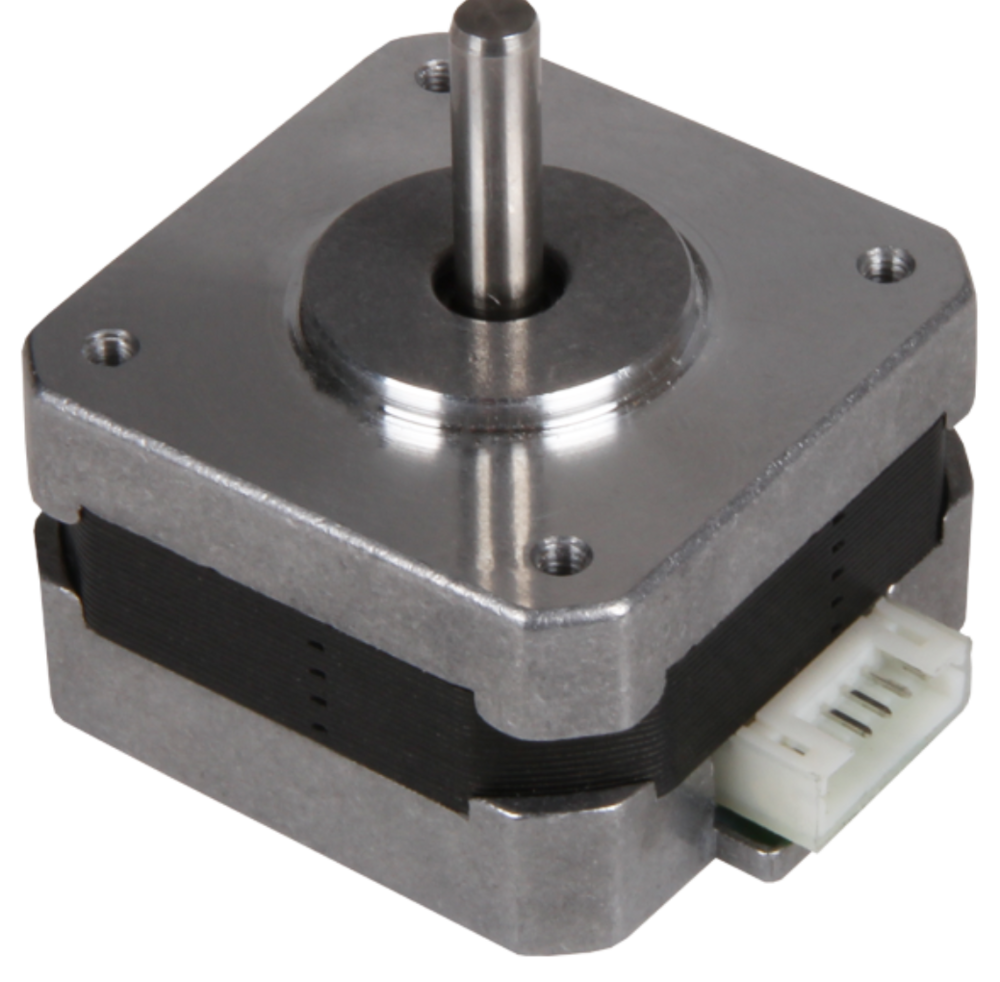

NEMA 14 Motor

This small sized stepper motor is optimal for smaller tasks in automation, CNC (e. g. laser engraver, 3d printer, etc), or robotic. The small design and the little weight predestine this stepper motor for projects with limited space and / or limited weight capacity.

Specifications

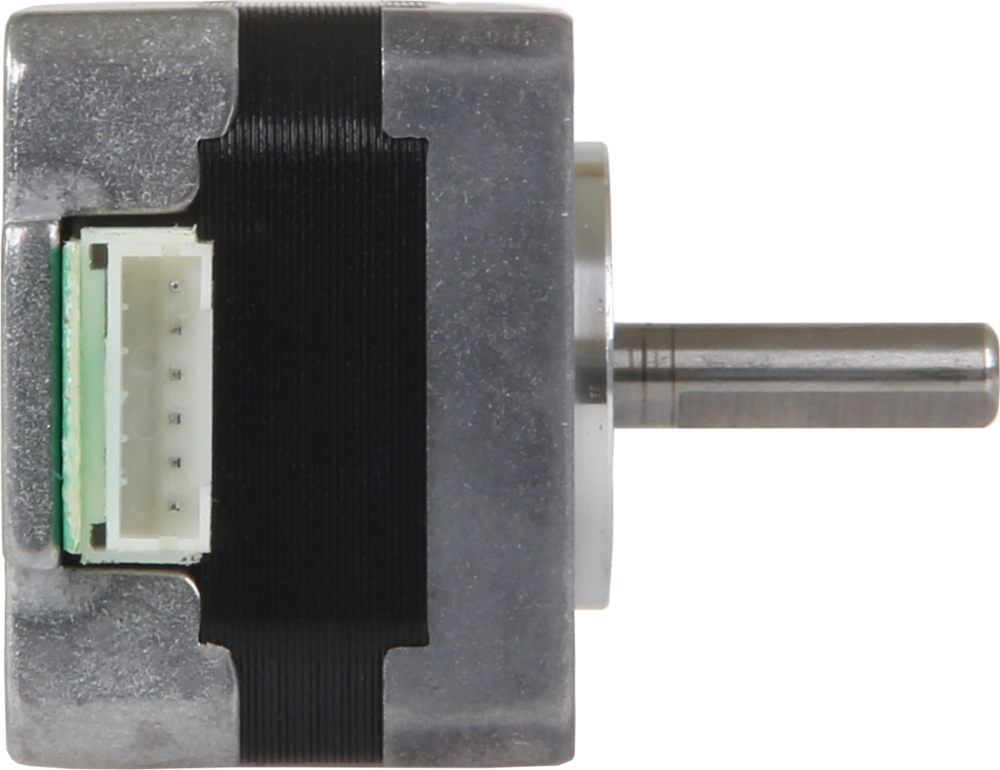

Shaft dimensions

Ø 5 x 16 mm (single shaft)

Specification

35SHD0001-20B

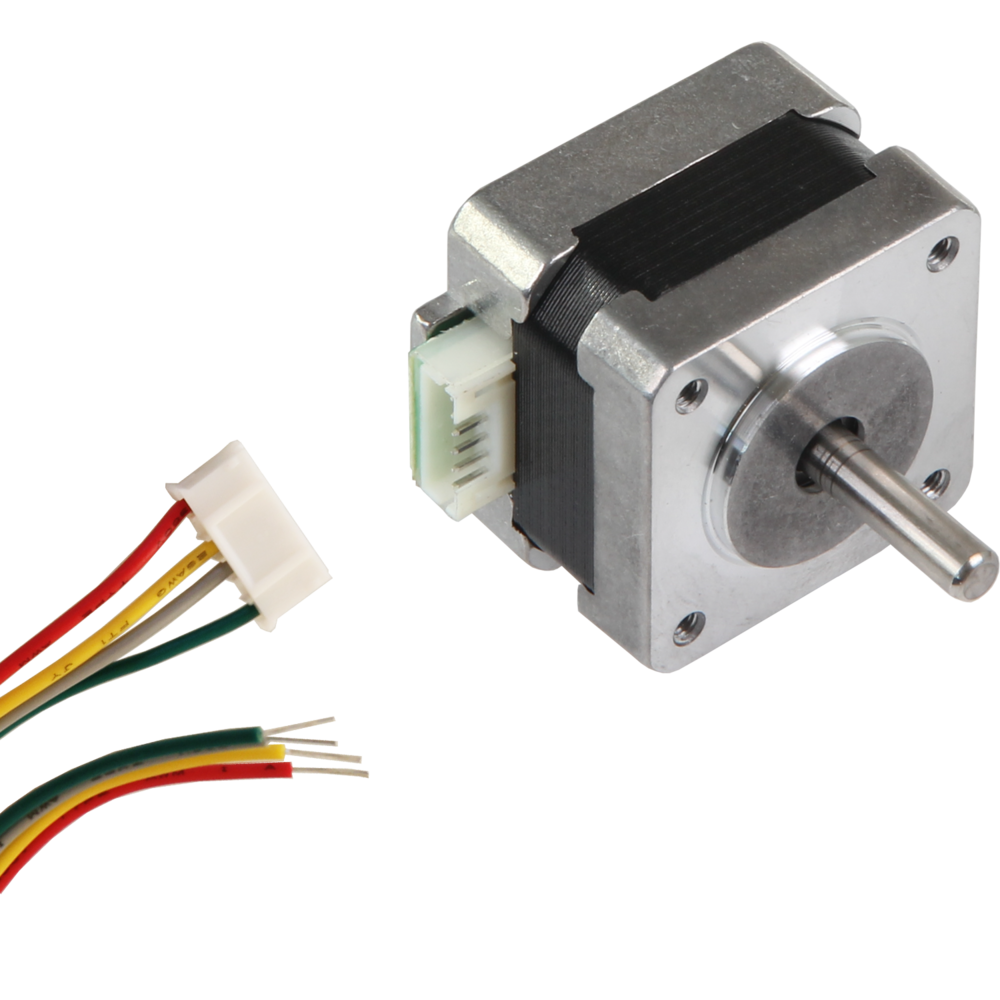

Connection

6 pole socket (JST), 4 Pins used

Steps per revolution

200

Holding torque

0.1 Nm

Step angle

1.8 °

Rated voltage

8 V

Rated current

0.4 A

Amount of phases

2

Phase resistance

20 Ω

Phase inductivity

20 mH

Isolation resistance

min. 100 MΩ at 500 V

Isolation class

B (130 ° C)

Rotational inertia

12 g·cm²

Detent torque

0.008 Nm

permitted Operating temperature

-10 - 50 ° C

Additional information

Dimensions

35 x 35 x 29 mm

Weight

120 g

Items shipped

NEMA14-01 stepper motor

EAN

4250236818740

Article No.

NEMA14-01
