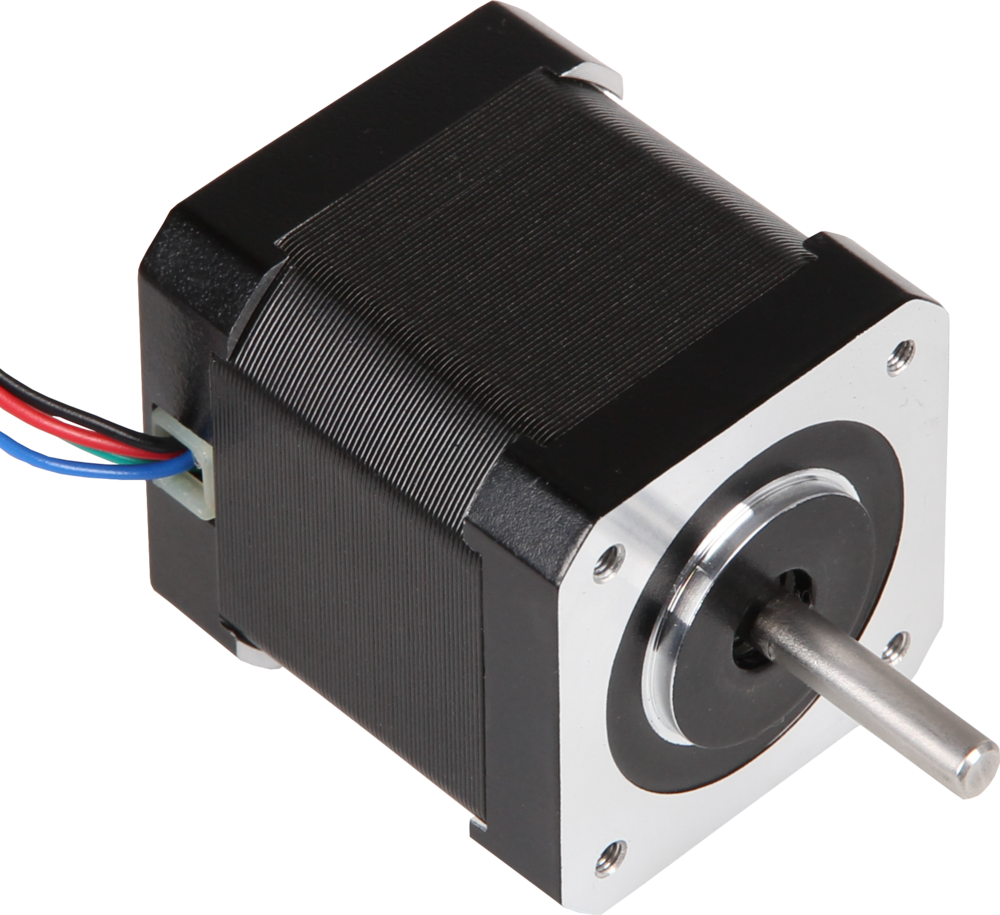

NEMA17-02
The NEMA17-02 stepper motor can be optimally used for tasks in the areas of automation, CNC (f.e. engraving lasers, 3D printers, milling machines, etc.) or robotic. With the double shaft, this motor can be used f. e. in connection with an encoder.
Specifications

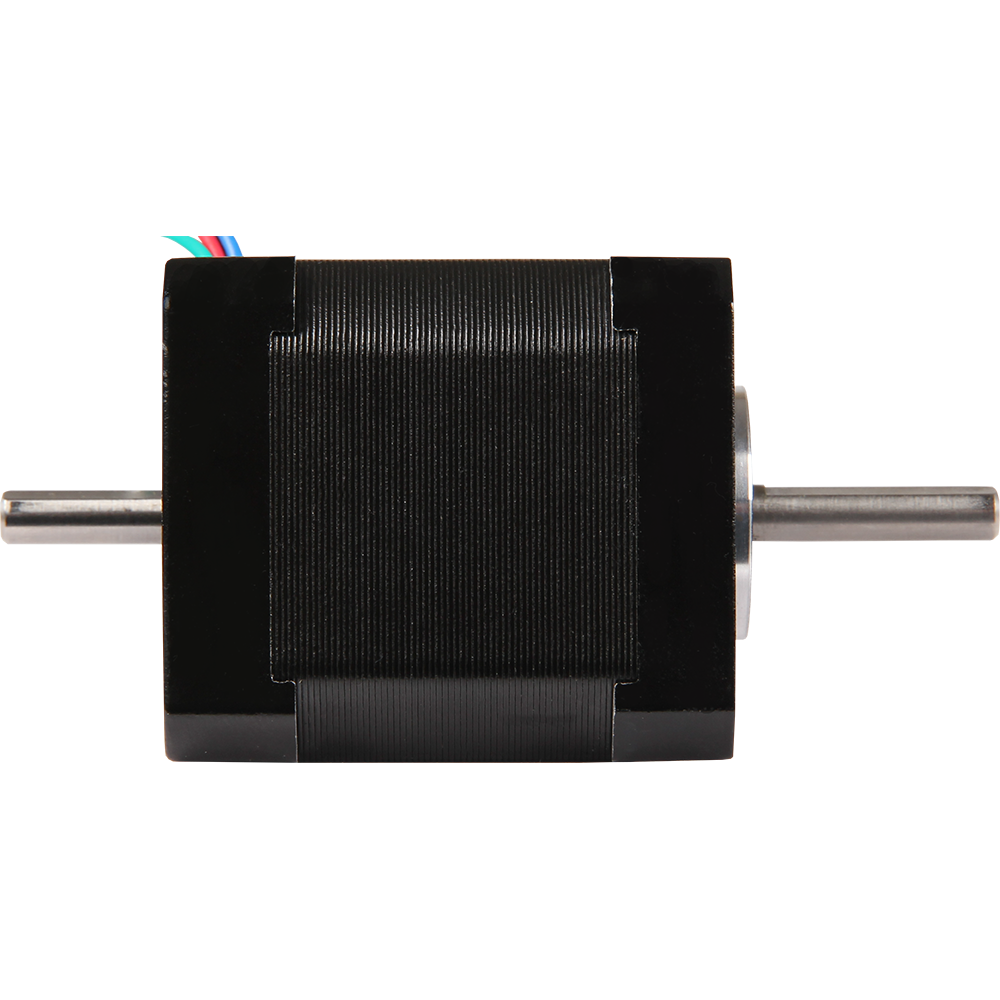

Shaft dimensions
Primary: Ø 5 x 22 mm
Secondary: Ø 5 x 14 mm
Specification
42STH47-1684B
Connection
4-pin female connector housing, 2.54 mm pitch
Steps per revolution
200
Holding torque
0.46 Nm
Step angle
1.8°
Rated voltage
2.8 V
Rated current
1.68 A
Amount of Phases
2
Phase resistance
1.65 Ω
Phase inductivity
2.8 mH
Isolation resistance
100 MΩ min. @500V DC
Isolation class
B (130°C)
Operating temperature
-20 - 50°C
Wiring
Coil 1A: green, Coil 1B: black, Coil 2A: blue, Coil 2B: red
Additional information
Dimensions
42 x 42 x 48 mm
Weight
365 g
Items shipped
NEMA17-02 stepper motor
EAN
4250236816128
Article No.
NEMA17-02
