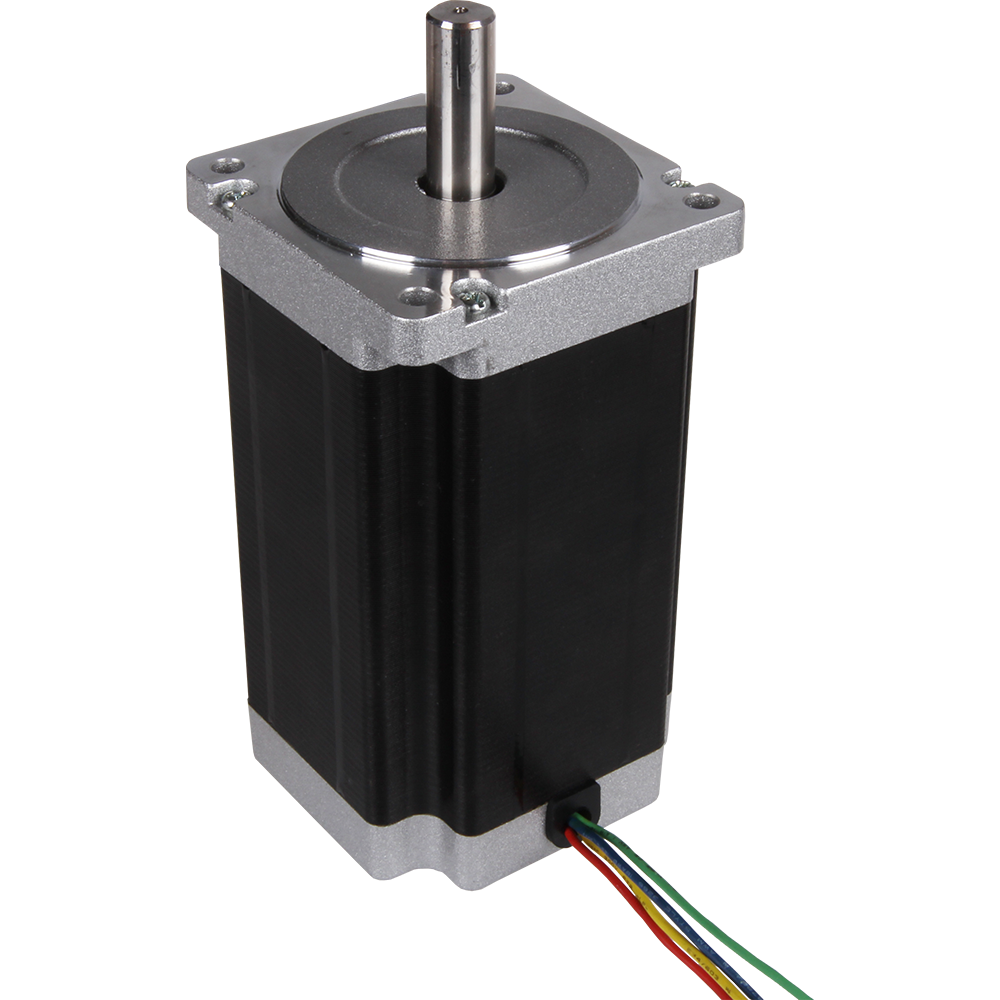

NEMA 34 motor

This NEMA-34 stepper motor is suitable even for the biggest projects (f. e. CNC-application, robotic, etc.). With its high holding torque of 11 Nm, it can meet higher requirements.

Specifications

Specification

86SHD4505-37B

Shaft dimensions

Ø 14 x 25 mm (single shaft)

Connection

4 jumper cables

Steps per revolution

200

Holding torque

11 Nm

Rated voltage

5.5 V

Rated current

5 A

Step angle

1.8°

Amount of phases

2

Phase resistance

1.1 Ω

Phase inductivity

7.5 mH

Isolation resistance

Min. 100 MΩ at 500 V DC

Isolation class

B (130°)

Rotational inertia

3600 g·cm²

Detent torque

0.32 Nm

Operating temperature

-10 - 50 °C

Dimensions

85 x 85 x 150 mm

Weight

4,7 kg

Items Shipped

NEMA 34-01 stepper motor

EAN

4250236818825

Article No.

NEMA34-01
