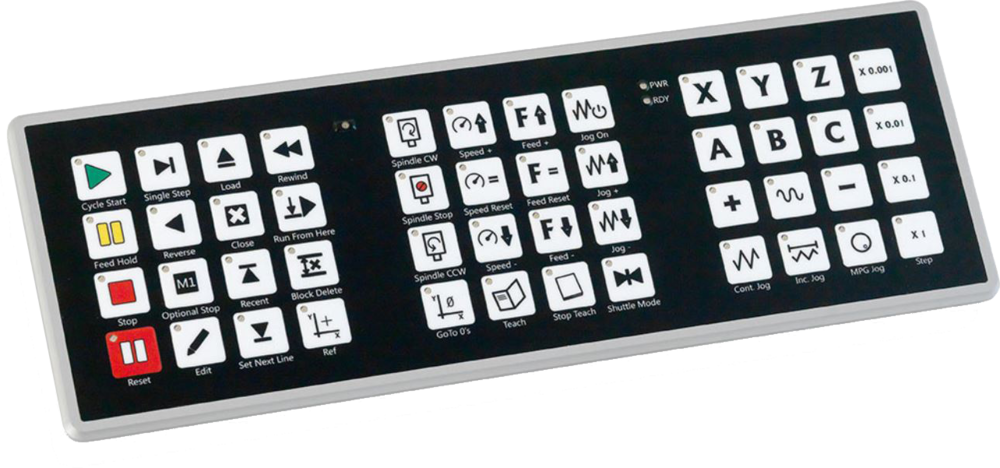

PoKeys PoNET CNC Keyboard
The PoKeys PoNet CNC keyboard is an innovative input device specifically designed to meet the needs of CNC machine operators and programmers. This keyboard features user-defined keys specifically designed for the most common CNC tasks, such as controlling axis movements, starting and stopping programs and setting reference points.
The keyboard is robustly built to withstand the demanding conditions of industrial environments. It offers intuitive operation that increases efficiency and accuracy in CNC programming and control. Its ergonomic design and clearly labeled keys ensure comfortable and error-free operation.
Specifications
Power Supply
5 V (± 10%)
Power Consumption
max. 400 mA
Number of keys
48 keys, in 3 fields with 4x4 keys each
Interface
PoNET (supported by PoKeys56 devices)
Special features
Each key is equipped with red LED-backlight,
addiitonal "Power LED" and "Status LED",
light sensor to adjust the brightness of the LEDs
Additional information
Dimensions
295 x 105x 4 mm
Items shipped
PoKeys PoNET CNC keyboard KBD48CNC, 20 cm connection cable
EAN
4250236816098
Article No.
PoNETkbd48CNC
