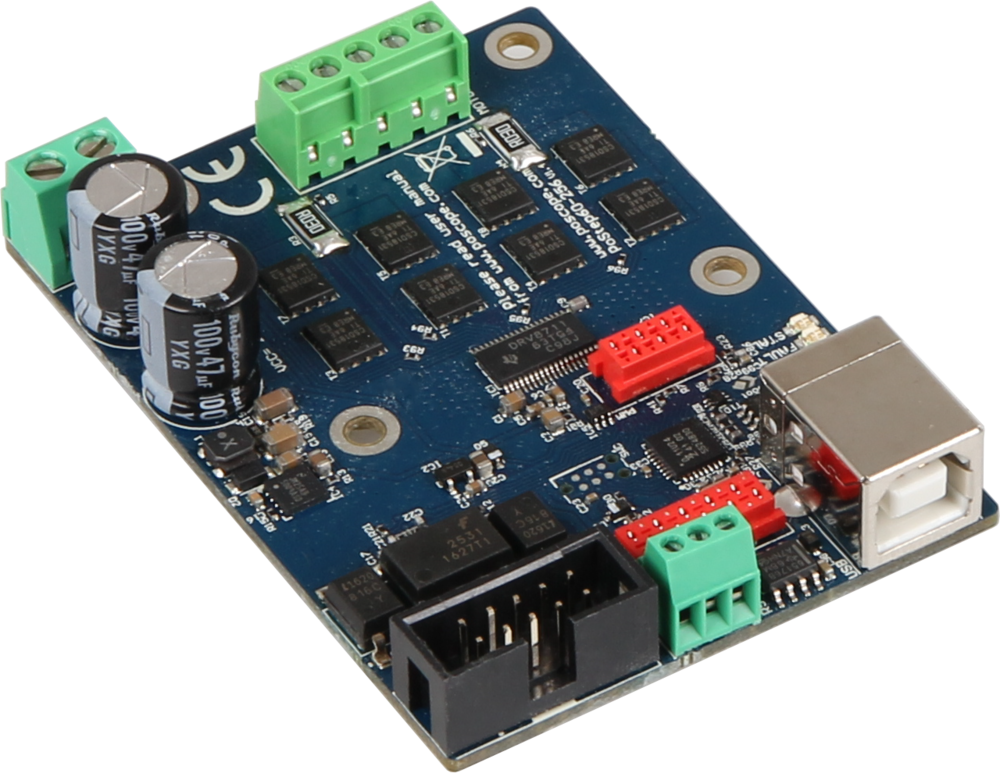

PoStep60-256
The PoStep60-256 stepper motor driver is also an advanced motor controller. With an integrated micro step generator, step modes from full step to 1/256 step can be executed. The controller can be connected via a standard step/direction or PWM interface.
IMPORTANT! With the latest firmware support for the MODBUS protocol has been implemented. For the latest firmware, you only need to install the latest software (PoStep60 V1.20 or newer) on your PC and connect the motor driver via USB. You will then be automatically informed about the software update.
Specifications
Supply voltage
10 - 50 V
max. current
6 A
Micro step modes
1, 2, 4, 16, 32, 64, 128, 256
Logic voltage level
3,3 V and 5 V compatible
max. step frequency
250 kHz
Operating temperature
0 - 70 °C
Special features
easy adjustment through USB interface and PC software,
compatible with 4-, 6- and 8-wire stepper motors,
mixed decay mode for smoother movements and lower power consumption,
fast diagnosis by LED display,
reliable operation without cooler,
Modbus protocol support
Additional information
Dimensions
54 x 75 mm
Weight
35
EAN
4250236815466
Article No.
PoStep60-256
