120° camera

120° camera

120° camera

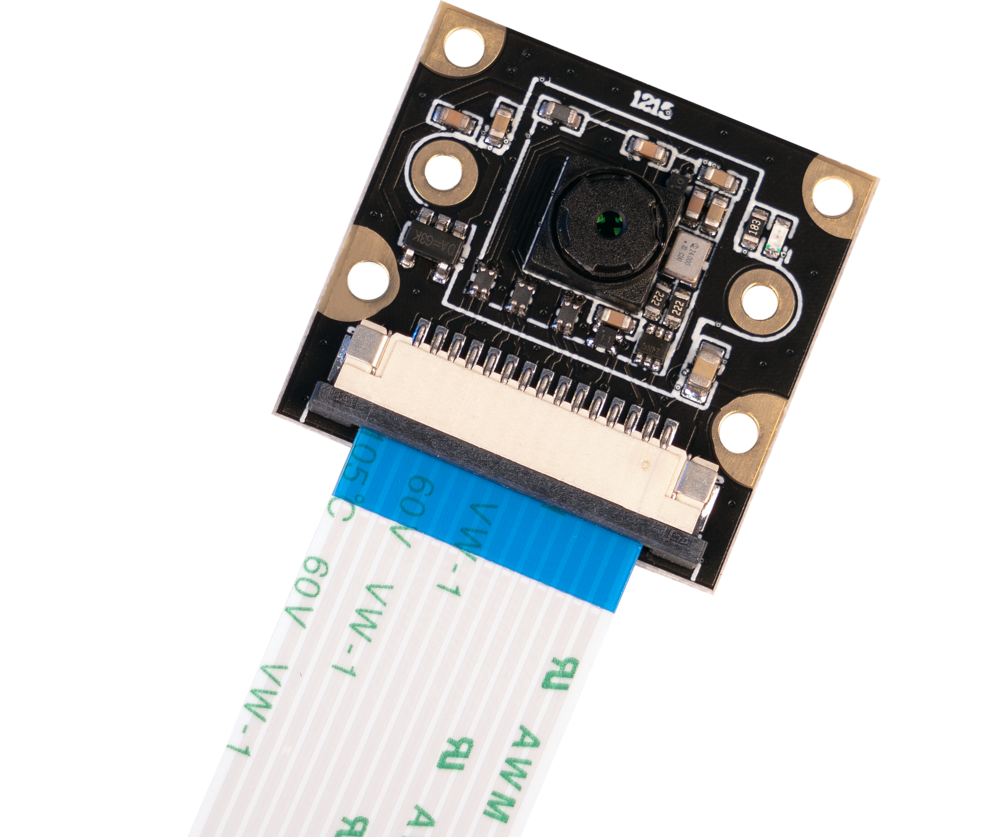

The camera module for all Raspberry Mo-dels works with the well-known IMX219 chip and delivers best recordings in 8 MP quality at a viewing angle of 120°.
Furthermore, it has the possibility to supply additional modules (e.g. lighting etc.) via its own power supply with up to 3.3 V voltage.
Additional brackets in the board allow you to install the camera individually or mount further supplements.

Specifications

Specifications

Sensor

IMX219

Megapixel quantity

8 megapixel

Viewpoint

120°

Resolution

3280 x 2464 Pixel

Video resolution

1920 x 1080 @ 30 FPS

Interface

Camera Serial Interface CSI

Cable length

150 mm

Focal length

1.79 mm

Aperture (F)

2.0

Distortion

< 13.6%

Lens dimension

6.5 mm x 6.5 mm

More specifications

4 holes for screws which provide 3.3 V power

Dimensions

25 x 24 x 6 mm

Weight

4 g

Items Shipped

Camera, cable

EAN

425023682424

Article No.

RB-CAMERA-JT-V2-120
