77° camera

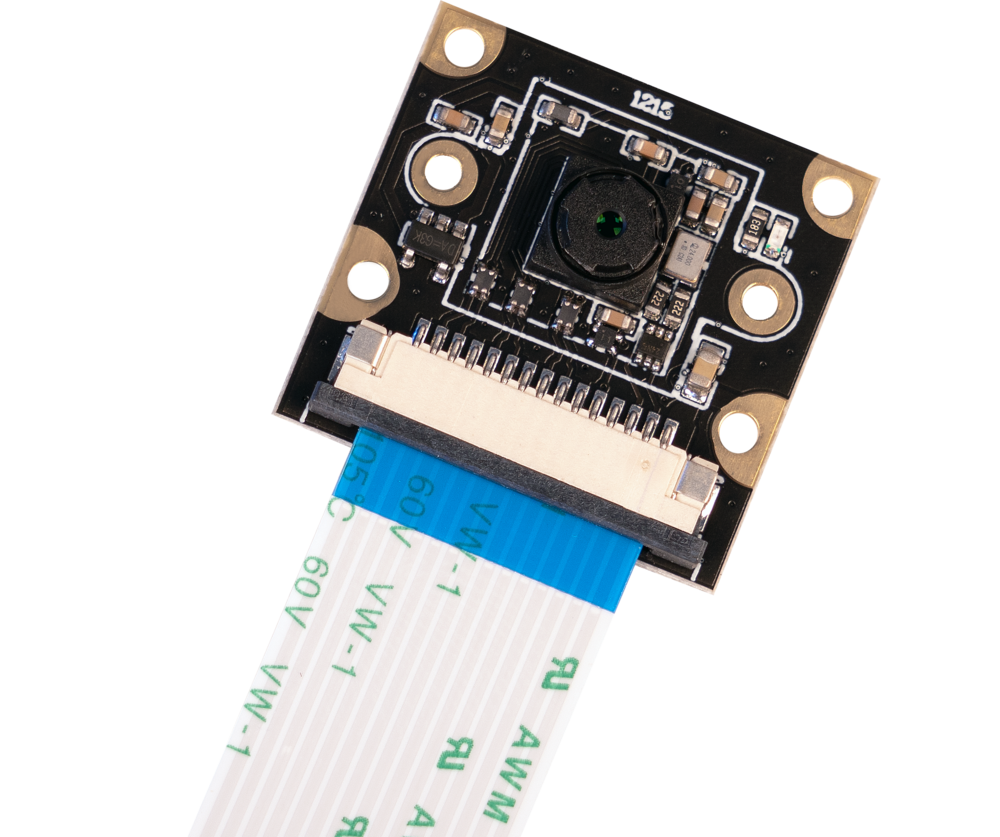

The camera module for the Raspberry Pi works with the well-known IMX219 chip and delivers best recordings in 8 MP quality at a viewing angle of 77°.
Furthermore, it has the possibility to supply additional modules (e.g. lighting etc.) via its own power supply with up to 3.3 V voltage.
Through additional mounting holes in the board, you can install the camera individually or mount other supplements.

Specifications

Sensor

IMX219

Megapixel quantity

8 megapixel

View angle

77°

Resolution

3280 x 2464 Pixel

Video resolution

1920 x 1080 @ 30 FPS

Interface

Camera Serial Interface CSI

Cable length

150 mm

Focal length

2.85 mm

Aperture (F)

2.0

Distortion

< 1%

Lens dimension

6.5 mm x 6.5 mm

More specifications

4 holes for screws which provide 3.3 V power

Dimensions

25 x 24 x 6 mm

Weight

4 g

Items Shipped

Camera, cable

EAN

4250236824239

Article No.

RB-CAMERA-JT-V2-77

Downloads

• RB-CAMERA-JT-V2-77 Datasheet German - 234,33 KB
• RB-CAMERA-JT-V2-77 Datasheet English - 243,85 KB
• RB-Camera-JT-V2-77 Datasheet (Spanish) - 2024.03.12 - 492,04 KB
• RB-Camera-JT-V2-77 Datasheet (Portuguese) - 2024.03.12 - 500,93 KB
• RB-CAMERA-JT-V2-77 Manual German - 576,59 KB
• RB-CAMERA-JT-V2-77 Manual English - 579,96 KB
• RB-Camera-JT-V2-77 Manual (Czech) - 2024.03.12 - 596,23 KB
