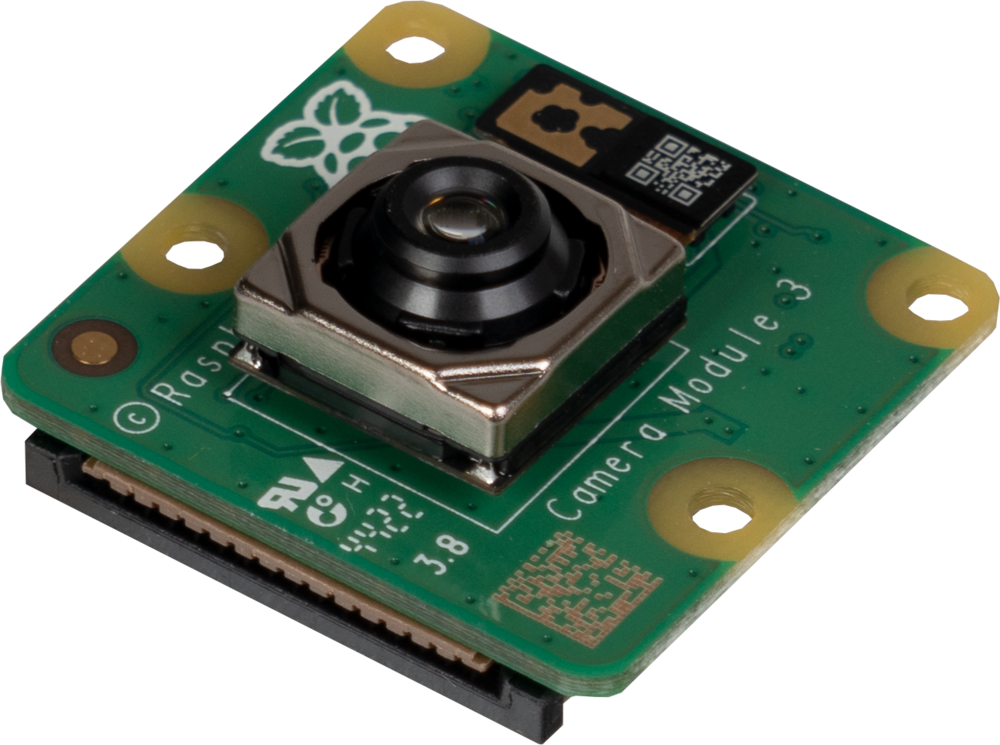

Raspberry Pi Camera 3

The Raspberry Pi Camera Module 3 is a compact camera for the Raspberry Pi, which is equipped with a 12 megapixel Sony IMX708 sensor.

Both pictures, with a size of 4056 x 3040 pixels, and videos in 1080p with a frame rate of 50 fps are no problem.

The camera has a fast autofocus function, as well as an HDR mode with up to 3 megapixels.

Specifications

Sensor resolution

12 Megapixels

Photo resolution

4056 x 3040 pixels

Common video modes

1080p50, 720p100, 480p120

Diagonal field of view

75 °

Connection

CSI

Special features

Integrated IR cut filter
High signal-to-noise ratio
HDR-Mode (up to 3 MP)
Phase detection auto focus

Sensor

Sony IMX708

Sensor size

7.4 mm (sensor diagonal)

Pixel size

1.4 μm x 1.4 μm

Output

RAW10

Focus area

10 cm - ∞

Focal length

4.74 mm

Horizontal field of view

66 °

Vertical field of view

41 °

Focal ratio (F-Stop)

F1.8

Ribbon cable length

200 mm

Additional information

Dimensions

25 x 24 x 11,5 mm

Items shipped

Camera module, ribbon cable

EAN

5056561803241

Article No.

RB-Camera-3
