Dinrail power supply

Dinrail power supply

Dinrail power supply

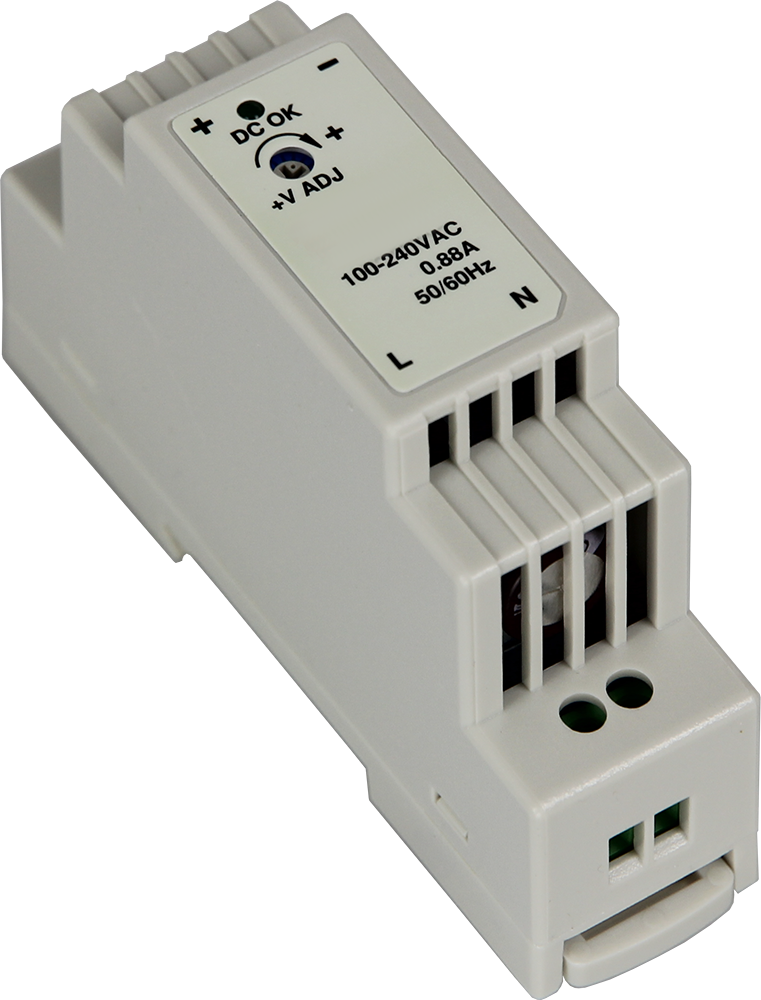

The single-phase primary-switched power supply for the top-hat rail mounting made out of plastic (step-shape) has an input voltage from 85 up to 264 VAc and a low no load power consumption of under 0.5 W with the protection class 2 (without PE).

Specifications

Specifications

Model

DR-15-5

Type

Clocked

Number of outputs

1 x

Connection

Screw terminal

Input voltage (max.)

264 V/AC

Input voltage (min.)

90 V/AC

output power

2.4 A

output voltage (max.)

5 V/DC

output voltage (nom.)

5 V/DC

Number of inputs

1 x

Performance

12 W

Dimensions

56 x 25 x 93 mm

Weight

107,41 g

Items Shipped

Power supply

Article No.

RB-Dinrail-NT
