Joy-Pi Note

Joy-Pi Note

Joy-Pi Note

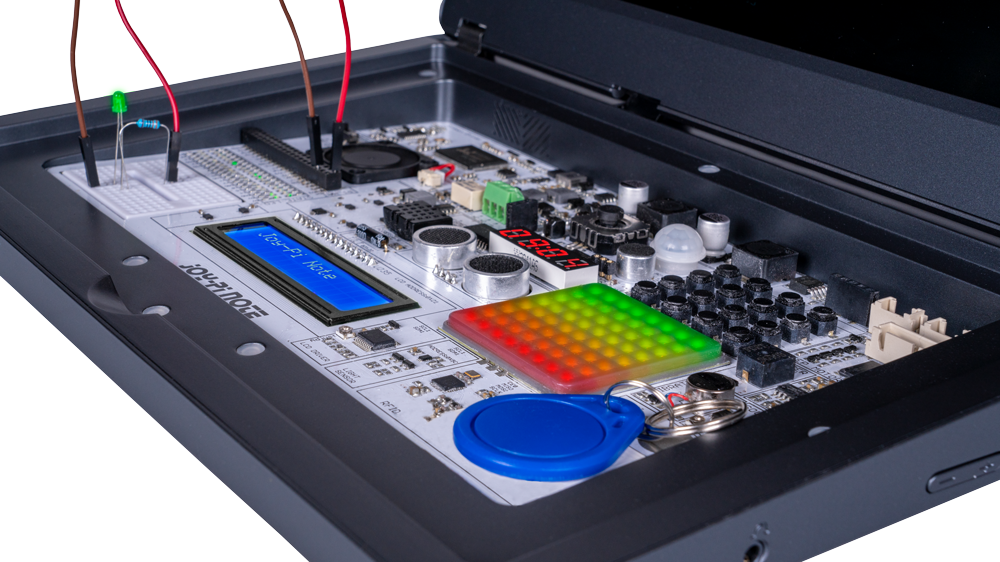

The Joy-Pi Note is the new flagship in the Joy-Pi family. With its 11.6“ IPS screen and a detachable, wireless keyboard, it takes the Joy-Pi‘s basic concept in a new, high-quality and attractive format. With 46 courses and 18 projects, the Joy-Pi Note is not only suitable as an experiment centre, but is also ideal for use in the education sector. With over 22 integrated sensors and modules, there are no limits to the user‘s own joy of experimentation. This simplifies the introduction to electrical engineering and programming. Due to the installed learning platform, which was developed especially for the Joy-Pi Note, the installed units can be operated and learned independently of one‘s own previous knowledge. It is also possible to connect additional sensors and modules via the pins of the Raspberry Pi, which are routed to the outside, and thus also carry out more complex projects.

Of course, the Joy-Pi Note can also be used as a „classic“ notebook. All programs compatible with the Raspberry Pi 4B can be installed. The integrated 2MP camera also makes video conferencing possible, for example.

Important information:

A Raspberry Pi is not included in the scope of delivery. All models of the Raspberry 4B family (4 GB min.) can be used. On the back of the device, you will find a compartment where you can insert a power bank to also operate the Joy-Pi Note mobile.

Specifications

Specifications

Display

11.6" 1920x1080 IPS LCD

Camera

2 MP

Special features

Fully equipped set, completely integrated experiment centre, pre-installed learning platform, detachable wireless keyboard, integrated compartment ( 147 x 70 x 11mm ) for power bank & accessories

Lessons of the learning platform

46 courses & 18 projects for Python and Scratch

Power supply

12 V hollow plug, 5 V USB

Compatible to

Raspberry Pi 4B 4 GB and higher

Display

7-segment display, 16x2 LCD module, 8x8 RGB-Matrix

Sensors

DHT11 temperature & humidity sensor, tilt sensor, motion sensor, sound sensor, touch sensor, RFID module, light sensor, ultrasonic distance sensor

Motors

Servo interface, stepper motor interface, vibration motor

Control

Joystick, 4x4 button matrix, touch sensor

Others

Relay, fan, GPIO extension, GPIO LED indicator, breadboard, IO/ADC/I2C/UART expansion interface, infrared sensor interface, buzzer, display driver

Accessories

RFID chip, RFID card, 12 V power supply, servo motor, stepper motor, infrared receiver, infrared remote control, DC motor with fan attachment, HDMI connector, screwdriver, microSD card (32 GB), SD card reader, electronic accessories, wireless mouse, wireless keyboard

Dimensions

291 x 190 x 46 mm

Weight

1,3 kg

Items Shipped

Joy-Pi Note, accessories, quick guide

EAN

4250236821627

Article No.

RB-JoyPi-Note
