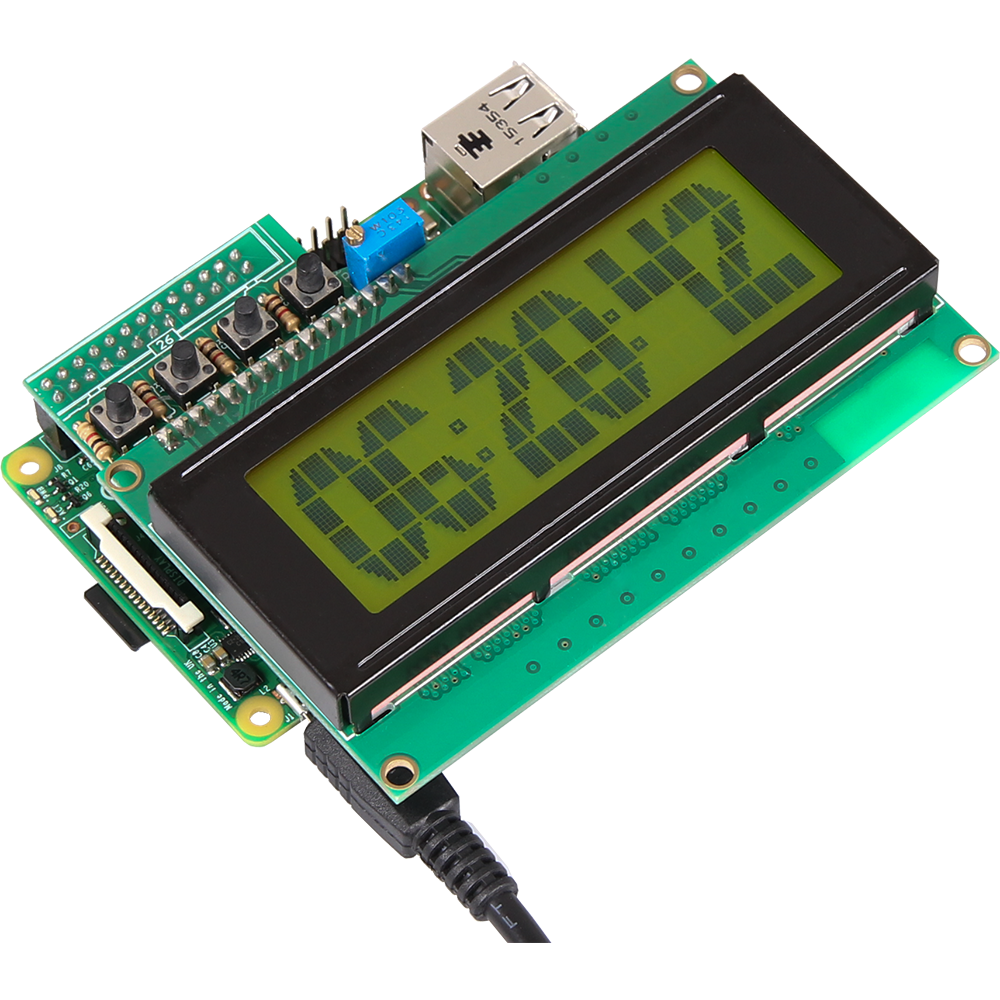

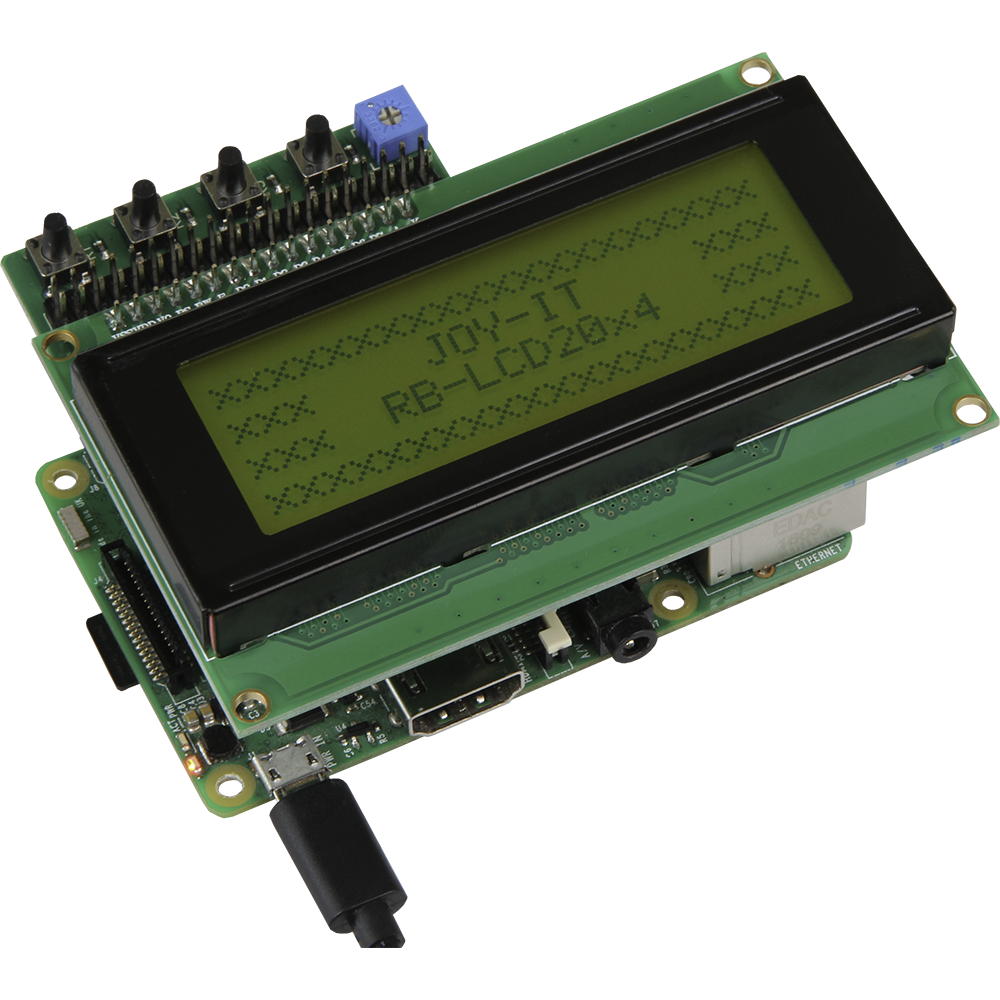

LCD Display

The monochrome 20x04 LC-Display ( 20 characters on 4 lines) with black font and yellow backlight. Additionally, there are freely usable buttons which are connected to GPIO 4, GPIO 10, GPIO 9 and GPIO 16.

The settings of contrast can be setup precisely with the multiple-turn potentiometer. The display can be attached directly to the Raspberry Pi header and is compatible to all versions of the Raspberry Pi.

Specifications

Characters

20x4

Displaycontroller

HD44780

Buttons

4 Buttons

Backlight

Yellow

Special Features

Contrast adjustable via rotary-potentiometer, Only 2x I²C-Pins are used

Additional information

Dimensions

98,3 x 75,5 x 29,3 mm

Weight

93 g

Items shipped

LCD Display

EAN

4250236811673

Article No.

RB-LCD-20x4
