10.1" IPS Touchscreen-LCD

10.1" IPS Touchscreen-LCD

10.1" IPS Touchscreen-LCD

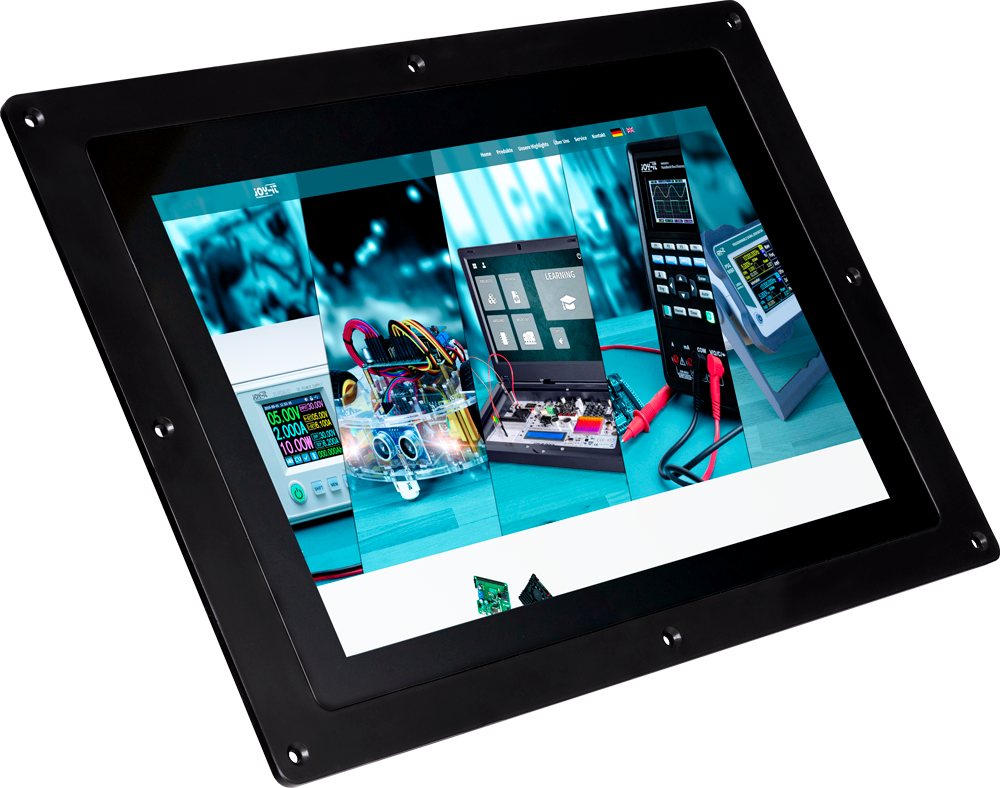

Our 10.1“ IPS touch screen display has been specially developed for professional installation and offers an impressive range of technical specifications.

Its outstanding image quality and multiple connectivity options make it the ideal solution for a wide range of applications in industry, commerce and private projects.

Specifications

Specifications

Special features

5-point touch screen, particularly high viewing angle, Versatile connection options, separate speaker output, flexible power input

Display

10,1" (25,56 cm) IPS LCD

Resolution

1280 x 800 pixels

Touch specifications

Capactive 5-point touch

Power supply

DC: 5 V - 24 V (screw terminal), USB: 5 V, 2 A

Connections

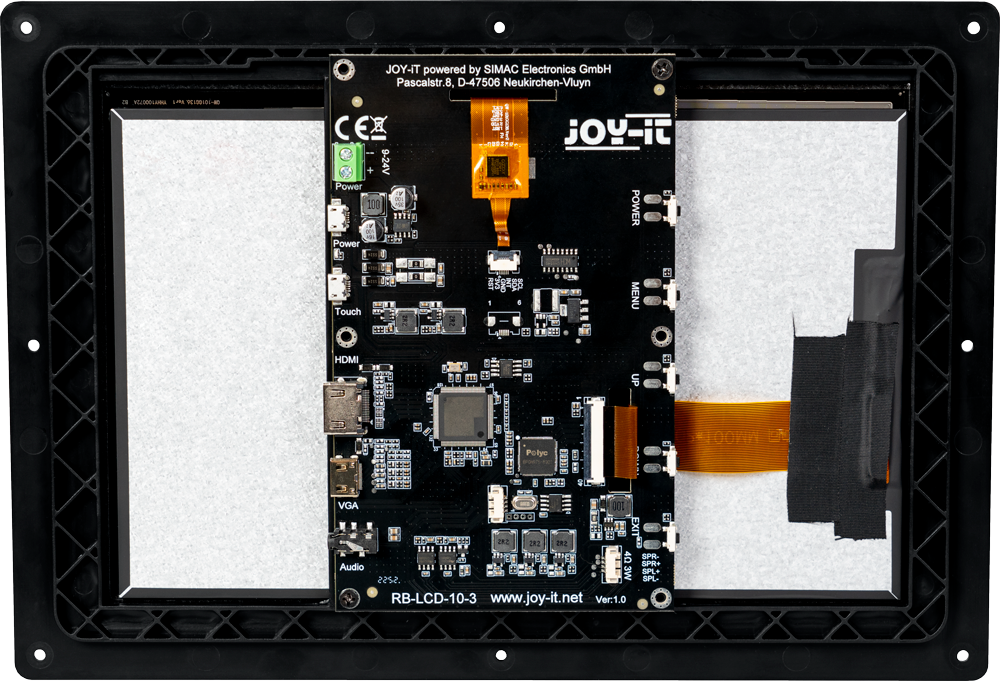

Power (Micro-USB), Touch (Micro-USB), HDMI Input, VGA Input (via Mini-HDMI), Audio-Output (3,5 mm), Speaker (4 Ω / 3 W), Additional soldering points for display control

Viewing angle

178°

Contrast

800:1

Brightness

350 cd/m²

Backlight

LED

Operating temperature

-20 °C - 70 °C

Dimensions

286 x 198 x 26 mm

Article No.

RB-LCD10-3
