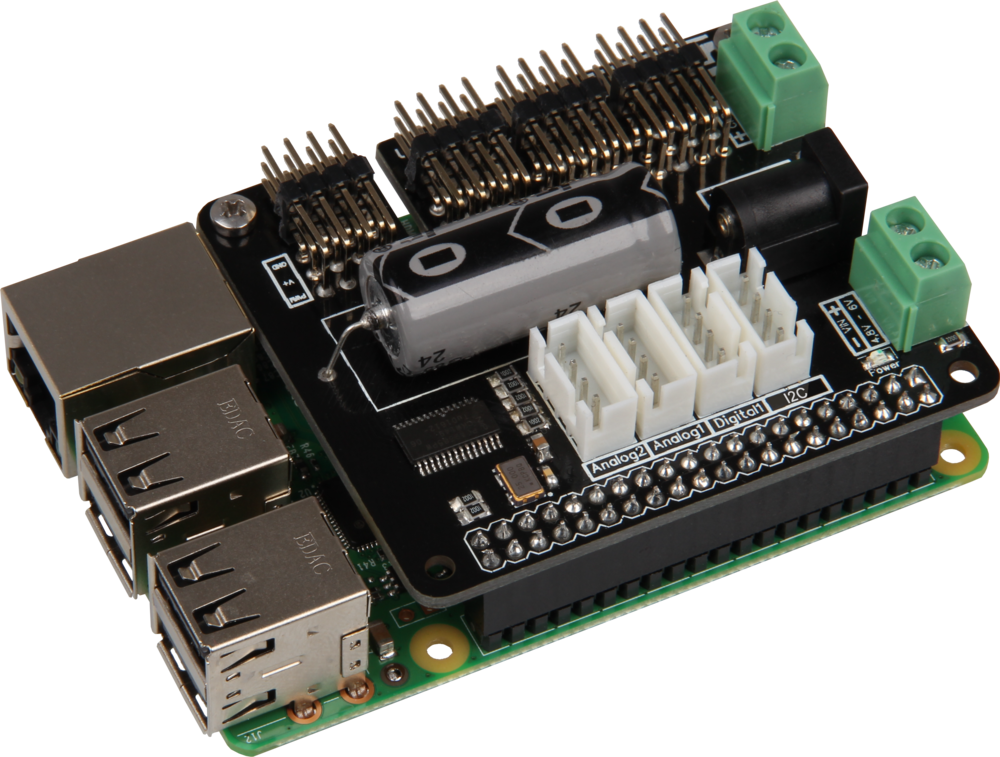

The MotoPi board is an expansion board for controlling and using up to 16 PWM-controlled 5V servo motors. Its own clock on the MotoPI provides a very accurate PWM signal and also a precise positioning.

The built-in capacitor additionally buffers the current. This reduces the collapse of the stress in the event of a brief additional load, which could otherwise lead to jerking. An additional capacitor can also be connected.


The integrated analog-to-digital converter offers new possibilities such as: control via a joystick. The con-trol and programming of the motors can, as usual, continue to be operated conveniently via the Raspberry Pi.

Specifications

Specifications

Model

MotoPi

Input 1

Coaxial Power Connector 5.5 / 2.1mm, 4.8 - 6V, 5A max.

Input 2

Screw Terminal, 4.8 - 6V, 6A max.

Special Features

16 Channels, own clock generator for servo motors (PWM), incl. Analog-Digital converter

Compatible to

Raspberry Pi A+, B+, 2B, 3B, 3B+

Dimensions

65 x 56 x 20 mm

Weight

30 g

Items Shipped

MotoPi, Manual, Mounting Material, Retail Packaging

EAN

4250236814759

Article No.

RB-Moto3

Recommended Products

Grab-it

Grab-it

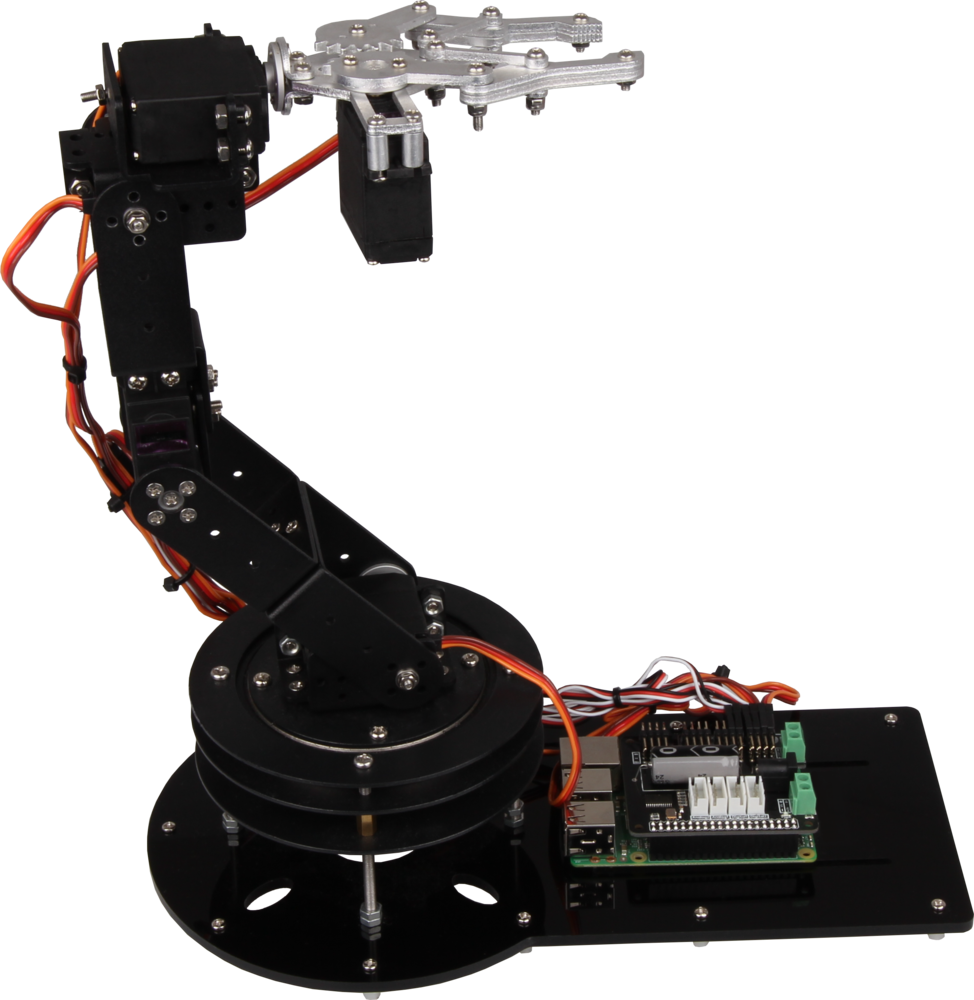

Grab-it robot arm kit for Raspberry PI & Arduino and many more
