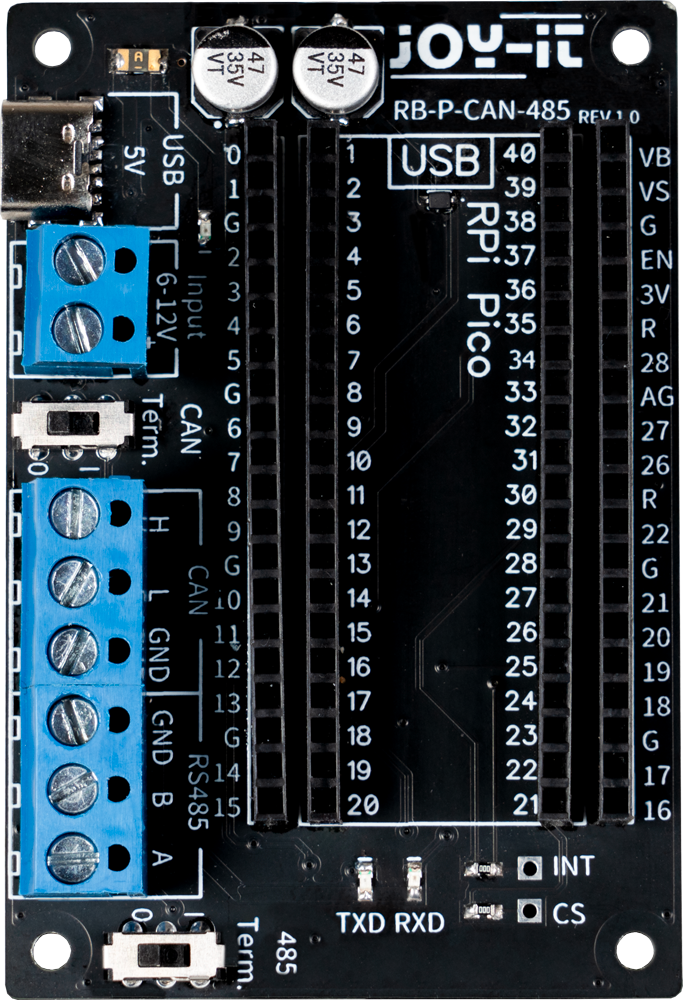

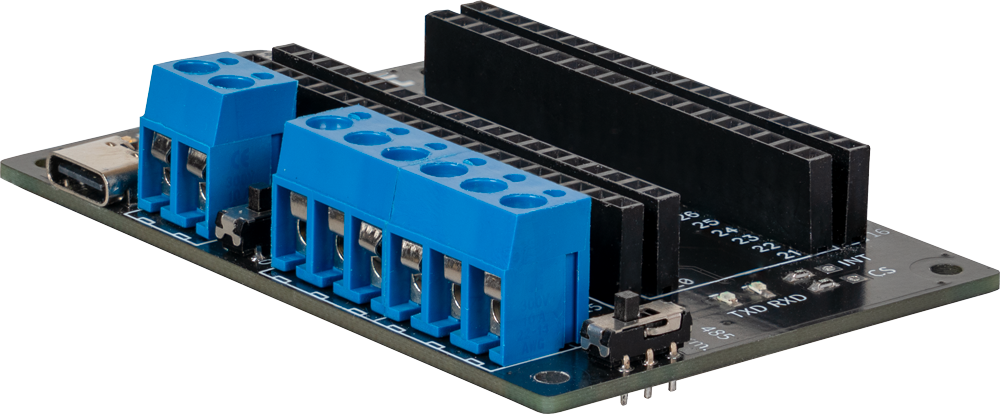

RB-P-CAN-485
This expansion board allows you to add an RS485 and a CAN interface to a Raspberry Pi Pico.
The board also offers the option of operating it either via a standard USB-C connection with 5 V or via a screw terminal that accepts a voltage of 6 to 12 V. The voltage applied to the screw terminal is reduced to 5 V by a voltage converter integrated on the board.
Specifications
Compatible to
Raspberry Pi Pico
Special features
Power can be supplied via a USB-C connection with 5 V or via a screw terminal that
draws between 6 and 12 V. In the latter case, a built-in voltage converter reduces
the voltage to 5 V.
To increase the versatility and range of functions, the connection pins of the Raspberry Pi Pico have been routed to the outside.
The expansion board also offers the option of communication via the RS485 and CAN interfaces.
Interface CAN
SPI, CAN
Interface RS485
Serial, RS485
Supply voltage USB-C
5 V DC
Supply voltage Screw terminal
6 - 12 V DC
Logic level
3,3 V
Operating temperature
0 - +70 °C
Terminating resistor CAN
120Ω, which can be activated and deactivated as required
Terminating resistor RS485
120Ω, which can be activated and deactivated as required
Additional information
Dimensions
74 x 50 x 17 mm
Weight
32 g
